Xerox B210 Service Manual

July 2019
xi
Xerox® B210 Service Manual
Translation of Warnings, Tag Usage
Introduction
Initial Release
WARNING
Use only Xerox materials and components. This product is safety certified using Xerox
materials and components. The use of non Xerox materials and components may invali-
date the safety certificate.
DANGER : N'utilisez que des matières premières et des composants Xerox. La sécurité
d
u produit est assurée dans le cadre de son utilisation avec des matières premières et
des composants Xerox. L'utilisation de matières premières et de composants autres
que ceux de Xerox risque d'invalider le certificat de sécurité.
AVVERTENZA: Utilizzare solo materiali e componenti Xerox per avvalersi della certifica-
zione di protezione. L'utilizzo di materiali e componenti non Xerox può rendere nulla la
c
ertificazione di protezione.
VORSICHT: Verwenden Sie nur Materialien und Komponenten von Xerox. Dieses
P
rodukt besitzt die Sicherheitszertifizierung bei Verwendung von Xerox-Materialien und
-Komponenten. Die Verwendung von Materialien und Komponenten anderer Hersteller
setzt möglicherweise das Sicherheitszertifikat außer Kraft.
AVISO: Utilice solo los materiales y componentes Xerox. Este producto dispone de un
cer
tificado de seguridad si se utilizan los materiales y componentes Xerox. Este certifi-
cado de seguridad no será válido si se utilizan materiales y componentes que no sean
de
Xerox.
WARNING
Do not touch the fuser while it is hot.
DANGER : Ne pas toucher au four pendant qu'il est encore chaud.
AVVERTENZA: Non toccare il fonditore quando è caldo.
VORSICHT: Fixierbereich erst berühren, wenn dieser abgekühlt ist.
AVISO: No toque el fusor mientras está caliente.
Tag Usage
Tags
If different parts or actions exist because of a modification, the Tag number will identify the
appropriate part or action.
• Example 1). Tag xx: PWB. . .
• Example 2) PWB (Tag xx) . . .

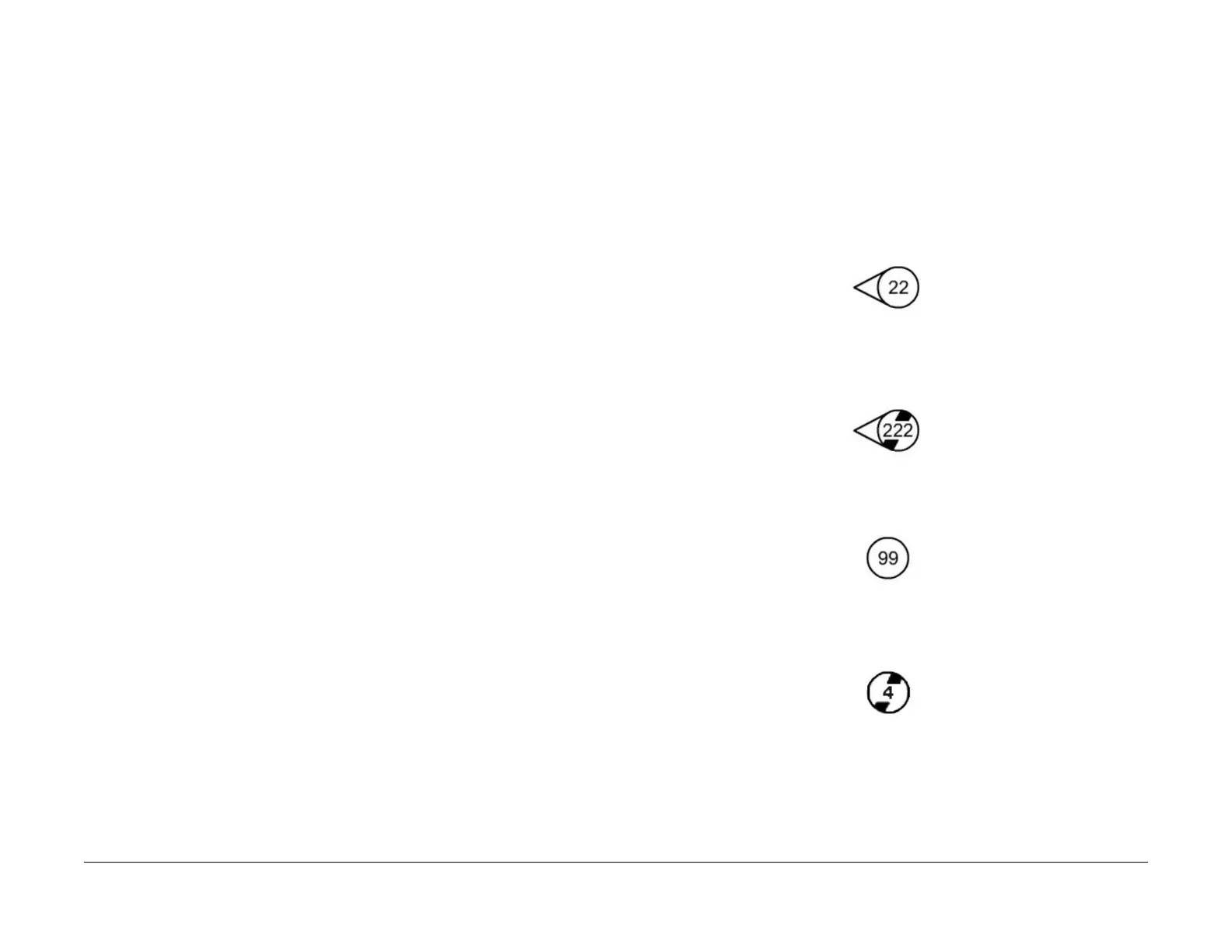

Tag Symbols
This symbol is used to show a particular part or area of a figure that has been modified by the
Tag number within the circle.
This symbol is used to show a particular part or area of
a figure that has not been modified by
the Tag number within the circle.
This symbol is used to show a Tag change has modified an area of the terminal.
This symbol is used to show a Tag change has not modified an area of the terminal.

Xerox B210 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Printing colors	Black
Country of origin	China
Maximum duty cycle	30000 pages per month
Number of print cartridges	1
Page description languages	PCL 5, PCL 6, PostScript 3, XPS
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Custom media width	105 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	149 - 356 mm
Paper tray media types	-
Paper tray media weight	60 - 163 g/m²
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Preprinted forms, Thicker paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
USB connector	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Internal memory	256 MB
Processor frequency	600 MHz
Maximum internal memory	- MB
Sound pressure level (printing)	- dB
Sustainability certificates	ENERGY STAR
Certification	EPEAT
Product color	Black, White
Market positioning	Business
Power consumption (standby)	46 W
Power consumption (printing)	- W
Power consumption (PowerSave)	2 W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Package weight	10000 g
Cables included	AC
Included cartridge capacity (black)	1500 pages
Compatibility	Xerox B210
Recommended monthly print volume	4000 pages
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	420 mm
Width	460 mm
Height	350 mm
Weight	7560 g
