July 2019
4-13
Xerox® B210 Service Manual
REP 4.1
Repairs - Adjustments
Initial Release
REP 4.1 HVPS (High Voltage Power Supply)
Parts List on PL 4.1
Removal
WARNING
Do not perform repair activities with the power on or electrical power supplied to the
machine. Some machine components contain dangerous electrical voltages that can
result in electrical shock and possible serious injury.
DANGER: Ne pas effectuer de dépannnage avec le contact principal activé ou avec l'ali-
mentation électrique appliquée à la machine. Certains éléments de la machine compor-
tent des tensions électriques dangereuses qui peuvent causer un choc électrique et de
g
raves blessures.
AVVERTENZA: Non effettuare alcuna riparazione con l'alimentazione elettrica inserita.
Al
cuni componenti contengono corrente ad alta tensione che può provocare forti
scosse e gravi ferite.
VORSICHT: Es dürfen erst Reparaturarbeiten durchgeführt werden, wenn das Gerät aus-
geschaltet ist oder der Netzstecker nicht mehr mit der Stromquelle verbunden ist.
E
inige Komponenten des Gerätes sind stromführend und können daher zu ernsthaften
Verletzungen oder Stromschlägen führen.
AVISO: No realice reparaciones con la máquina encendida o conectada a la corriente.
Al
gunos componentes de la máquina contienen voltajes eléctricos peligrosos que
pueden producir una descarga eléctrica y causar daños graves.
1. Switch off the machine, then disconnect the power cord.
2. Remove the Right Side Cover, RE
P 2.2.
NOTE: When removing the HVPS PWB be careful not to lose the spring loaded contacts
between the Print Cartridge and the HVPS PWB.
3. Remove the HVPS PWB, F
igure 1:
a. Disconnect three connectors and the FFC on the HVPS PWB.
b. Remove six screws including the ground wire, then remove the HVPS PWB.

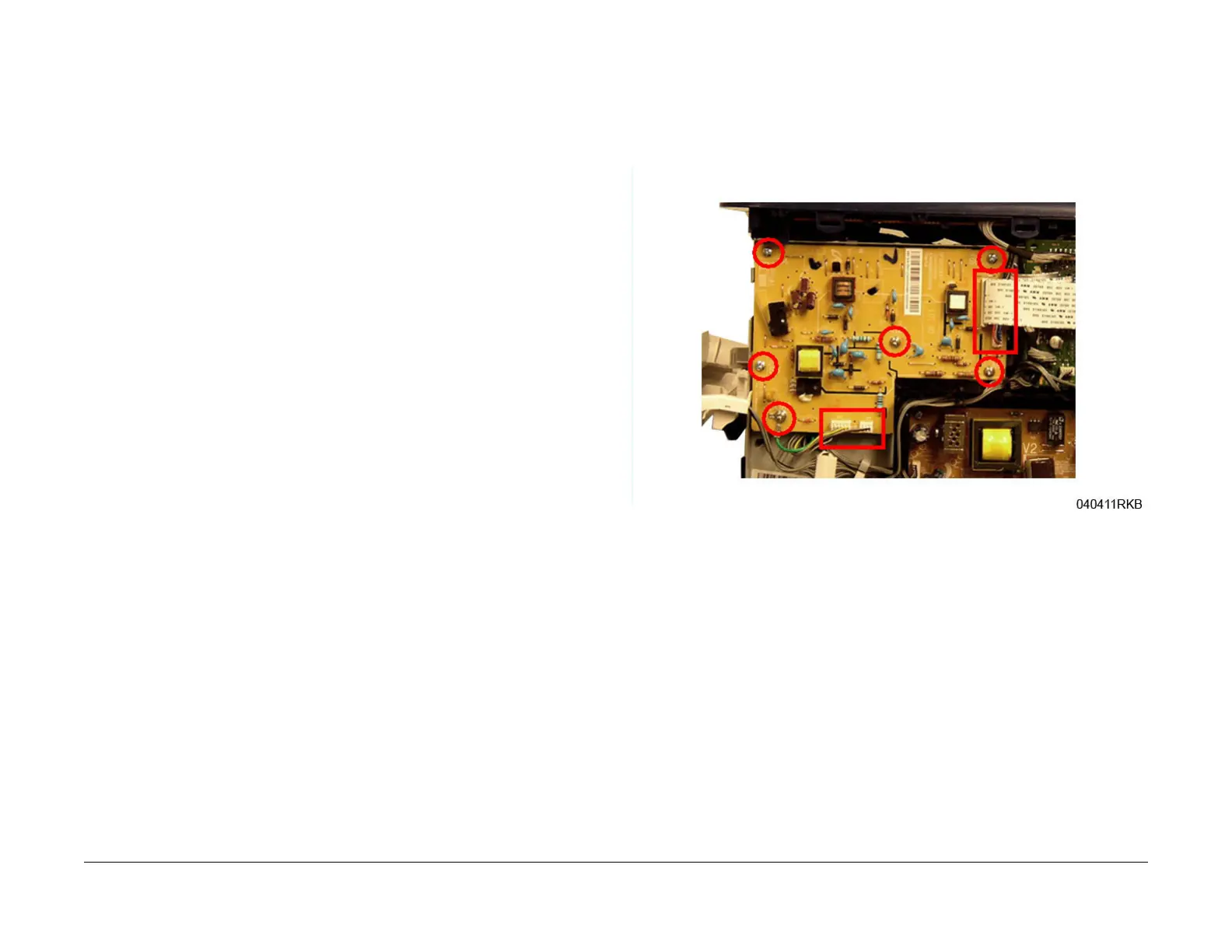

Figure 1 HVPS PWB
Replacement
Replacement is the reverse of the removal procedure.
