July 2019
4-39
Xerox® B210 Service Manual
REP 4.16
Repairs - Adjustments
Initial Release
REP 4.16 Feed Idler Gear
Parts List on PL 4.6
Removal
1. Switch off the machine, then disconnect the power cord.
2. Remove the Left Side Cover, RE
P 2.2.
3. Remove the Feed Clutch and Drive Gear, Figure 1:
a. Remove the E-ring and Washer from the Feeder Clutch.
b. Remove the Feeder Clutch and Drive Gear.

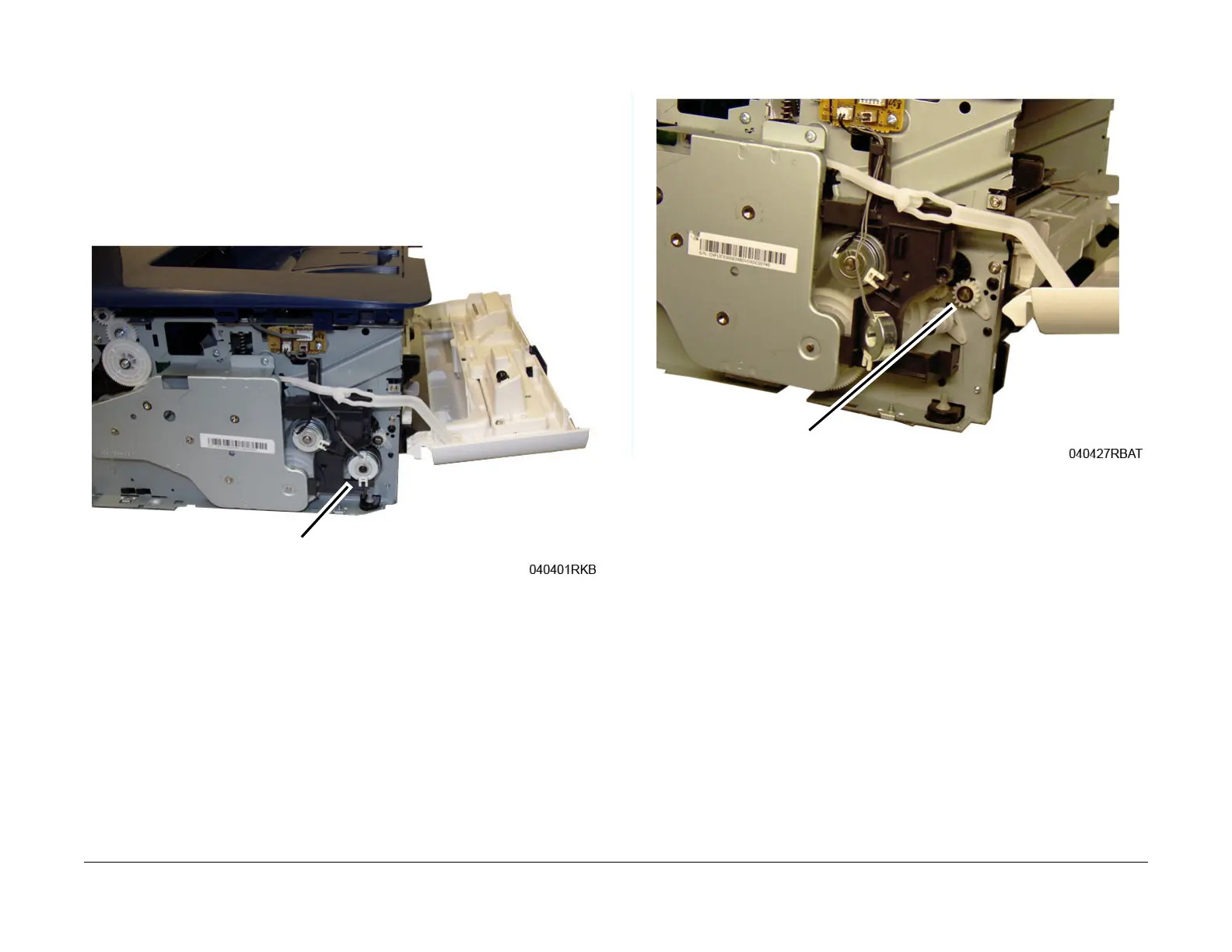

Figure 1 Feed Clutch Removal
4. Remove the snap-ring, then remove the Idler Gear, F
igure 2.
Figure 2 Feed Idler Gear
Replacement
Replacement is the reverse of the removal procedure.
