Xerox® B210 Service Manual
REP 1.1
Repairs - Adjustments
Initial Release
REP 1.1 Main PWB
Parts List on PL 1.1
Removal
WARNING
Do not perform repair activities with the power on or electrical power supplied to the
machine. Some machine components contain dangerous electrical voltages that can
result in electrical shock and possible serious injury.
DANGER: Ne pas effectuer de dépannnage avec le contact principal activé ou avec l'ali-
mentation électrique appliquée à la machine. Certains éléments de la machine compor-
tent des tensions électriques dangereuses qui peuvent causer un choc électrique et de
g
ra
ves blessures.
AVVERTENZA: Non effettuare alcuna riparazione con l'alimentazione elettrica inserita.
Alc
uni componenti contengono corrente ad alta tensione che può provocare forti
scosse e gravi ferite.
VORSICHT: Es dürfen erst Reparaturarbeiten durchgeführt werden, wenn das Gerät aus-
geschaltet ist oder der Netzstecker nicht mehr mit der Stromquelle verbunden ist.
E
in
ige Komponenten des Gerätes sind stromführend und können daher zu ernsthaften
Verletzungen oder Stromschlägen führen.
AVISO: No realice reparaciones con la máquina encendida o conectada a la corriente.
Al
guno
s componentes de la máquina contienen voltajes eléctricos peligrosos que
pueden producir una descarga eléctrica y causar daños graves.
1. Record the machine serial number from the Data Plate (located on the rear cover beneath
the
bar code) or from a Configuration Report printed prior to installing the new PWB. To
print a Configuration Report, select from the PWS; [Easy Print Manager, Machine Set-
ting, Print Information, Configuration].
NOTE: Verify the serial number on the Data Plate and the Configuration sheet match. T
he
Data
Plate serial number will be the correct serial number in all cases.
2. Switch off the machine, then disconnect the power cord.
3. Remove the Right Side Cover, REP
2.2.
4. Remove the WNPC (WiFi) PWB, RE
P 1.2.
NOTE: Mark
the location of the Ground Screw, with larger head, so it can be re-installed in the
correct location.
5. Remove the Main PWB, Fi
gure 1.
a. Disconnect all connectors on the Main PWB.
b
. Remove the screws (5) and the Main PWB.

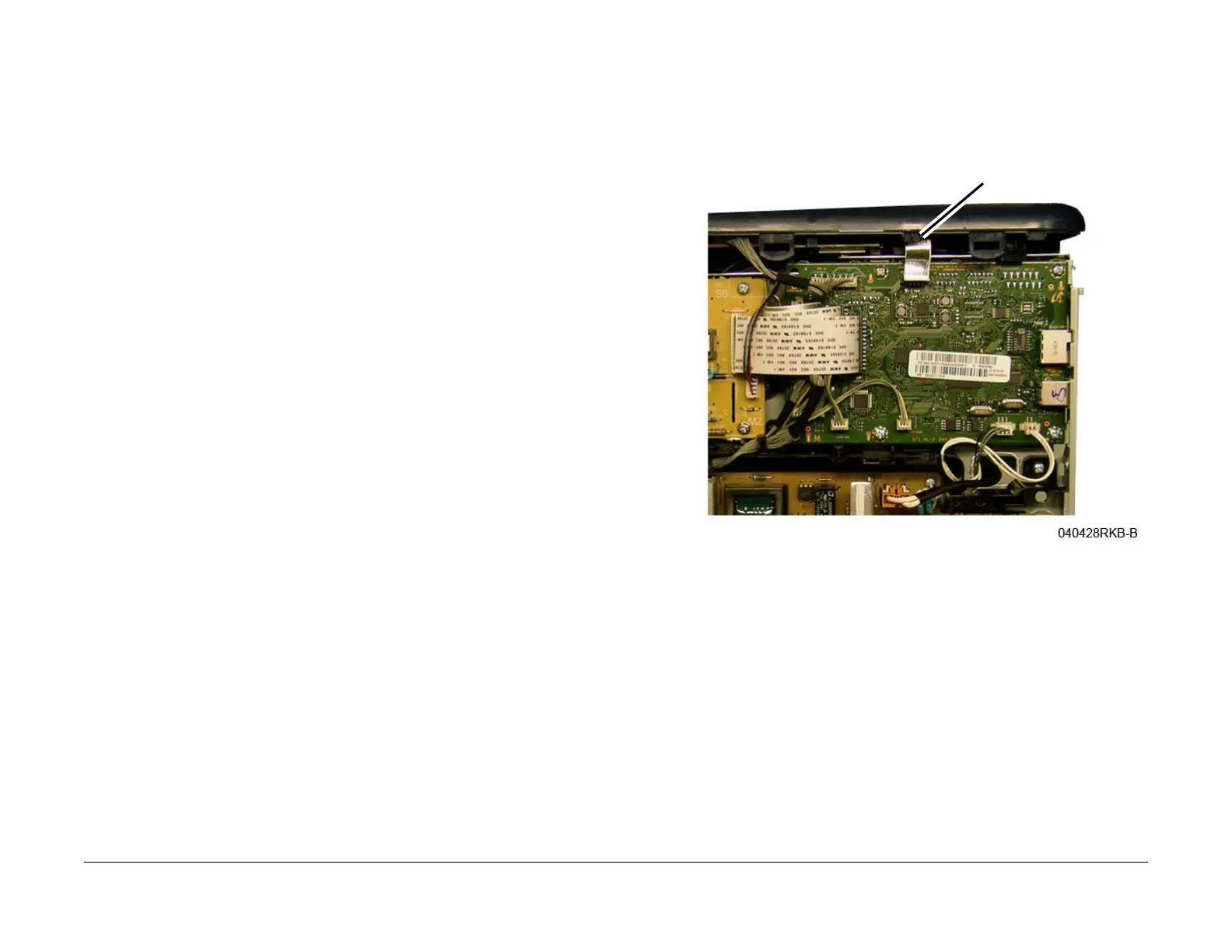

Figure 1 Main PWB
Replacement
NOTE: Tapered plastic screws and round machine screws are used to hold the pwb to the
frame. Make sure that the plastic screws go into plastic components and machine screws go
into the metal frame.
Replacement is the reverse of the removal procedure.
After installing a new Main PWB, the following steps MUST be performed to write the machine
seri
al number to the new Main PWB:
1. Reconnect the power cord, then power on the machine.
2. Connect the PWS to the printer via USB connection.
To Next Page
