July 2019
4-9
Xerox® B210 Service Manual
REP 2.2, REP 2.3
Repairs - Adjustments
Initial Release
NOTE: The side covers are held in place with plastic latches, release them carefully to
avoid breakage. Release the latches pressing the hook end of the latch away from the
part, Figure 2.

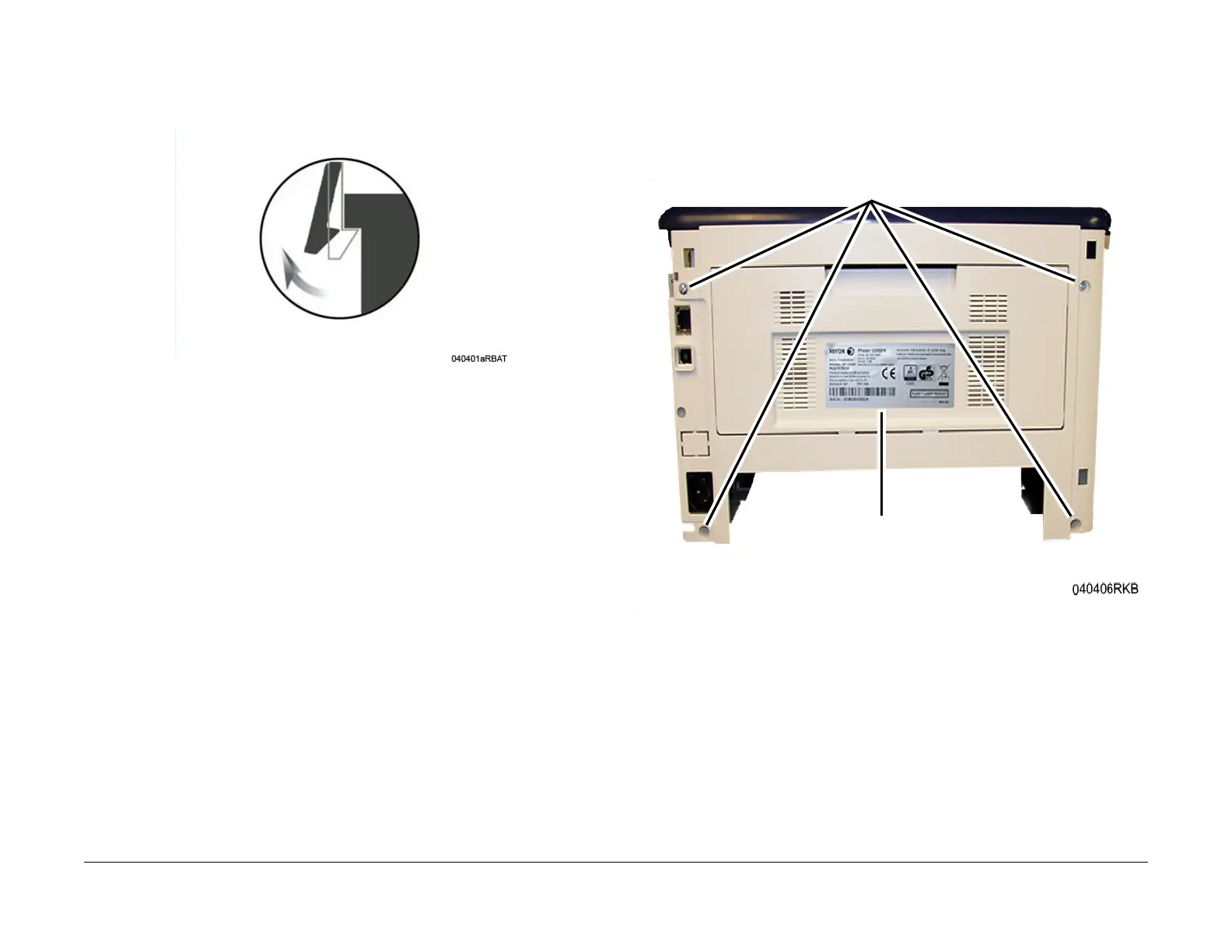

Figure 2 Plastic Latches
Replacement
Replacement is the reverse of the removal procedure.
REP 2.3 Rear Cover
Parts List on PL 2.1
Removal
1. Remove the Left and Right Side Covers, REP 2.2.
2. Remove four screws securing the Rear Cover, Figure 1.
Figure 1 Rear Cover Screws and Data Plate Label
To Next Page
