Xerox B210 Service Manual

July 2019
4-8
Xerox® B210 Service Manual
REP 2.1, REP 2.2
Initial Release
Repairs - Adjustments
Replacement
Replacement is the reverse of the removal procedure.
REP 2.2 Left and Right Side Covers
Parts List on PL 2.1
Removal
1. Remove the Paper Cassette from the printer.
NOTE: Cover the Drum Cartridge with several sheets of paper to prevent it from being light
shoc
ked.
2. Open the Front Cover, remove the Toner Cartridge and the Drum Cartridge, F
igure 1.

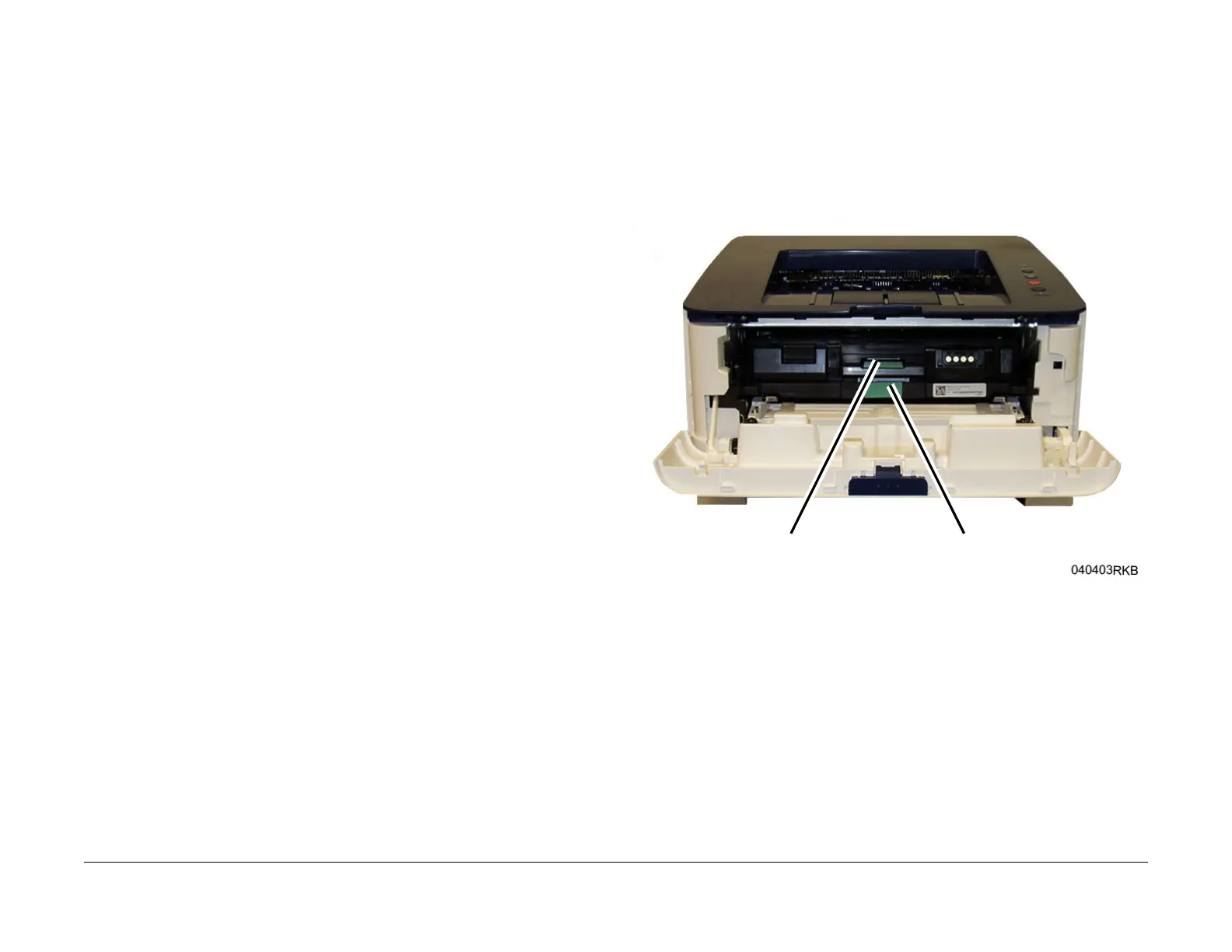

Figure 1 Toner Cartridge and Photoreceptor Handles
3. Remove the Right Side Cover. See NOTE, F
igure 2.
a. Release (pull) the upper front latch hook.
b. Release the top latch hooks then the bottom latch hooks.
c. Release the front lower latch hook, and remove the cover.
4. Remove the Left Side Cover. See NOTE, F
igure 2.
a. Release (pull) the center front latch hook.
b. Release the top latch hooks then the bottom latch hooks.
c. Release the rear latch hook, and remove the cover.
Drum Cartridge
Toner Cartridge

Xerox B210 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Printing colors	Black
Country of origin	China
Maximum duty cycle	30000 pages per month
Number of print cartridges	1
Page description languages	PCL 5, PCL 6, PostScript 3, XPS
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Custom media width	105 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	149 - 356 mm
Paper tray media types	-
Paper tray media weight	60 - 163 g/m²
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Preprinted forms, Thicker paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
USB connector	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Internal memory	256 MB
Processor frequency	600 MHz
Maximum internal memory	- MB
Sound pressure level (printing)	- dB
Sustainability certificates	ENERGY STAR
Certification	EPEAT
Product color	Black, White
Market positioning	Business
Power consumption (standby)	46 W
Power consumption (printing)	- W
Power consumption (PowerSave)	2 W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Package weight	10000 g
Cables included	AC
Included cartridge capacity (black)	1500 pages
Compatibility	Xerox B210
Recommended monthly print volume	4000 pages
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	420 mm
Width	460 mm
Height	350 mm
Weight	7560 g
