July 2019
5-13
Xerox® B210 Service Manual
PL 5.1
Parts List
Initial Release

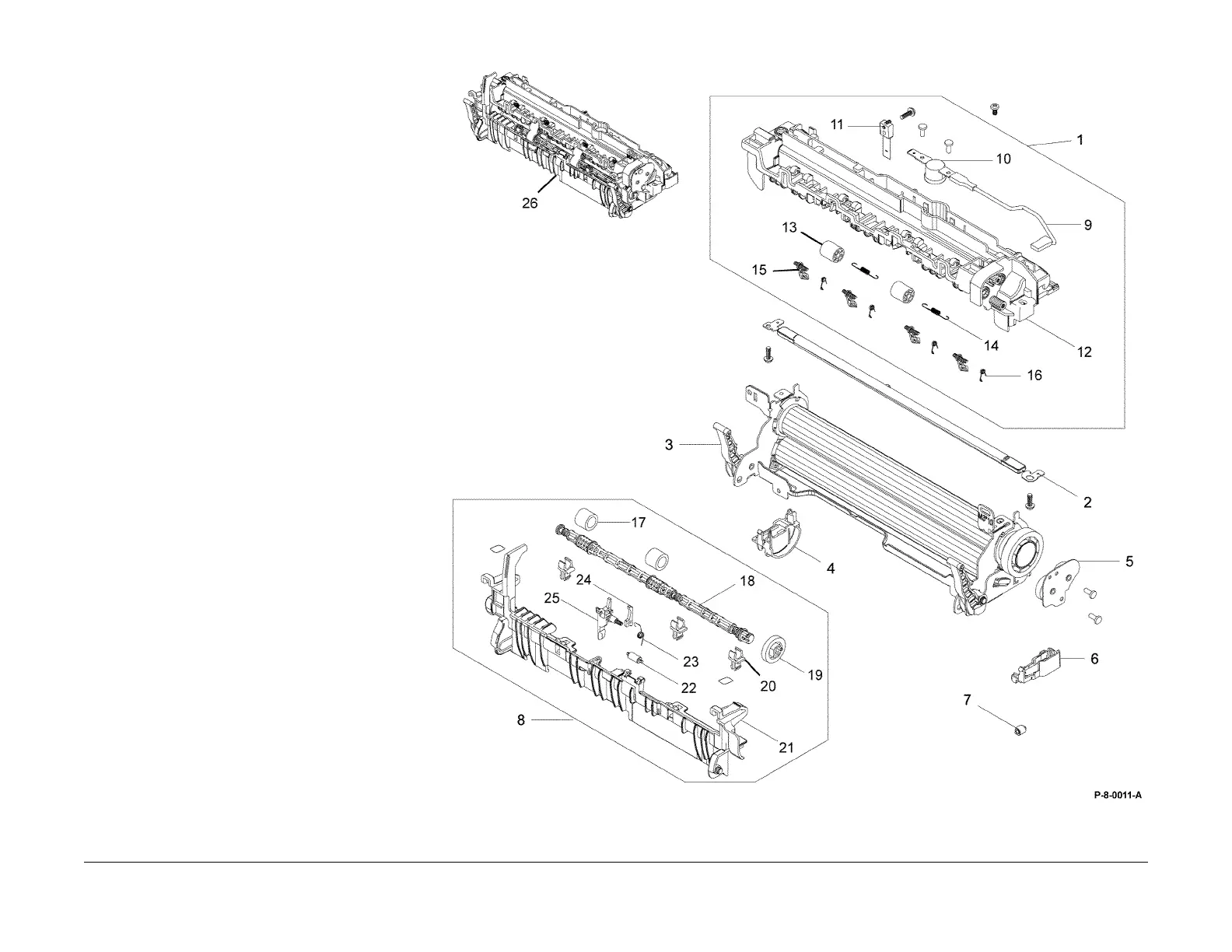

PL 5.1 Fuser
Item Part Description
1 Upper Fuser
2 Fuser Lamp
3 Lower Fuser
4 Right Lamp Cap
5 Fuser Exit Drive
6 Left Lamp Cap
7 Fuser Gear Stopper
8 Fuser Rear
9 Fuser Joint Harness
10 Thermostat
11 Thermistor
12 Fuser Cover
13 –Exit Roller
14 –Spring
15 –Guide
16 –Spring
17 –Exit Roller
18 Exit Shaft
19 Exit Gear
20 Bushing
21 Rear Guide
22 Exit Idle Roller
23 –Spring
24 Actuator Holder
25 Exit Sensor Actuator
26 126N00430 Fuser Module (110V) (RE
P 5.1)
126N00431 Fuser Module (220V) (RE
P 5.1)
