Xerox B210 - IQ10 Side 2 Staining; IQ9 Residual Image (Ghosting) RAP

July 2019
3-9
Xerox® B210 Service Manual
IQ9, IQ10
Image Quality
Initial Release
IQ9 Residual Image (Ghosting) RAP
The image from a previous print appears on the current print, Figure 1.
Procedure
Switch off the machine.
Check the Transfer Roll, PL 4.
1 Item 10 for the following:
• Wear or damage.
• The left and right tension springs for damage.
• Be sure all parts are installed correctly.
The Transfer Roller is OK.
YN
Install a new Transfer Roll, PL
4.1 Item 10.
If fault persists, install new components in the following order:
Refer to the Xerox® B210 User Guide, Section 6 Maintenance, General Care, for detailed
inst
ructions on how to Install a new Toner Cartridge or Drum Cartridge.
1. Drum Cartridge
2. Toner Cartridge
3. Fuser Module, P
L 5.1 Item 26.
4. HVPS PWB, PL 4.1 Item 2.

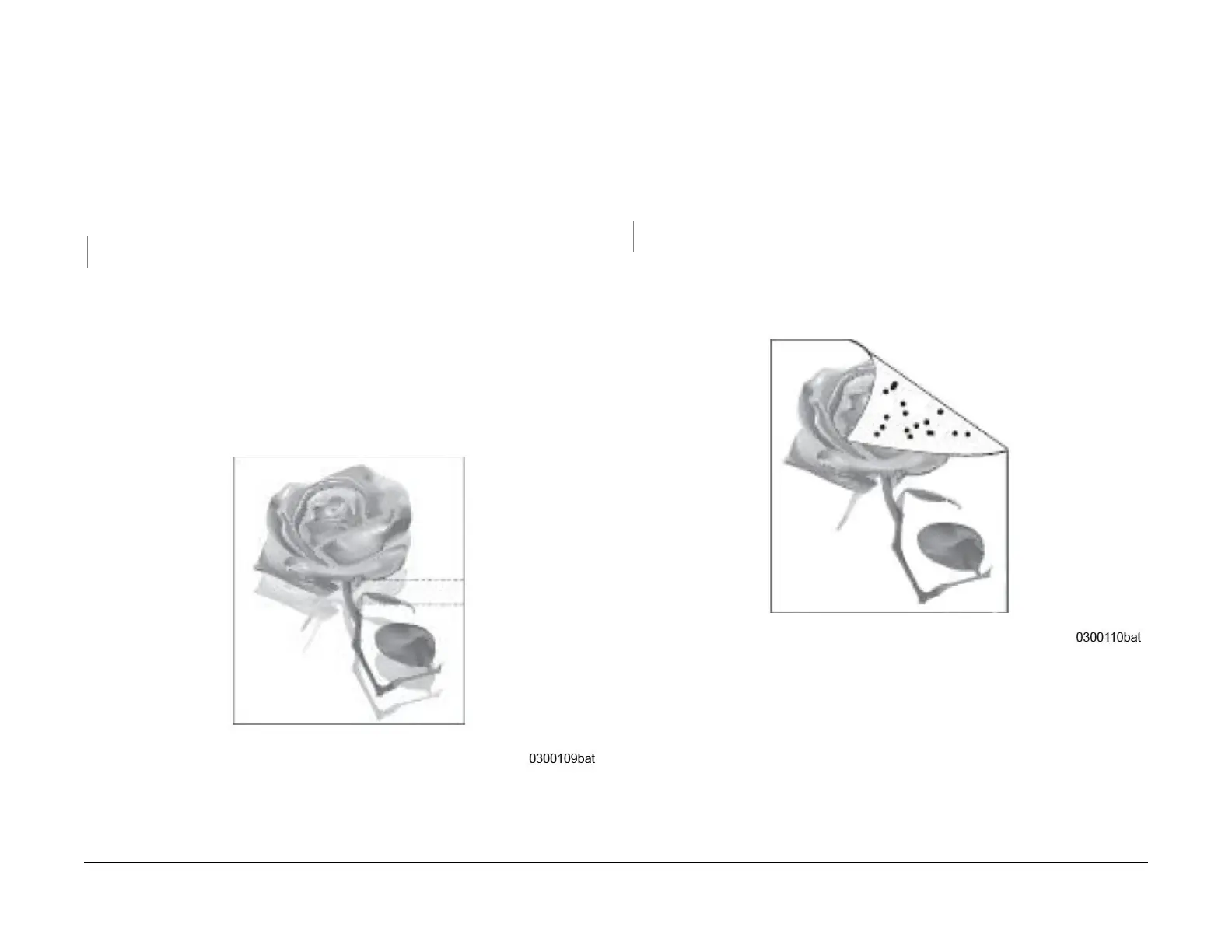

Figure 1 Ghost Image
IQ10 Side 2 Staining
Side 2 of a simplex or duplex print is stained, Figure 1.
Procedure
Switch off the machine. Check the Transfer Roll, PL 4.1 Item 10 for the following:
• Wear or damage.
• The left and right tension springs for damage.
• Be sure all parts are installed correctly.
The Transfer Roller is OK.
YN
Install a new Transfer Roll, P
L 4.1 Item 10.
If fault persists, Install a new Fuser Module, P
L 5.1 Item 26.
Figure 1 Side 2 Staining
