July 2019
4-34
Xerox® B210 Service Manual
REP 4.14
Initial Release
Repairs - Adjustments
REP 4.14 Paper Feed Roll Assembly
Parts List on PL 4.4
Removal
1. Switch off the machine, then disconnect the power cord.
2. Remove the Paper Cassette.
3. Remove the Left and Right Side Covers, R
EP 2.2.
4. Set the printer on the back, front of the printer facing up.
5. Remove two screws, then remove the Bottom Bar, F
igure 1.

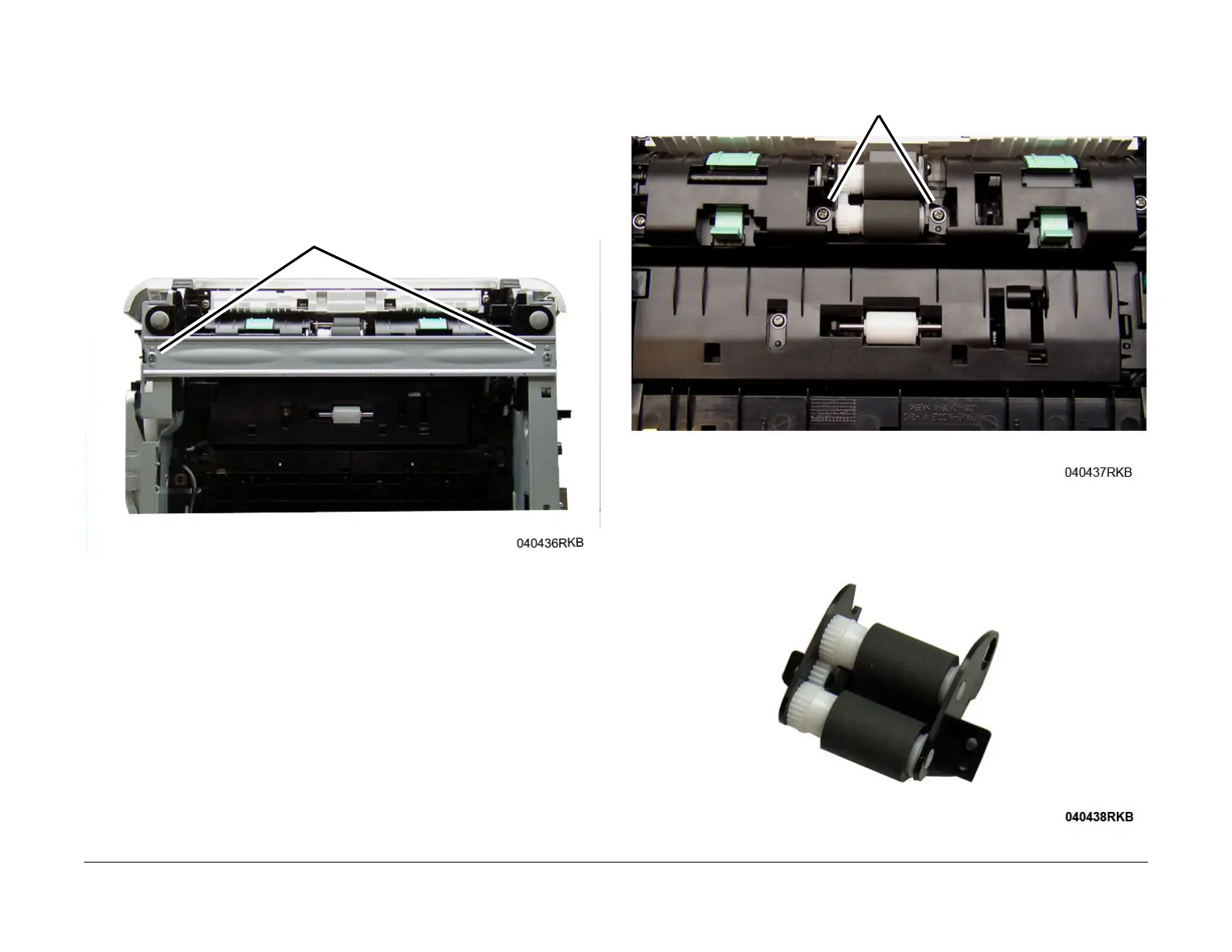

Figure 1 Removing the Bottom Bar (Bottom View)
6. Remove two screws, pull the right-side of the Paper Feed Roll Assembly out, then
slide
t
he Paper Feed Roll Assembly right and remove, Figure 2
.
Figure 2 Paper Feed Roll Assembly removal (Bottom View)
7. Remove the Retard Rolls from the assembly, F
igure 3.
Figure 3 Retard Rolls removal
To Next Page
