Xerox® B210 Service Manual
REP 4.12, REP 4.13
Repairs - Adjustments
Initial Release
6. Release the exit sensor harness from the harness guide, then remove the Exit Sensor,
Figure 2
.

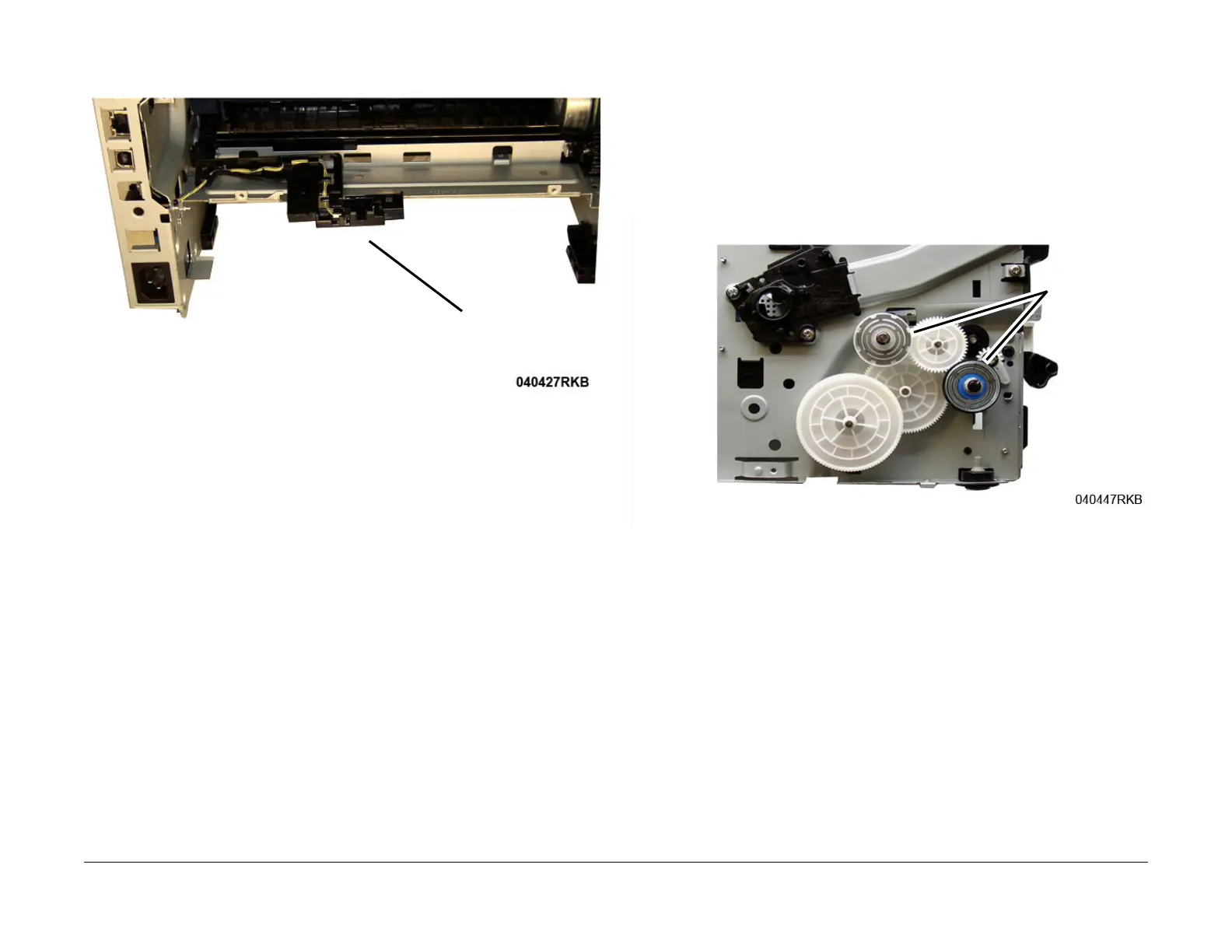

Figure 2 Exit Sensor Removal (Rear View)
Replacement
Replacement is the reverse of the removal procedure.
REP 4.13 Paper Drive Roll
Parts List on PL 4.5
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Top Cover, RE
P 3.2.
3. Remove the Main Drive Unit, REP 4.17.
4. Remove the Feed and Registration Clutches, REP 4.3.
5. Remove the Feed and Registration Clutch Drive Gears, Figure 1.
Figure 1 Feed and Registration Clutch Drive Gears
Exit Sensor
Clutch Drive
Gears
