July 2019
4-10
Xerox® B210 Service Manual
REP 2.3, REP 2.4
Initial Release
Repairs - Adjustments
3. Open the Rear Cover, then release two Support Arms from the Rear Cover, Figure 2.

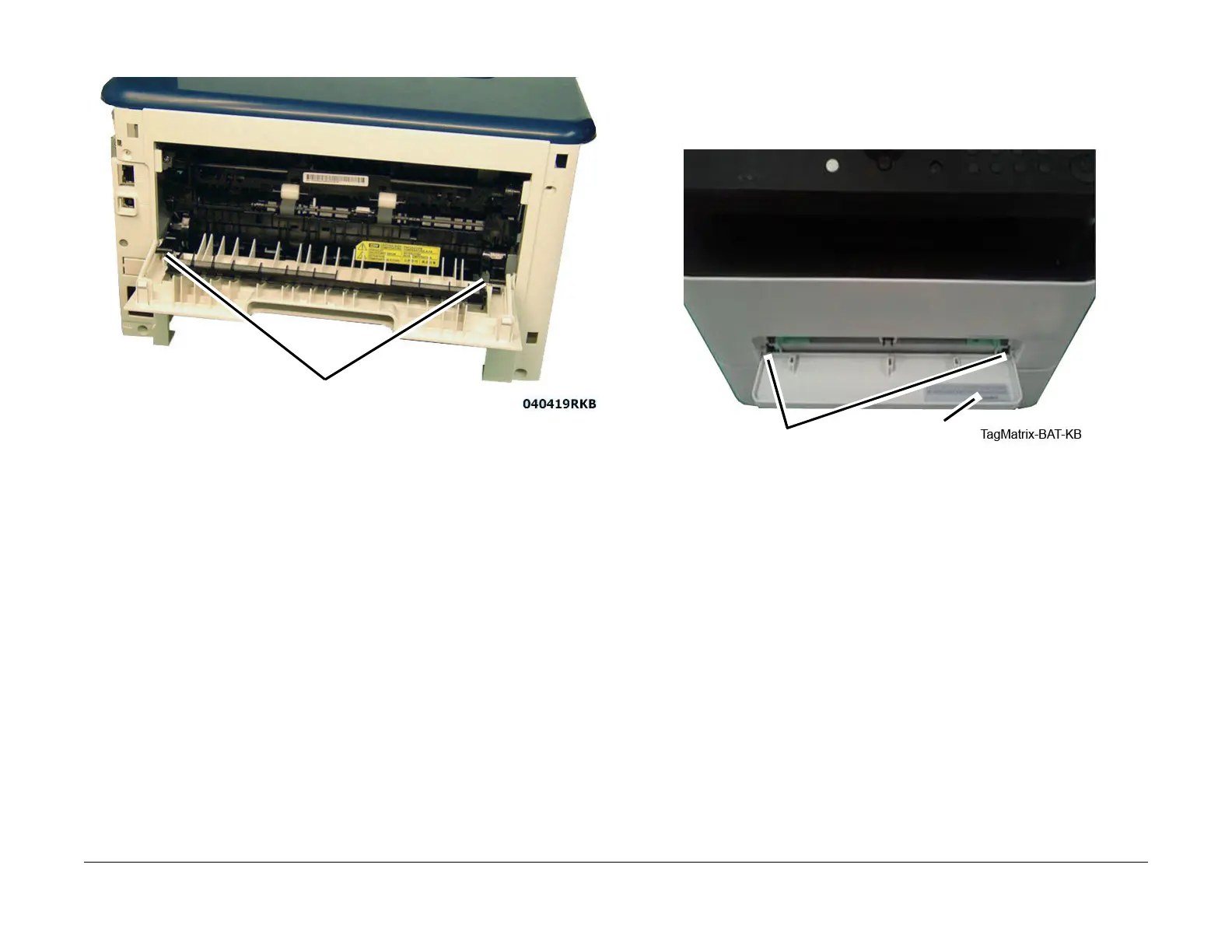

Figure 2 Releasing the Support Arms
4. Push down on the top of the Rear Cover to release three Latch Hooks, then remove t
he
Rear Co
ver.
Replacement
Replacement is the reverse of the removal procedure.
NOTE: If the Rear Cover is being replaced, remove the Data Plate Label from the old Rear
Cover and i
nstall it onto the new Rear Cover, Figure 1.
REP 2.4 Manual Feed Cover
Parts List on PL 2.1
Removal
1. Release two pivot pins, then remove the Manual Feed Cover, Figure 1.
Figure 1 Manual Feed Cover (Top View)
Replacement
Replacement is the reverse of the removal procedure.
NOTE: Replacement of the Manual Feed Cover requires removal of the Tag Matrix from the
old c
over, then installation of the Tag Matrix on the new Manual Feed Cover, Figure 1.
