July 2019
3-8
Xerox® B210 Service Manual
IQ7, IQ8
Initial Release
Image Quality

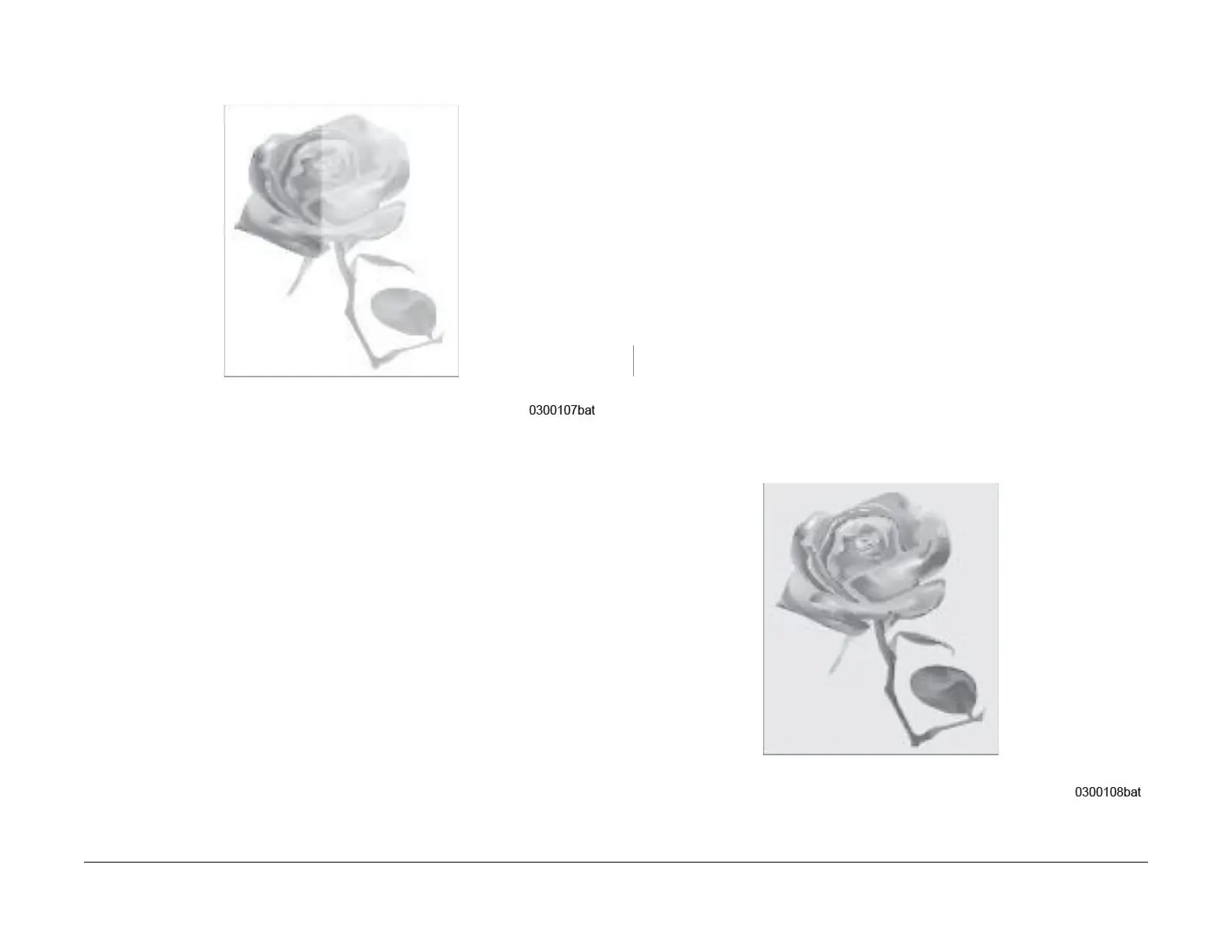

Figure 1 Uneven Density
IQ8 Background RAP
Uniform toner contamination appears in most or all non-image areas of the printed sheet, Fig-
ure 1.
Initial Actions
• Check that media type settings are correct.
• Check that the paper meets specifications. Ref
er to Section 6 for product specifications.
Procedure
• Switch off the machine.
• Clean the contacts on the Drum Cartridge, Toner Cartridge, and the HVPS PWB, PL 4.
1
It
em 2
.
• Check the life of the Toner Cartridge and Drum Cartridge, refer to GP 2, Machine Reports.
– Install a new Toner Cartridge and/or Drum Car
tridge if they have reached end of life.
Refer to Tabe 5 in Section 6, Product Specifications, for toner cartridge specifica-
tions.
• Switch on the power, then make a test print.
The test print looks OK.
YN
Install a new HVPS PWB, PL
4.1 Item 2.
Perform SC
P 04, Final Actions.
Figure 1 Background
