July 2019
3-5
Xerox® B210 Service Manual
IQ3, IQ4
Image Quality
Initial Release
IQ3 Horizontal Black Bands RAP
Periodic dark of blurry horizontal stripes in the printed image. Refer to, Figure 1.
Procedure
• Switch off the machine.
• Clean the contacts on the Print Cartridge and the HVPS PWB, PL
4.1 Item 2.
• Switch on the machine, then print a test print.
The defect is still present.
YN
Perform SC
P 04, Final Actions.
Refer to the Xerox® B210 User Guide, Section 6 Maintenance, General Care, for detailed
inst
ructions on how to Install a new Toner and Drum Cartridges.
• Install a new Drum Cartridge.
• Install a new Toner Cartridge.

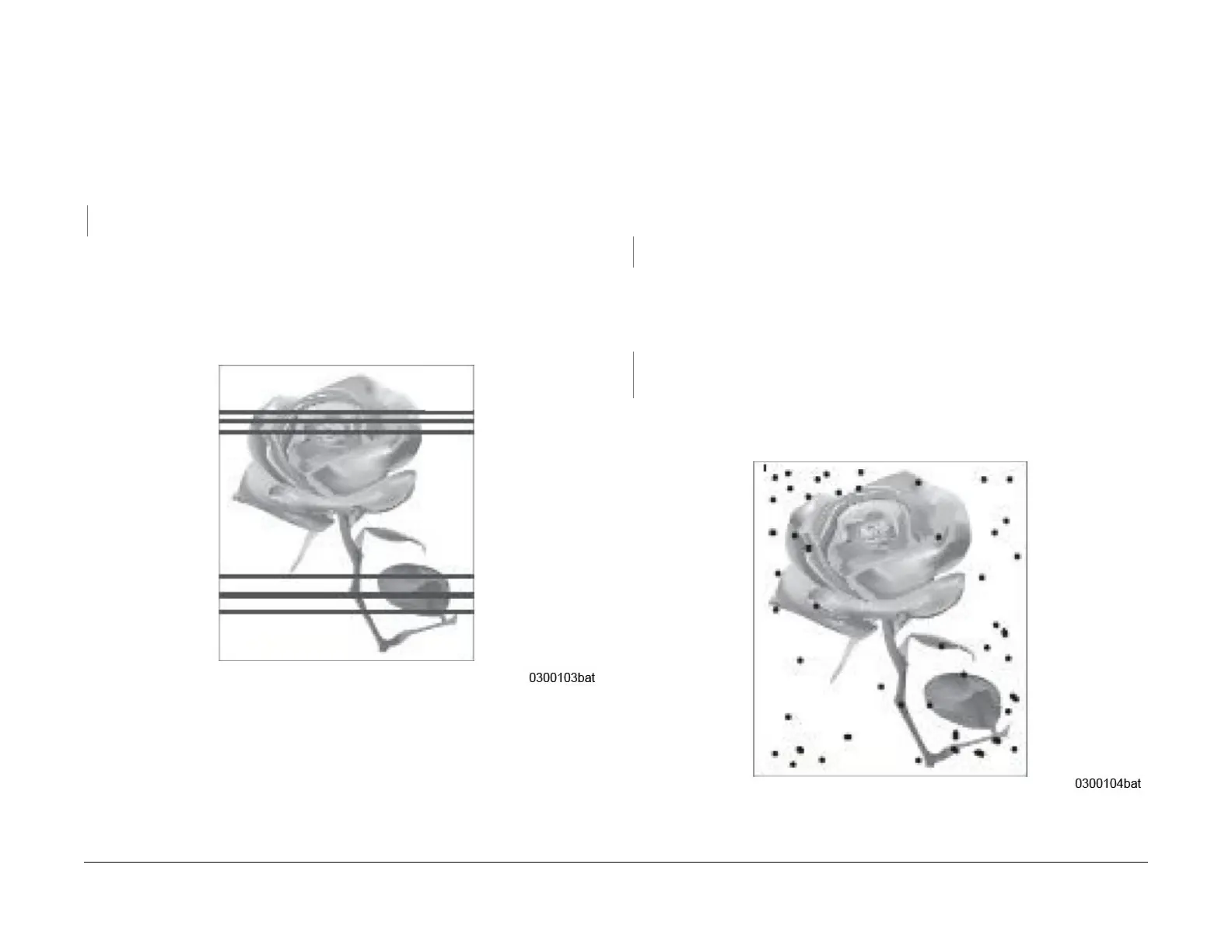

Figure 1 Horizontal black bands
IQ4 Spots RAP
Random or periodic dark areas in the low density areas of a print, or voids in the dark areas of
a print, Figure 1.
Initial Actions
Ensure that the Drum Cartridge and the Toner Cartridge is firmly seated.
Procedure
Switch off the machine.
Check the Transfer Roller for wear, damage and remaining life. The Transfer Roller is OK.
YN
Install a new Transfer Roll, P
L 4.1 Item 10.
Clean the contacts on the following components:
• Drum Cartridge and the Toner Cartridge
• HVPS PWB, P
L 4.1 Item 2.
Switch on the power, then make a test print. The test print looks OK.
YN
Install a new Toner Cartridge. Refer to the Xerox® B210 User Guide, Section 6 Mainte-
nance, General Care, for detailed instructions on how to Install a new Toner Cartridge.
If fault persists, install a new Fuser Module, PL 5.
1 Item 26.
Figure 1 Black spots
To Next Page
