Xerox B210 - Media Output Locations

July 2019
5-8
Xerox® B210 Service Manual
PL 4.3
Initial Release
Parts List

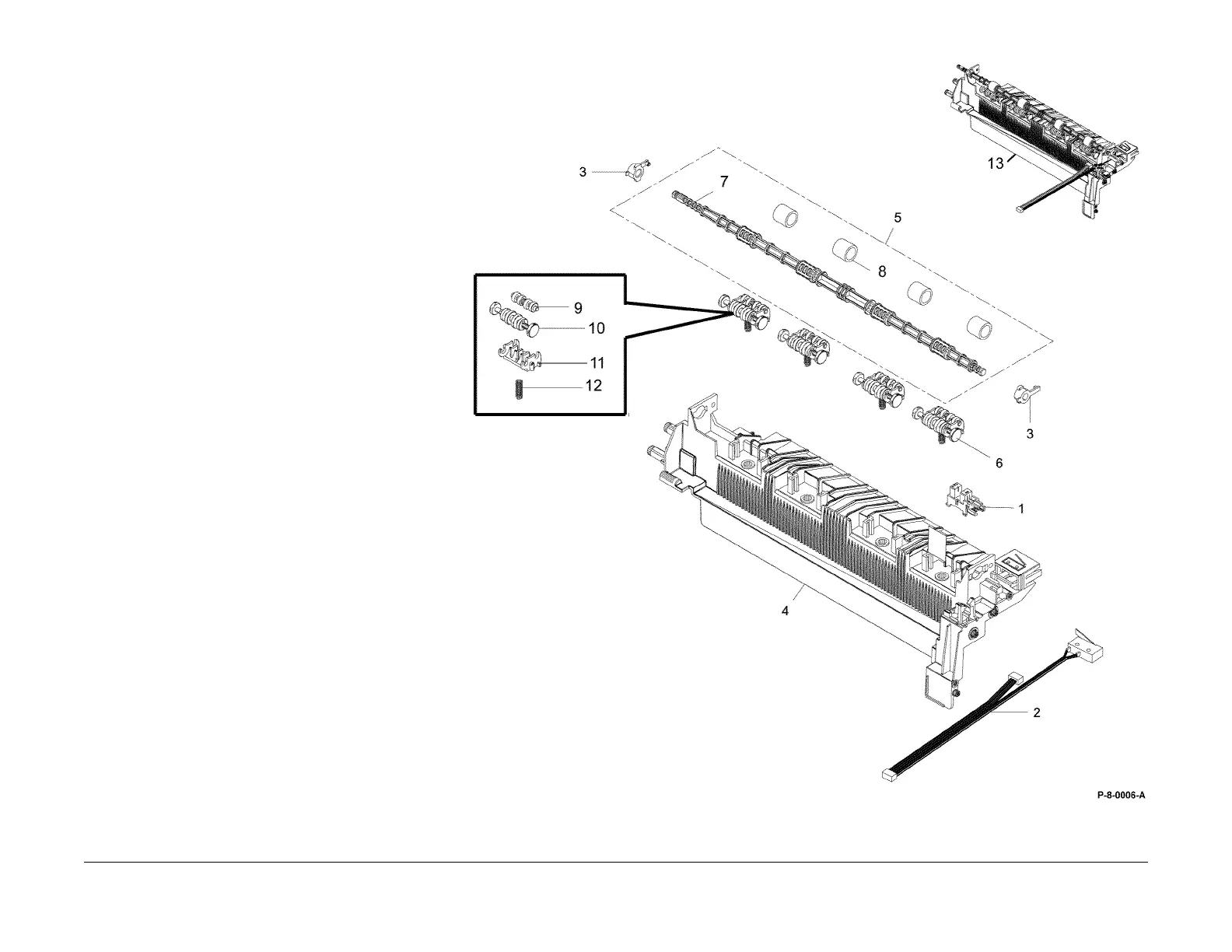

PL 4.3 Exit Frame
Item Part Description
1 130N01574 Output Tray Full Sensor (RE
P 4.7)
2 – Harness
3 – Bushing
4 –Exit Frame
5 001N00546 Exit Roll (RE
P 4.8)
6 – Decurler Roller
7 – Exit Shaft
8 – Rubber Exit Dup
9 – Inner Exit Roller
10 – Outer Exit Roller
11 – Exit Roll Holder
12 –Spring
13 – Exit Frame Assembly
