July 2019
4-14
Xerox® B210 Service Manual
REP 4.2
Initial Release
Repairs - Adjustments
REP 4.2 LVPS (Low Voltage Power Supply)
Parts List on PL 4.1
Removal
WARNING
Do not perform repair activities with the power on or electrical power supplied to the
machine. Some machine components contain dangerous electrical voltages that can
result in electrical shock and possible serious injury.
DANGER: Ne pas effectuer de dépannnage avec le contact principal activé ou avec l'ali-
mentation électrique appliquée à la machine. Certains éléments de la machine compor-
tent des tensions électriques dangereuses qui peuvent causer un choc électrique et de
g
raves blessures.
AVVERTENZA: Non effettuare alcuna riparazione con l'alimentazione elettrica inserita.
Al
cuni componenti contengono corrente ad alta tensione che può provocare forti
scosse e gravi ferite.
VORSICHT: Es dürfen erst Reparaturarbeiten durchgeführt werden, wenn das Gerät aus-
geschaltet ist oder der Netzstecker nicht mehr mit der Stromquelle verbunden ist.
E
inige Komponenten des Gerätes sind stromführend und können daher zu ernsthaften
Verletzungen oder Stromschlägen führen.
AVISO: No realice reparaciones con la máquina encendida o conectada a la corriente.
Al
gunos componentes de la máquina contienen voltajes eléctricos peligrosos que
pueden producir una descarga eléctrica y causar daños graves.
1. Switch off the printer, then disconnect the power cord.
2. Remove the Right Side Cover, RE
P 2.2.
3. Remove the LVPS PWB, F
igure 1:
a. Disconnect two connectors.
b. Remove six screws, then remove the LVPS PWB.

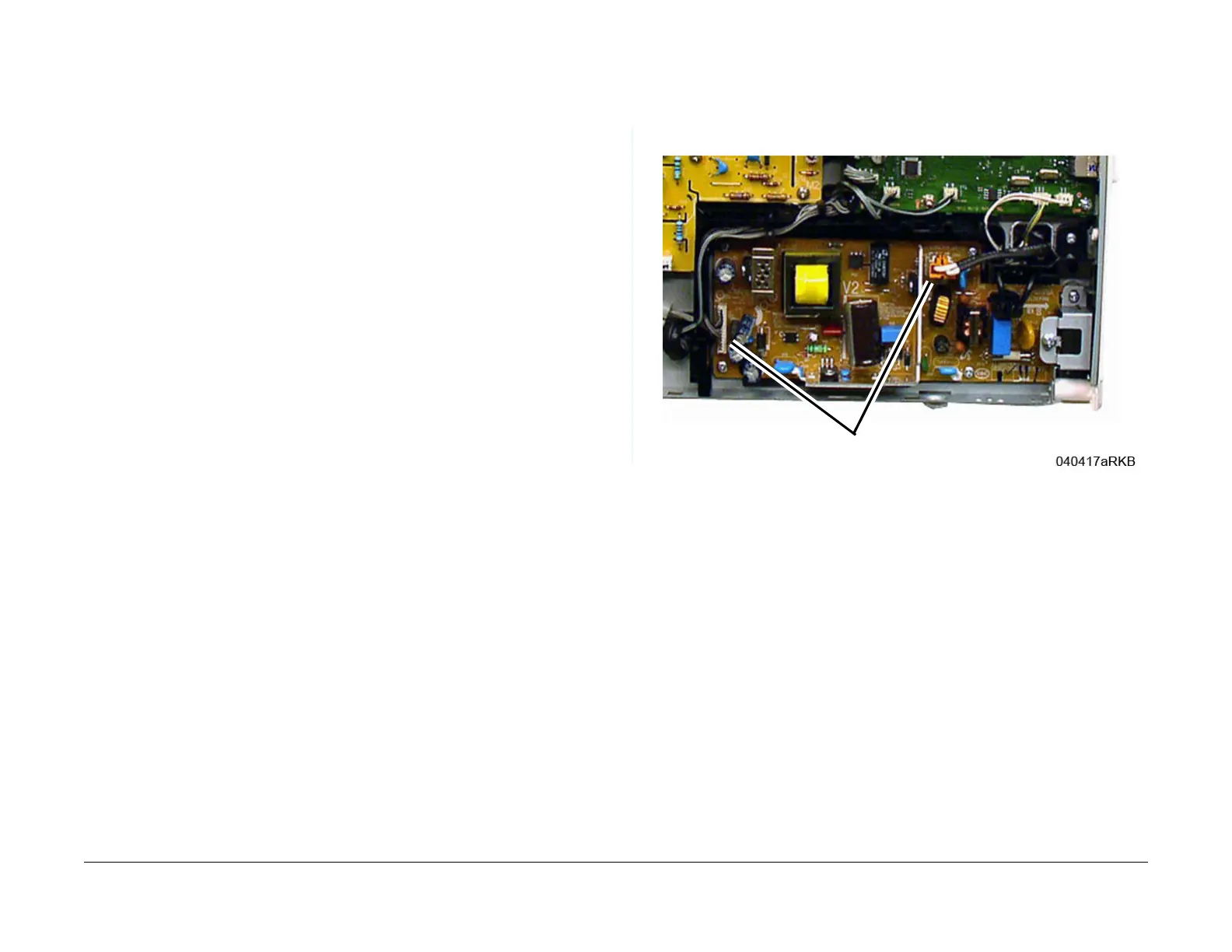

Figure 1 LVPS PWB
Replacement
Replacement is the reverse of the removal procedure.
NOTE: Tapered plastic screws and round machine screws are used to hold the pwb to the
f
rame. Make sure that the plastic screws go into plastic components and machine screws go
into the metal frame.
