Xerox® B210 Service Manual
REP 4.14, REP 4.15
Repairs - Adjustments
Initial Release
Replacement
Replacement is the reverse of the removal procedure.
NOTE: Tapered plastic screws and round machine screws are used to hold the cover to the
f
rame. Make sure that the plastic screws go into plastic components and machine screws go
into the metal frame.
NOTE: When replacing the Paper Feed Roll Assembly ensure t
he flat of the bushing is lined
up with the flat on the assembly, Figure 4.

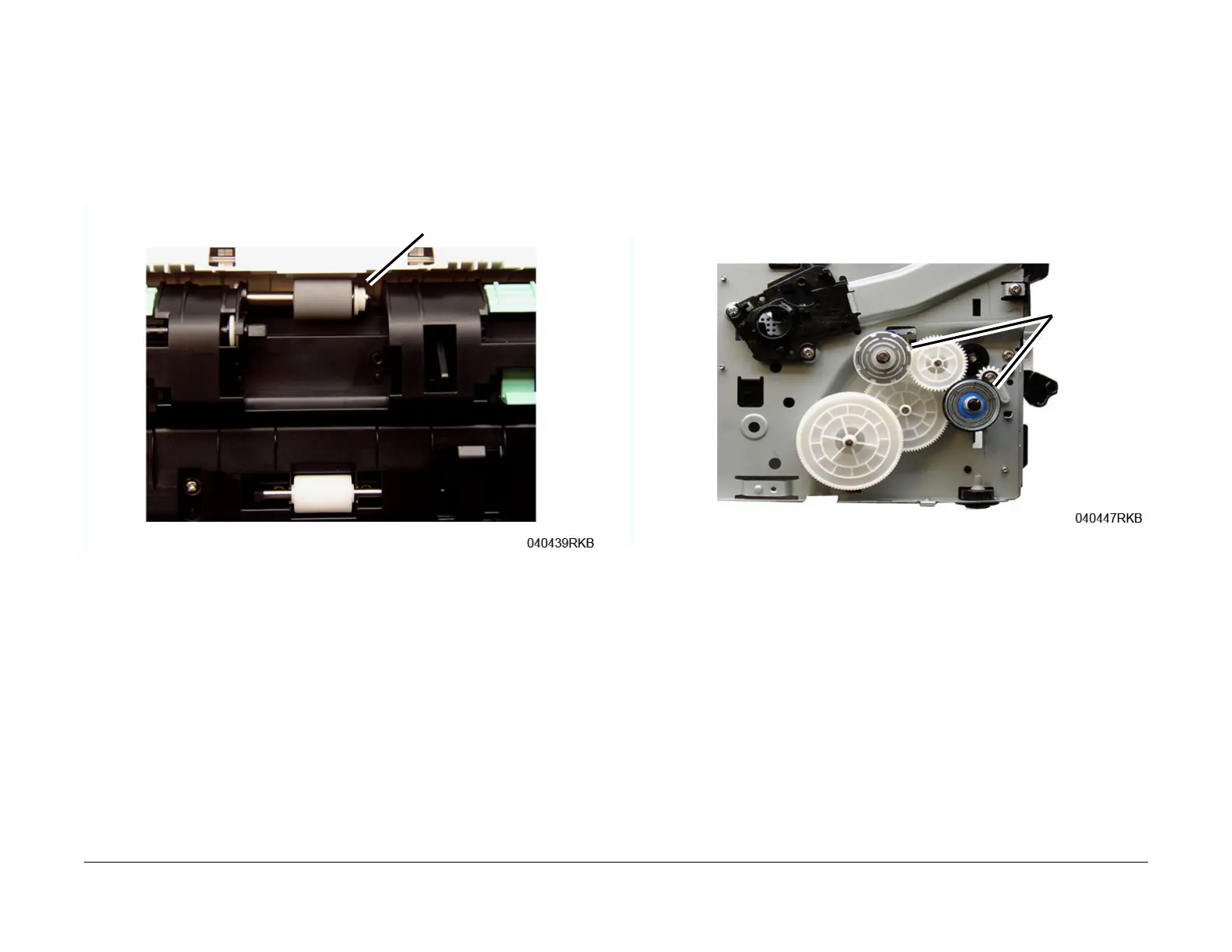

Figure 4 Bushing Flat (Bottom View)
REP 4.15 Drive Motor
Parts List on PL 4.6
Removal
1. Switch off the machine, then disconnect the power cord.
2. Remove the Top Cover, RE
P 3.2.
3. Remove the Bottom Bar and Duplex Assembly, REP 4.6.
4. Remove the Main Drive Unit, REP 4.17.
5. Remove the Feed and Registration Clutches, REP 4.3.
6. Remove the Feed and Registration Clutch Drive Gears, Figure 1.
Figure 1 Feed and Registration Clutch Drive Gears
