Xerox B210 - REP 4.10 Feed and Registration Sensors PWB and Actuators

July 2019
4-27
Xerox® B210 Service Manual
REP 4.9, REP 4.10
Repairs - Adjustments
Initial Release
7. Install the Front Cover Support Arm, Figure 18.

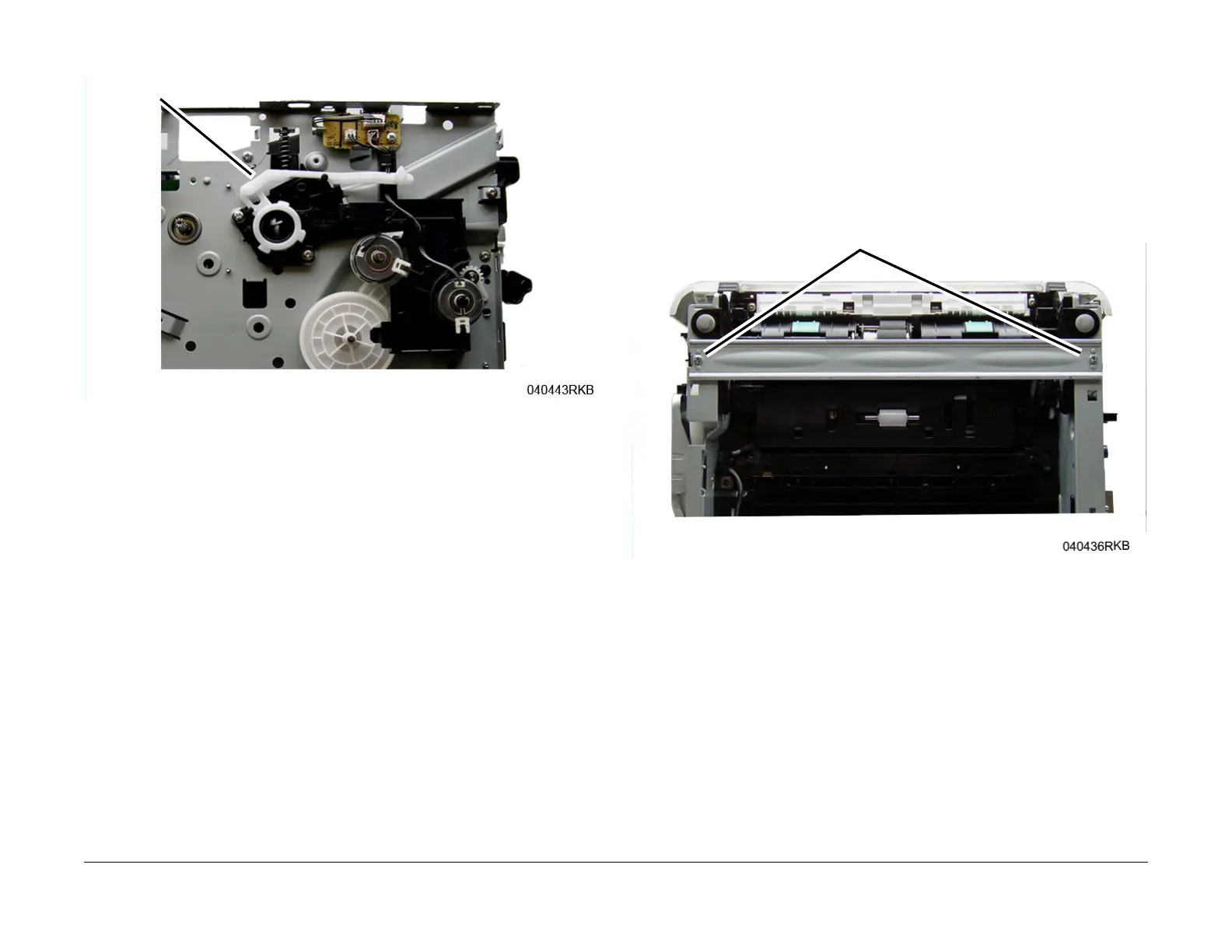

Figure 18 Front Cover Support Arm Placement
REP 4.10 Feed and Registration Sensors PWB and
Actuators
Parts List on PL 4.4
Removal
1. Switch off the machine, then disconnect the power cord.
2. Remove the Duplex Assembly, RE
P 4.6.
3. Set the printer on the Rear Cover (Front of printer facing up).
4. Remove two screws, then remove the Bottom Bar, F
igure 1.
Figure 1 Bottom Bar (Bottom View)
Support Arm
Screws
