July 2019
4-5
Xerox® B210 Service Manual
REP 1.2
Repairs - Adjustments
Initial Release

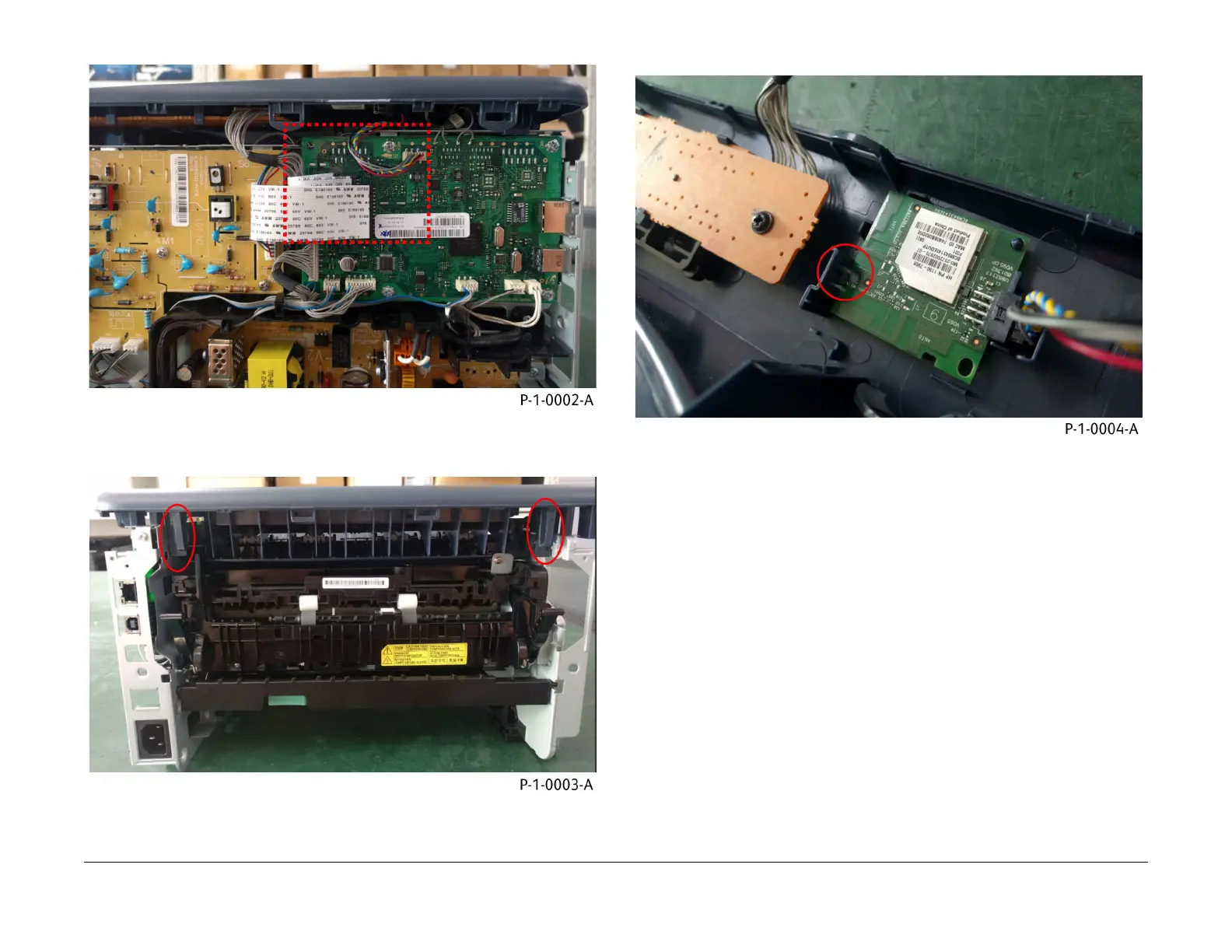

5. Disconnect the FFCs and harnesses, Figure 2.
Figure 2 Disconnect FFCs and harnesses
6.
Release two hooks, then remove the Top Cover, Fi
gure 3.
Figure 3 Top Cover removal
7.
Release the hook, then remove the SUB PWB (WiFi), Fi
gure 4.
Figure 4 SUB PWB removal
To Next Page
