General Information
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
1-17

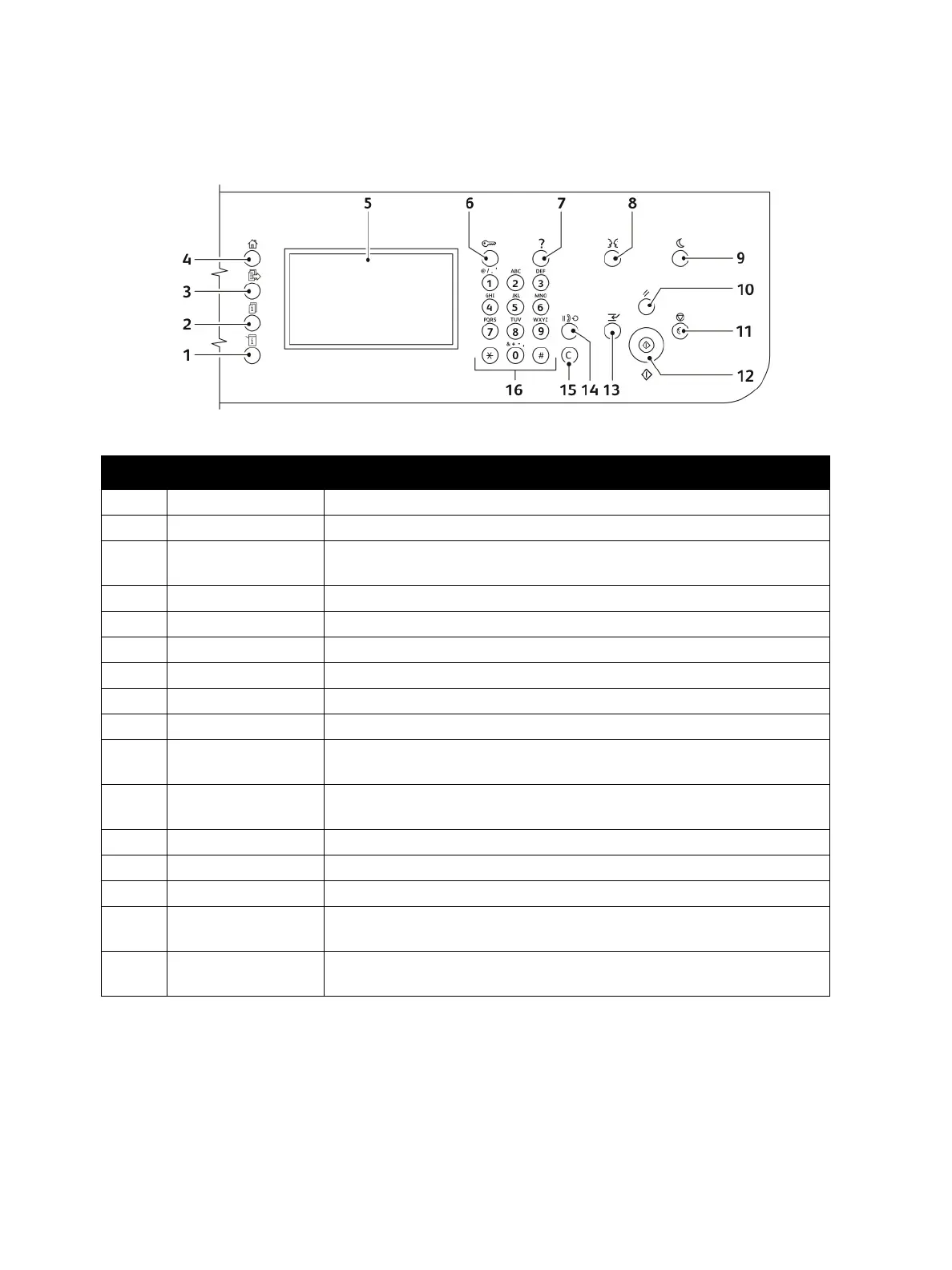

WorkCentre 3335, 3345 Control Panel Button Descriptions
Item Name Description
1. Machine Status Displays the status of the printer on the Touch Screen.
2. Job Status Displays a list of all active, secure and completed jobs.
3. Services Returns the machine to active service from the Job Status or Machine
Status screen.
4. Services Home Provides access to the printer features (copy, scan, fax).
5. Touch Screen Display Displays information and provides access to printer functions.
6. Log in/Out Provides access to password protected printer features.
7. Help Displays information about the current selection on the Touch Screen.
8. Language Changes the Touch Screen language and keyboard settings.
9. Power Saver Enters and exits the low-power mode.
10. Clear All Clears previous and changed settings for the current selection. To reset all
features to their default settings, press this button twice.
11. Stop Stops the current job temporarily. To cancel or resume follow the on-
screen instructions.
12. Start Starts the selected copy, scan, fax or print form job.
13. Interrupt Pauses the current job to run a more important copy, scan.
14. Dial Pause Inserts a pause in a telephone number when it transmits a fax.
15. C (Clear) Deletes numeric value or the last digit entered using the alphanumeric
Keys.
16. Alphanumeric
Keypad
The keypad for entering
