Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-42
Pick Up, Registration, and Bypass Tray Clutches
Parts List 3.1 Frame (1 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Feed Drive Assembly (page 4-41).
4. Using the following illustrations, unplug the connector and remove the:

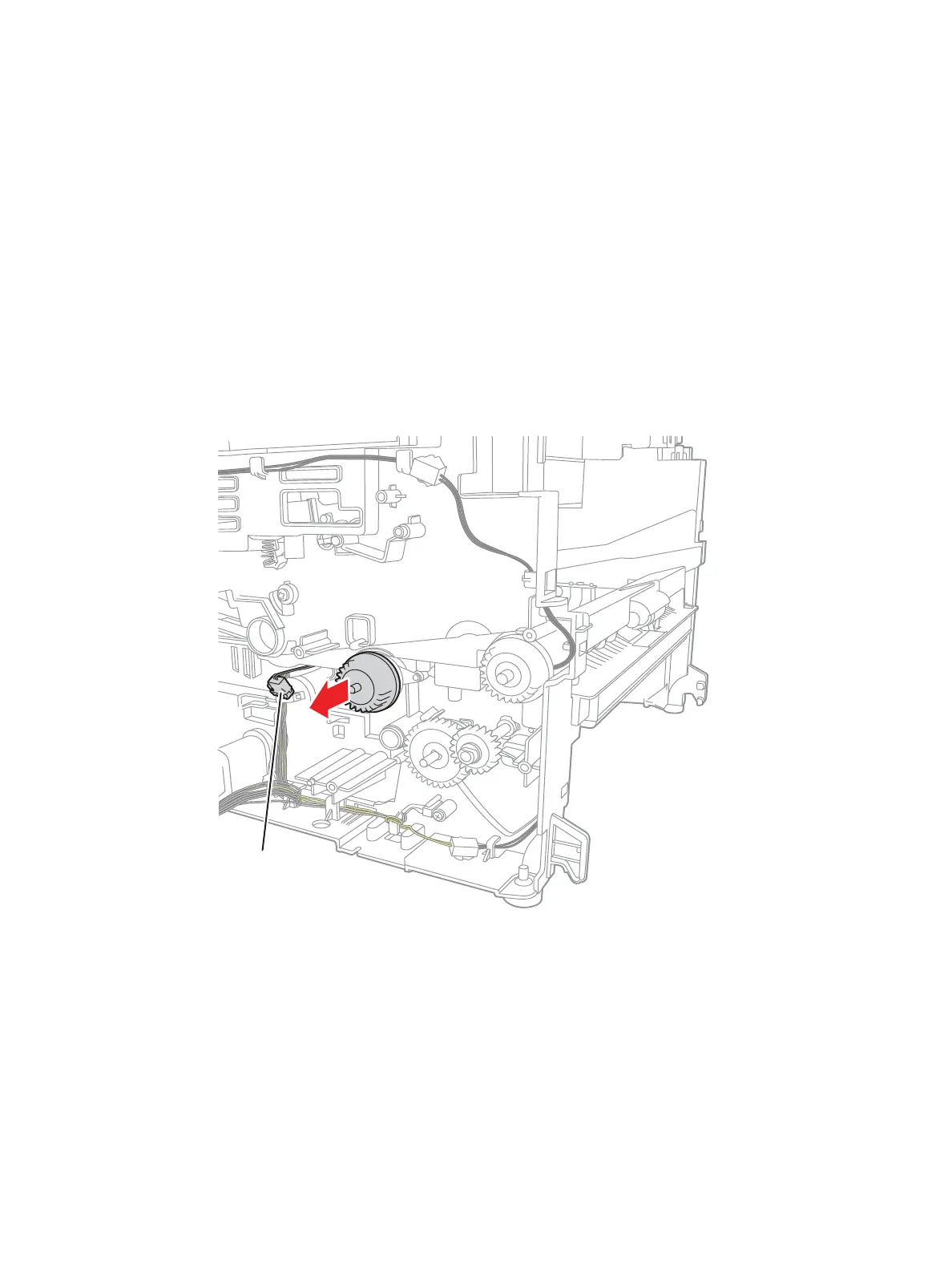

Registration Clutch (P/J32):
To Next Page
