Xerox WorkCentre 3345 Service Manual

General Information
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
1-24

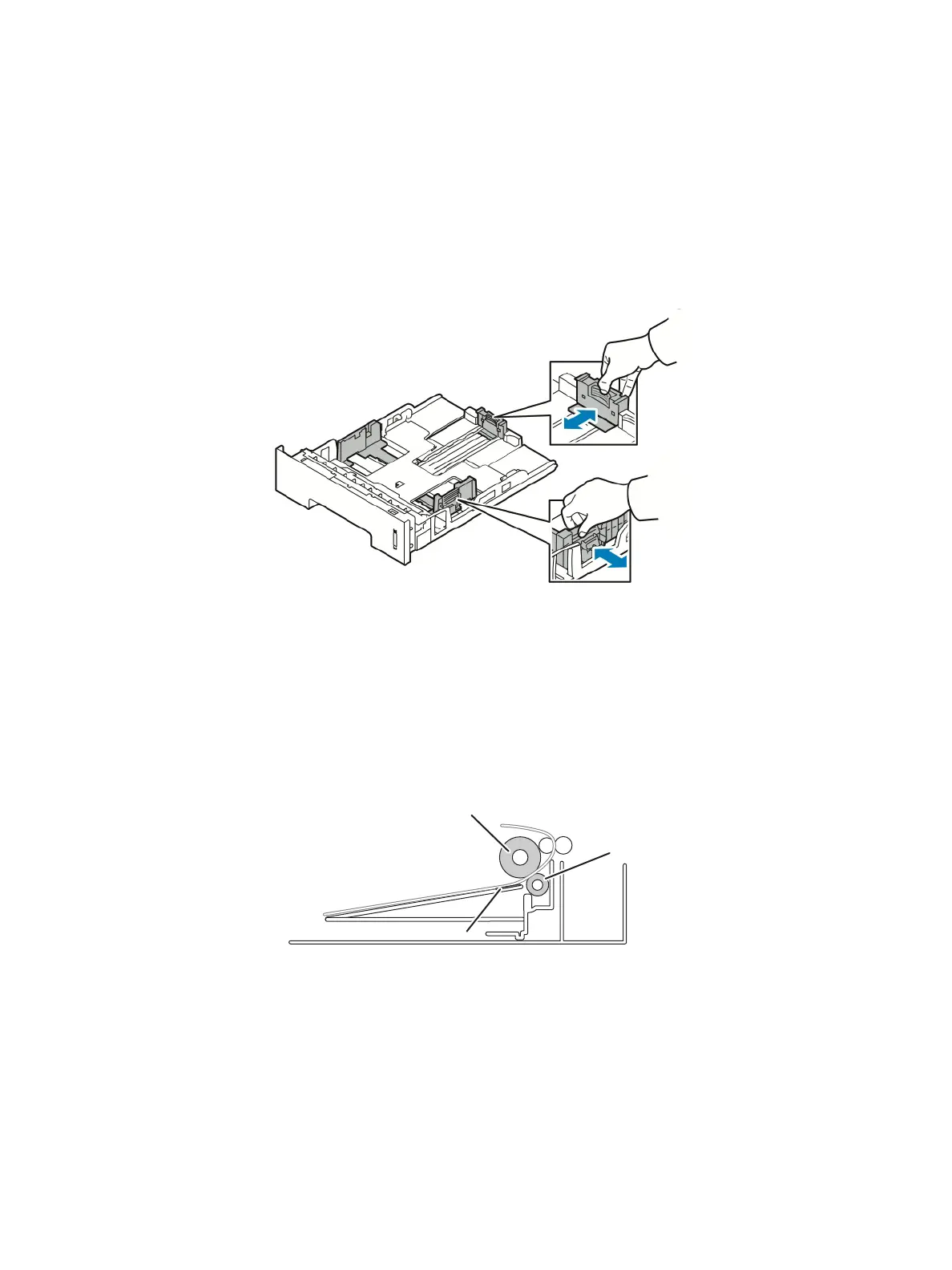

Paper Feeder
Tray 1
The basic tray is located on front side of the machine and allows feeding of common paper. Paper size
is set using the Size Guides in each tray. Adjust the Paper length/width guides to match the paper size.
Pick Up / Retard Roller
When pickup takes place, the Pick Up Roller rotates to separate and transport the paper. The Pick Up
Roller rotates when the Pick Up Clutch is activated. The Retard Roller ensures that a single sheet of
paper is moved to the paper path, and the paper is moved as far as the Registration Roller by the Feed
Roller.
Registration Roller
When a sheet is fed from the tray to the toner transfer section, the registration of the sheet may not be
correctly maintained due to misalignment of lead edges in the tray. To avoid this problem, the lead
edge position needs to be aligned at the Registration Rollers before the sheet is fed in front of the
Transfer Belt, or in front of the Backup Transfer Rolls (BTR).
Pick Up Roller
Retard Roller
Lift Pad
s3320-235

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
