Xerox WorkCentre 3345

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-155
Optional Tray 2 Main Drive Unit
Parts List 12.3 Optional Tray Frame ETS

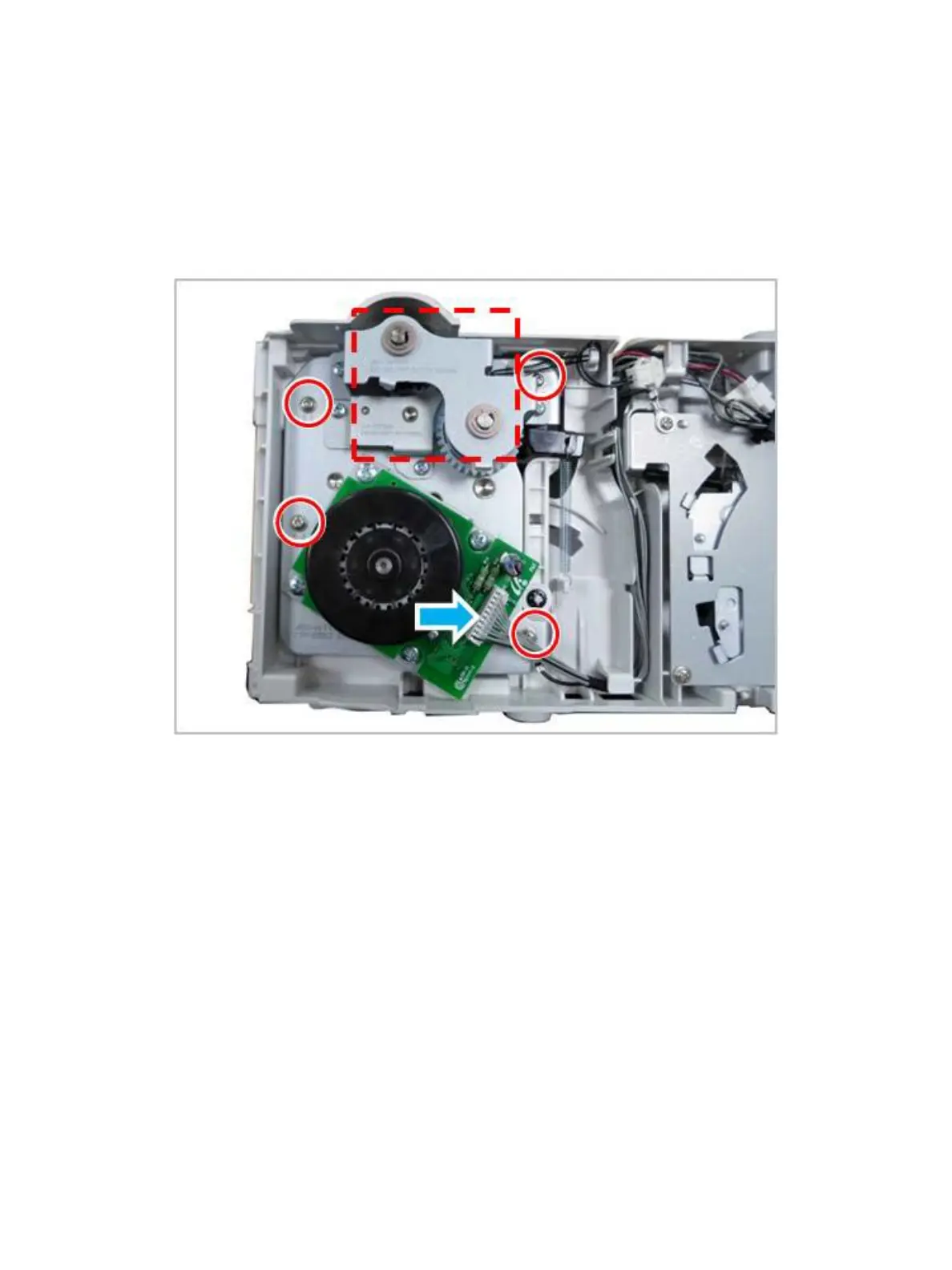

1. Disconnect the Optional Tray harness.
2. Lift printer from the Optional Tray.
3. Remove the Optional Tray 2 clutch bracket. (page 4-152).
4. Unplug the main motor connector.
5. Remove 4 screws.
6. Remove the Optional Tray 2 Main Drive Unit (Parts List 12.3 Optional Tray Frame ETS, PL 12.3.7).
