Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-156

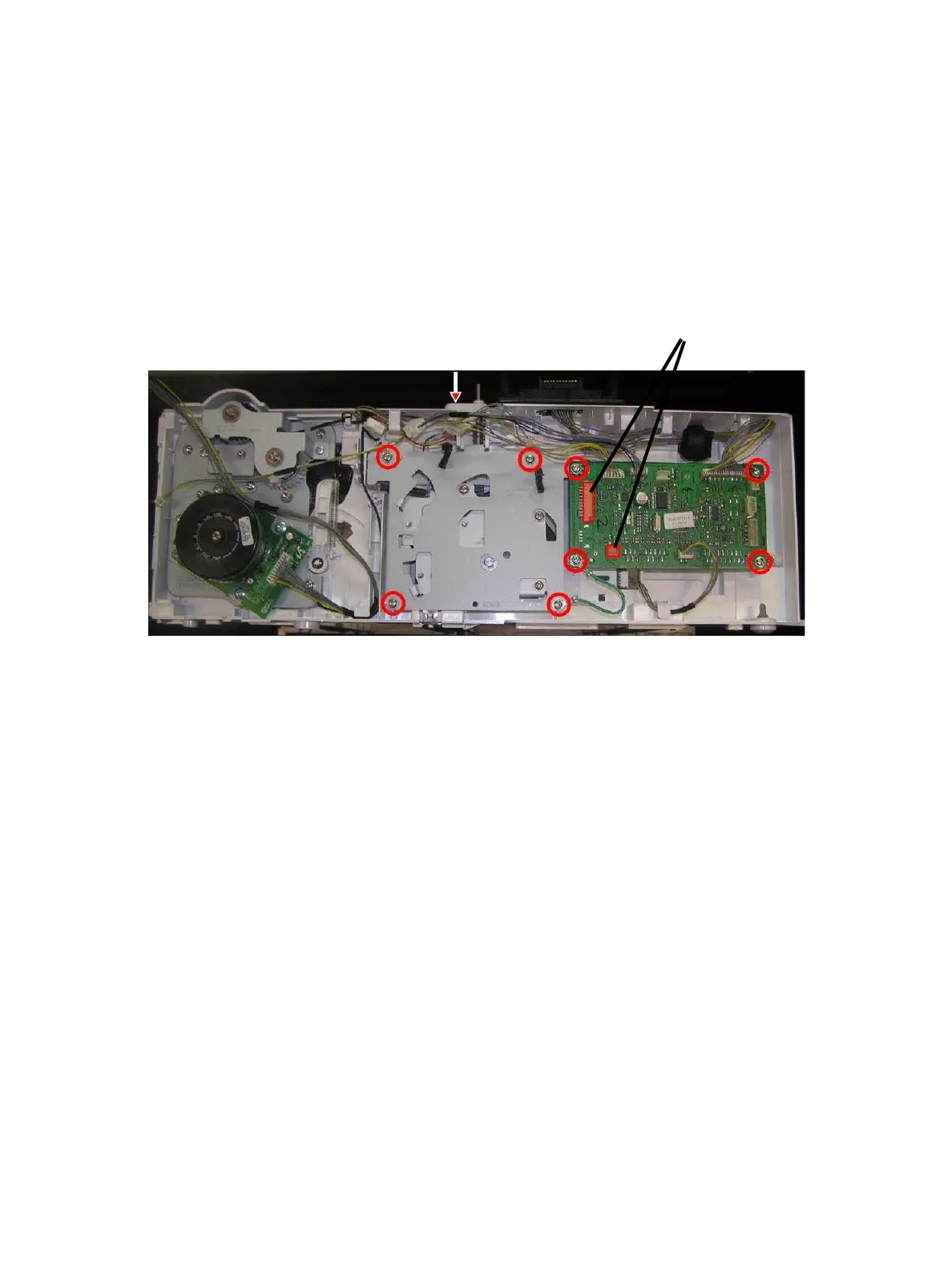

Optional Tray 2 Lift Assy
Parts List 12.3 Optional Tray Frame ETS
1. Disconnect the Optional Tray harness.
2. Remove the Optional Tray 2 Right Side Cover (page 4-149).
3. Open the harness clamps.
4. Disconnect the connectors from the Optional Tray 2 PWB.
5. Remove 8 screws and the screw holding the locking pin.
6. Remove the Locking Pin
7. Lift the Optional Tray 2 Lift Assy. from under the Tray Borad.
8. Disconnect the Lift Assembly’s plug/jack and remove the Optional Tray 2 Lift Assembly.
Locking Pin
Disconnect the connectors (2)

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
