Platen Unit
Parts List 9.2 WorkCentre 3335/3345 Platen
1. Remove the Right Cover (page 4-17).
2. Remove the ADF/DADF (WorkCentre 3335, (page 4-138); WorkCentre 3345, (page 4-116).
3. Remove the Control Panel Unit (page 4-70) P3330 / (page 4-73) WC3335/45.
4. Unplug 5 scanner connectors from the Main PWB, P3330 (Parts List 1.0 Phaser 3330 Main, PL
1.0.7); WC3335/3345 (Parts List 6.1 WorkCentre 3335/3345 Main, PL 6.1.7).
.

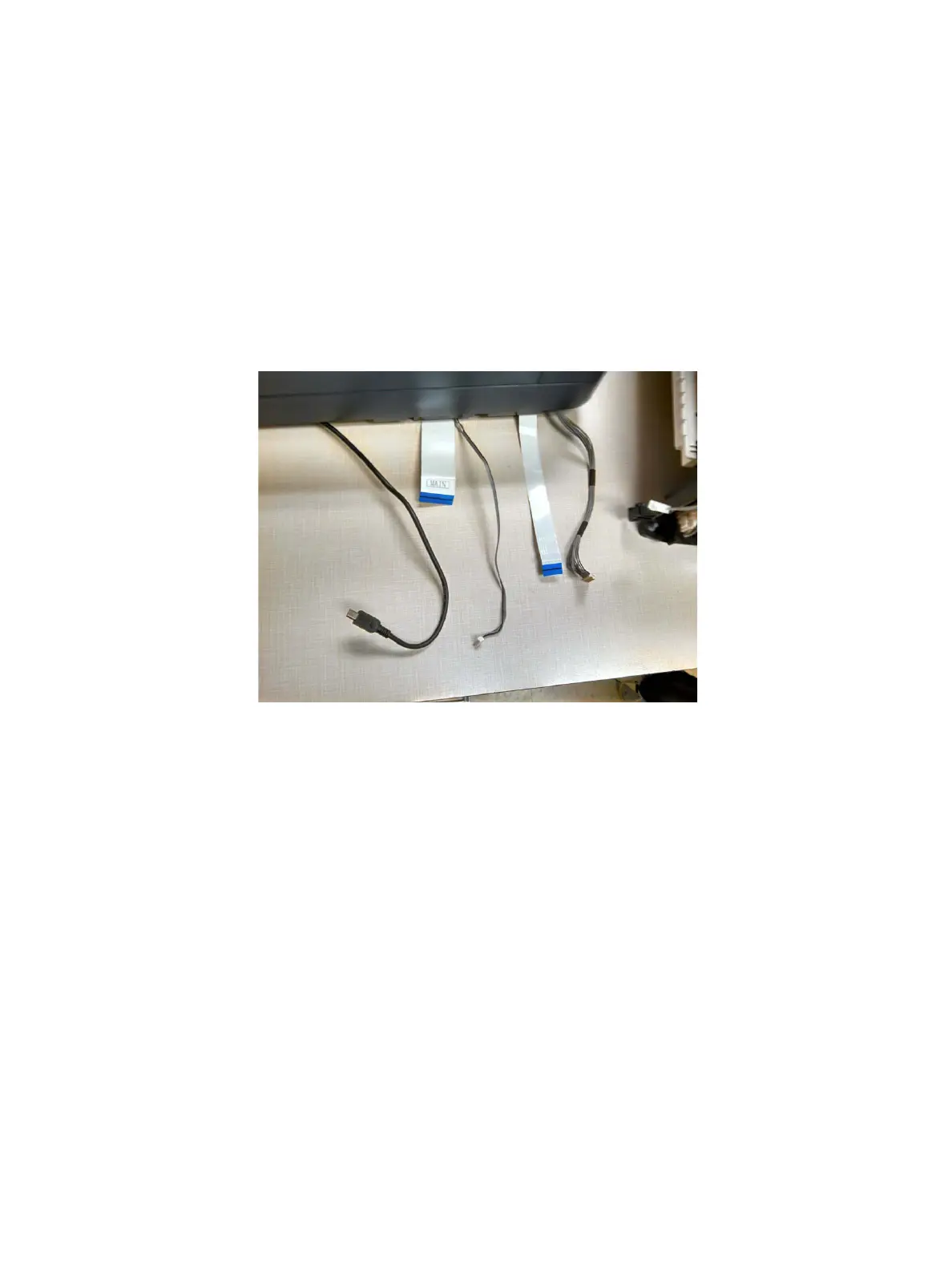

5 unplugged connectors from Main Board
