Control Panel
The Control Panel consists of multiple LEDs, a display, and several function buttons. These buttons are
used to navigate the menu system, perform functions, and select modes of operation.

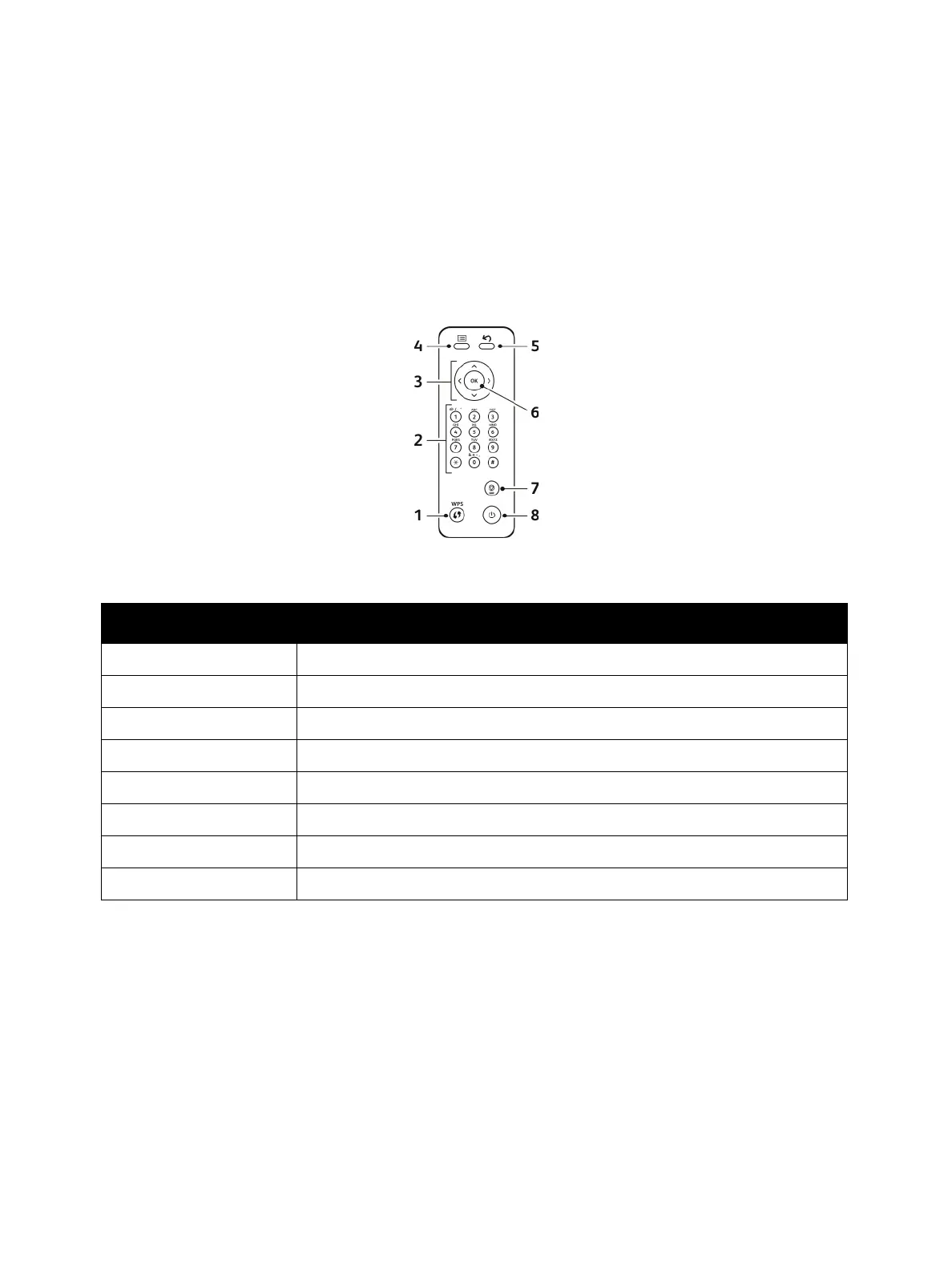

Phaser 3330 DN/DNM Control Panel Button Descriptions
Item Description
1 Wi-Fi Protected Services Used for wireless network connectivity
2 Key Pad Enters information into the printer
3 Arrows Navigates available values by moving to the next or previous options.
4 Menu Enters the menu mode and scrolls through the available menus
5 Back Sends you back to the upper menu level.
6 Ok Confirms the selection on the display.
7 Cancel Stops the current job.
8 Power Turn the power on and off with this button.

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
