Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-7
Duplex Assembly
Parts List 4.1 Duplex Assembly

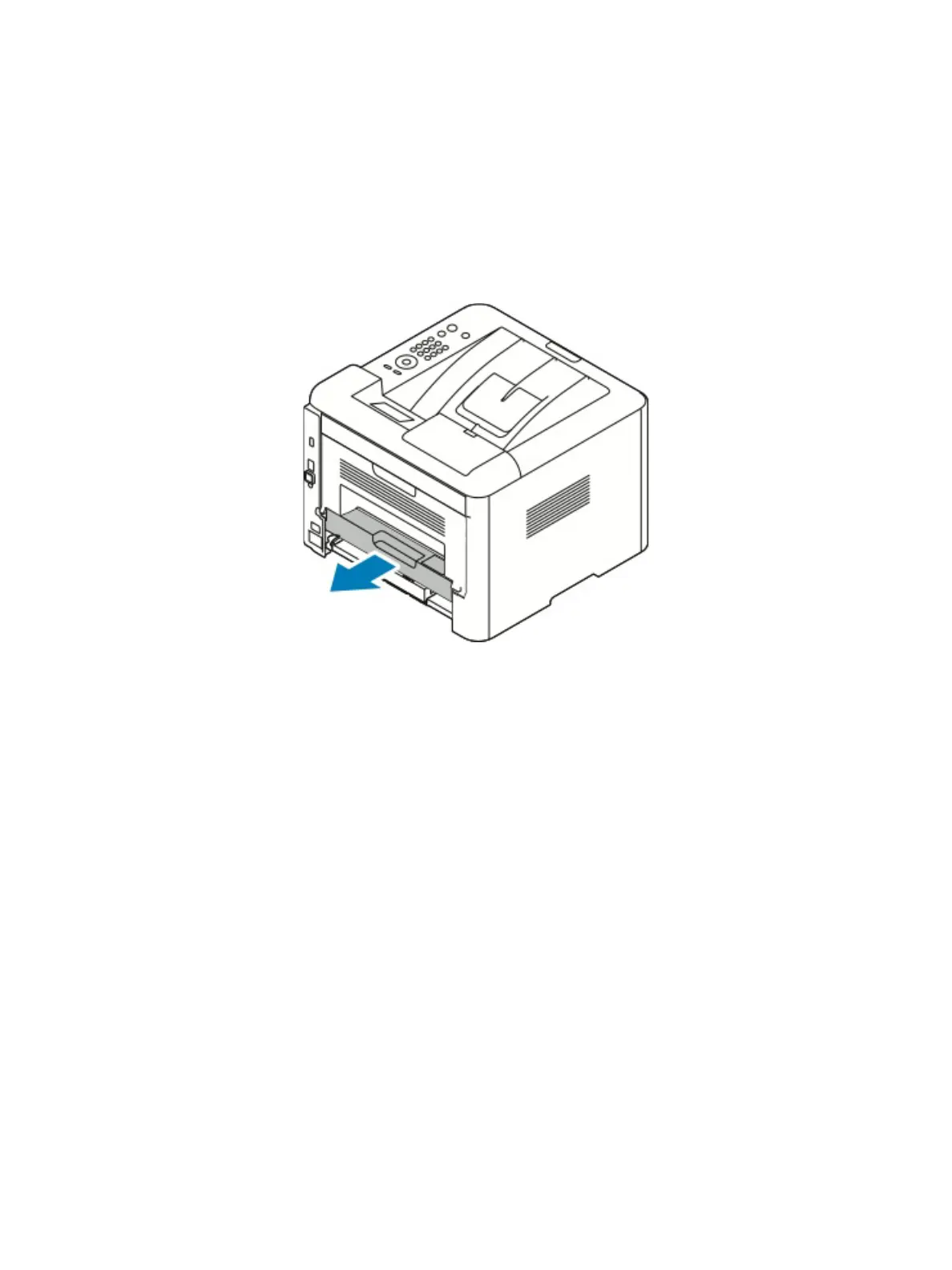

1. Pull the Duplex Assembly (Parts List 4.1 Duplex Assembly, PL 4.1.11) to remove it from the back of
the printer.
