Xerox WorkCentre 3345 Service Manual

Image Quality
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
3-20
Toner Smears
There are faded or completely non-printed lines along the page in the direction of the paper travel
from the leading edge to the trailing edge.
Initial Actions
• Check that the media settings match the media in use.
• Check that the media is dry and in good condition.
• If the problem is that the background on the face of the printed page is stained refer to Smears on
Printed Page.

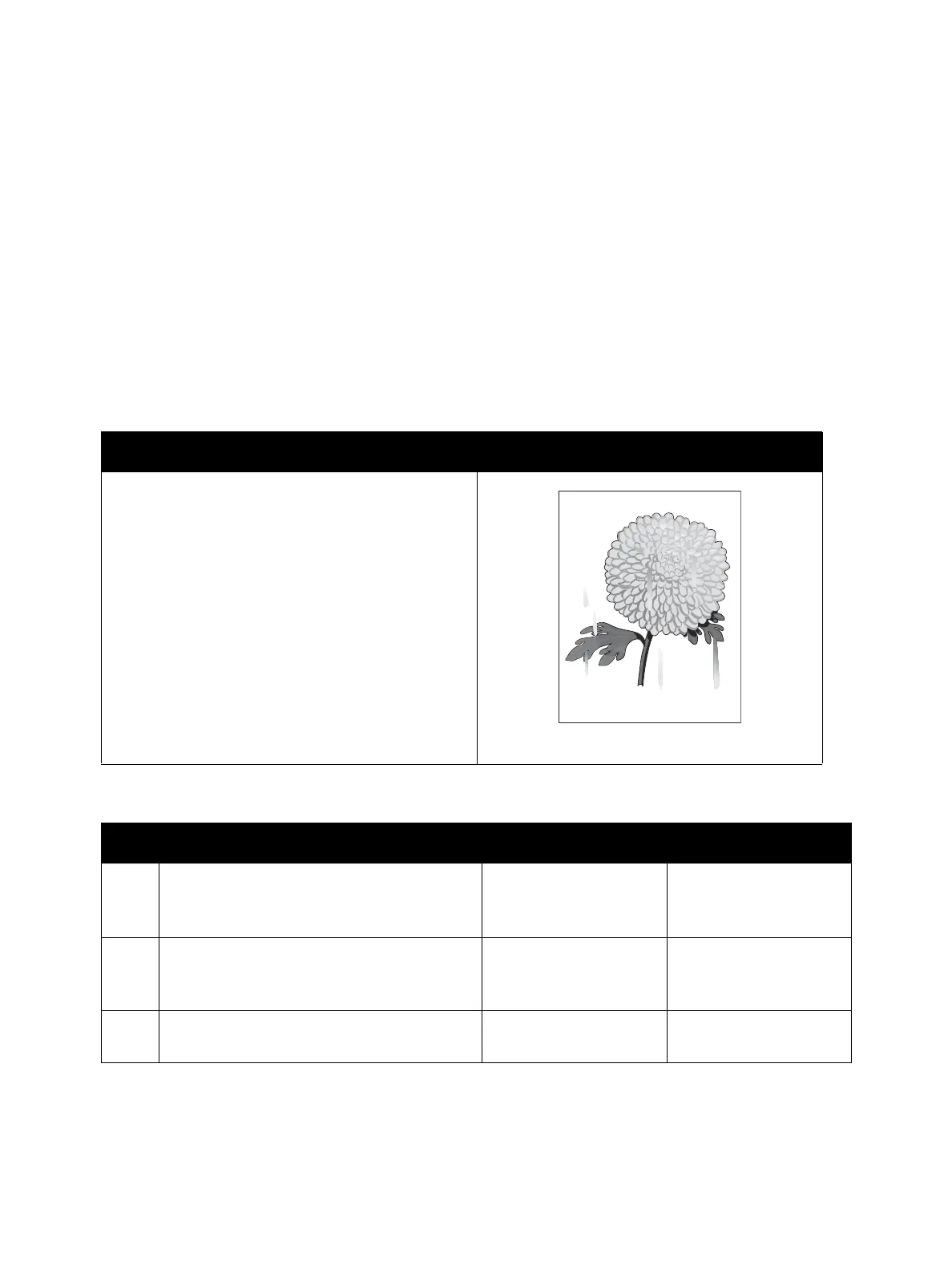

Troubleshooting Reference Table
Troubleshooting Procedure Table
Applicable Parts Example Print
• Fuser (PL 3.3.36, Parts List 3.3 Fuser)
• Transfer Roller (PL 3.1A.40, Parts List 3.1A Frame
(2 of 2))
Step Actions and Questions Yes No
1. Reseat P/J15 on the Main PWB, and P/J3 on
the LVPS.
Does the image print correctly?
Complete. Go to step 2.
2. Replace the Fuser (PL 3.3.36, Parts List 3.3
Fuser).
Does the image print correctly?
Complete. Replace the Transfer
Roller (PL 3.1A.40, Parts
List 3.1A Frame (2 of 2)).
3. Replace the Toner Cartridge. Xerox Supplies
and Accessories
Smudges or Smears

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
