Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-75
HVPS
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Front Door (page 4-13)
4. Remove the Rear Door (page 4-13).
5. Remove the Right Cover (page 4-17).
CAUTION: In the next step, after you remove the screws, use care when removing the HVPS PWB
as the connector is still connected on the backside of the PWB and can be damaged.

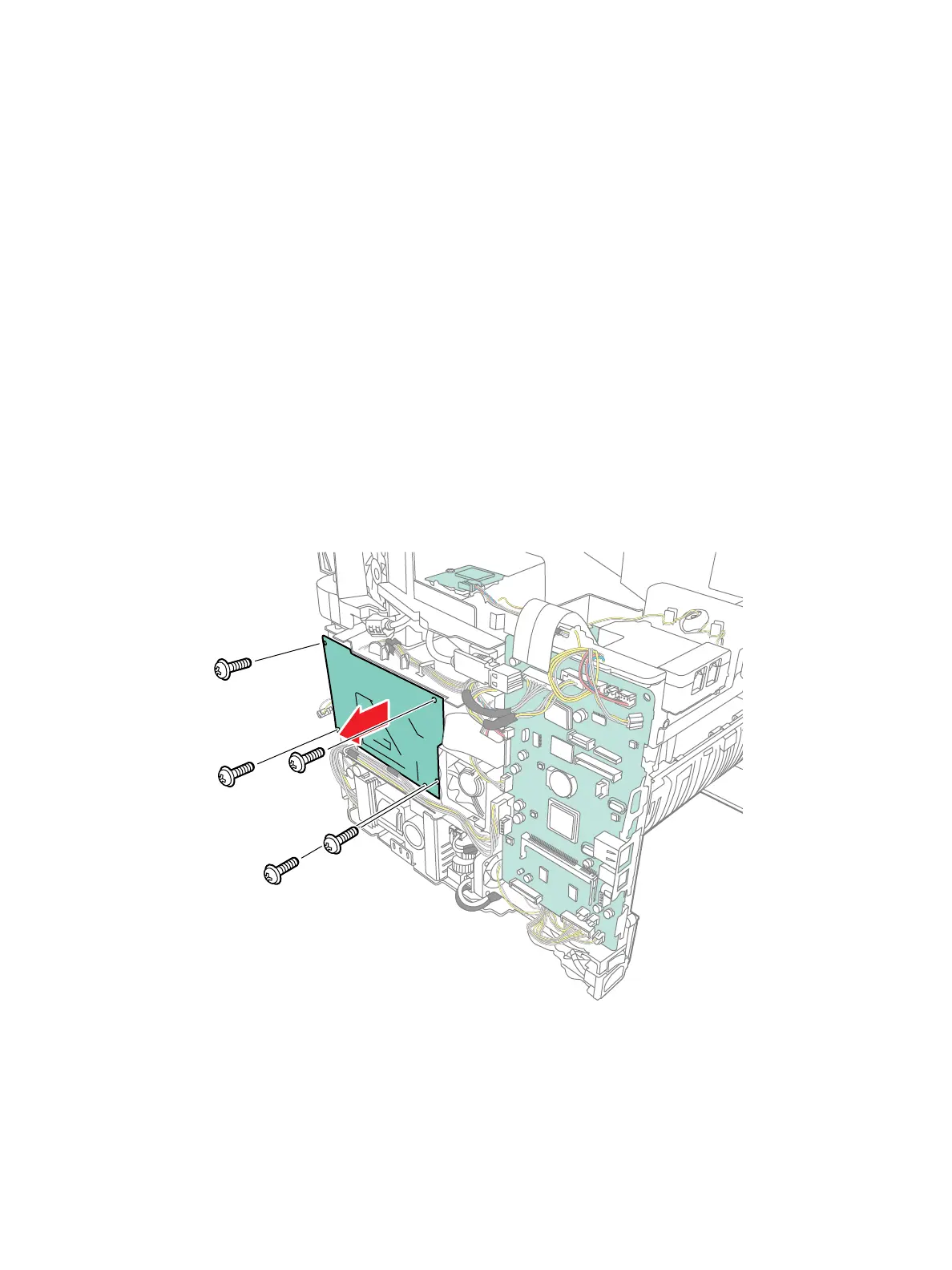

6. Remove 5 screws (silver, flanged, tap, 10 mm) and ground wire from top-right corner, then remove
the HVPS Board (Parts List 3.1A Frame (2 of 2), PL 3.1A.33) .
7. Remove the Upper Middle Cover (page 4-23).
8. Unplug the connector on the HVPS Board (Parts List 3.1A Frame (2 of 2), PL 3.1A.33) .
s3320-089

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
