Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-29
Feeder
Base Plate Pad
Parts List 12.1 Optional Tray 2 Feeder Main

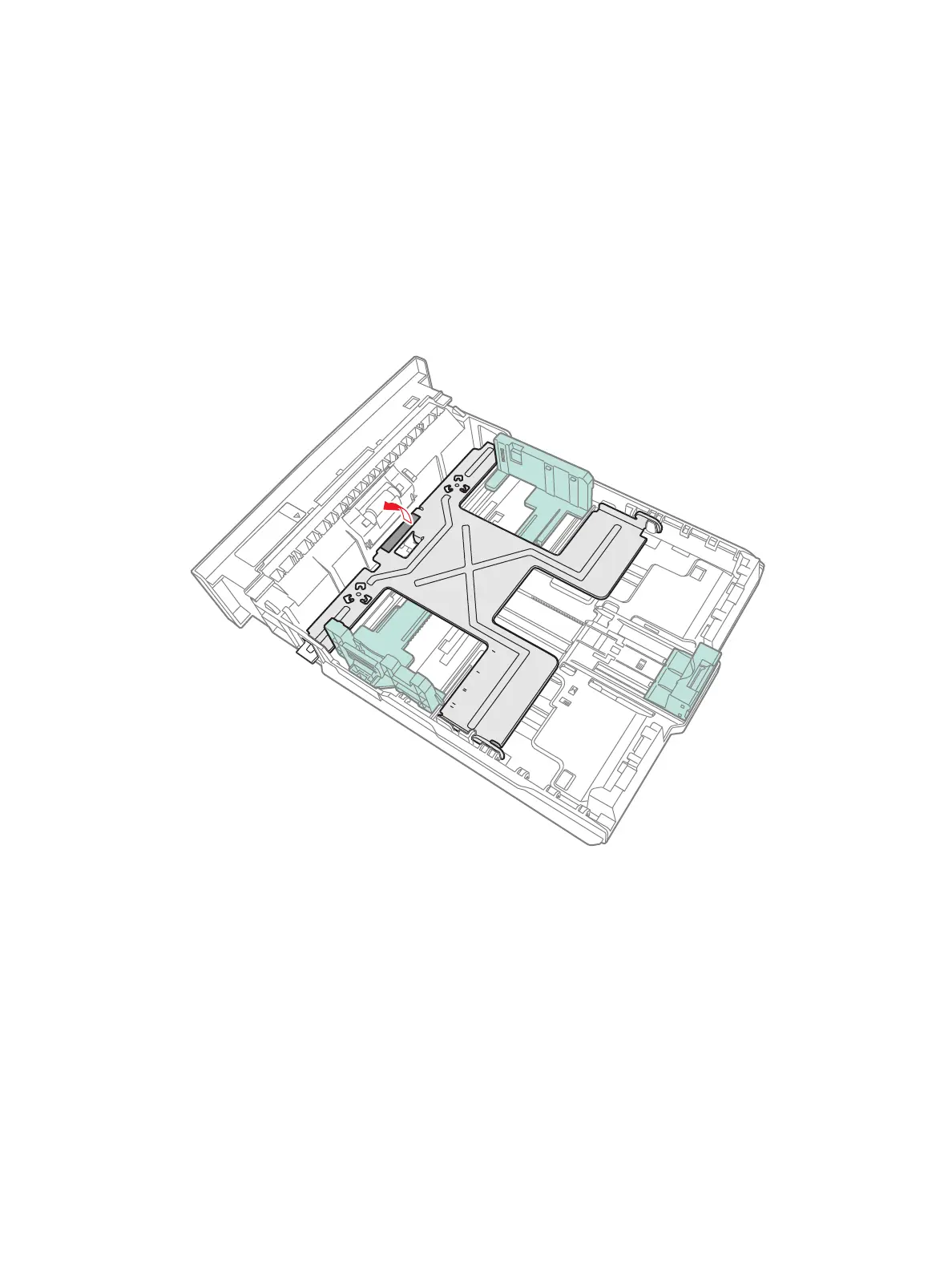

1. Remove Tray 1 (page 4-6).
2. Peel off the Cassette Retard Pad (Parts List 5.1 Tray 1, PL 5.1.8).
s3320-215
