Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-154
Optional Tray 2 Reverse Roller
Parts List 12.2 Optional Tray Cassette A/S Assy

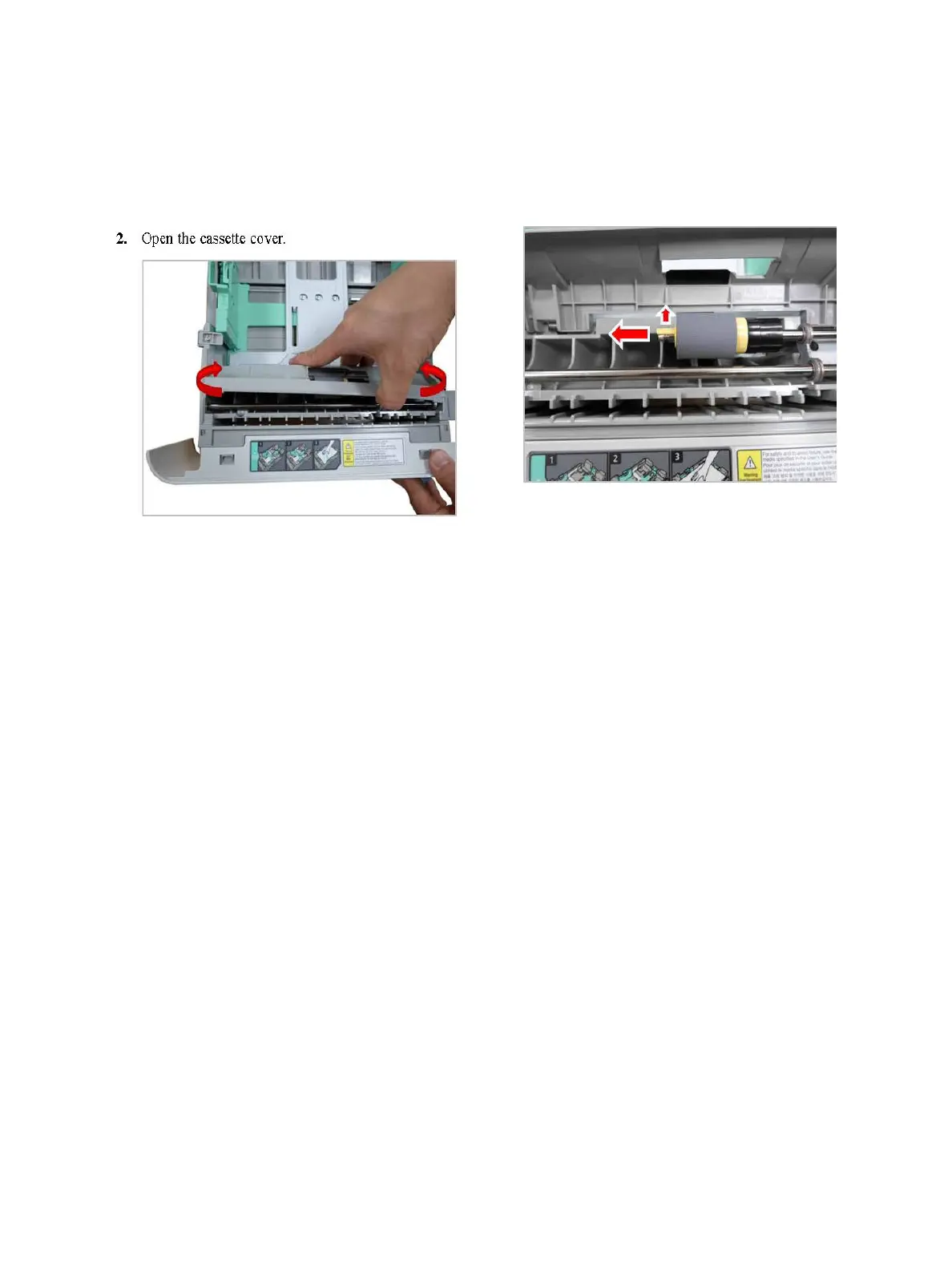

1. Remove the Optional Tray 2 cassette and open the cassette cover.
2. Release the reverse roller while pulling the small tab.
3. Pull on tab and release roller.
