Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-73

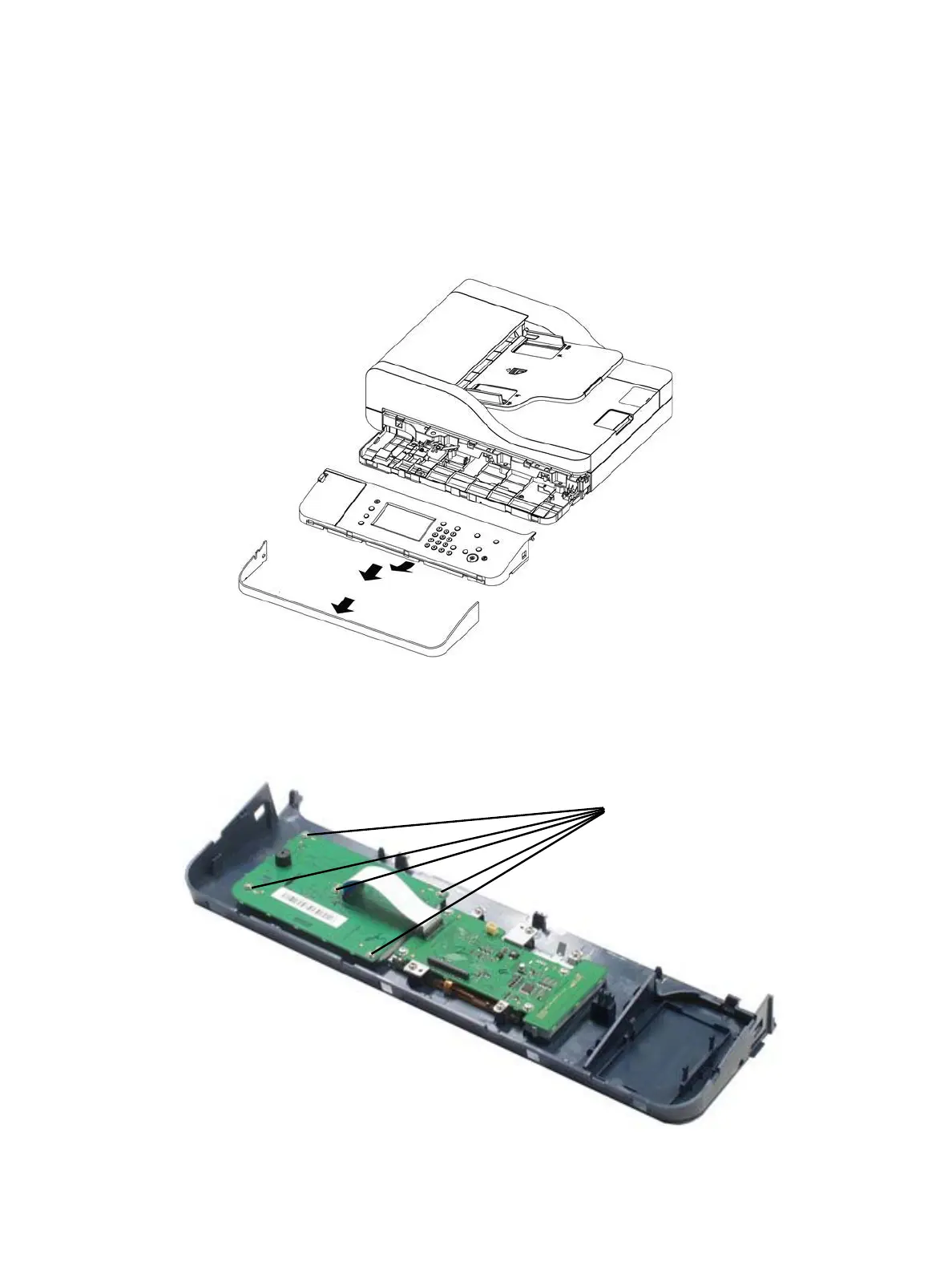

Control Panel Assembly and Key PWB (WorkCentre 3335/3345)
Parts List 10.1 WorkCentre 3335/3345 Control Panel
1. Remove the DECO Control Panel Cover (Parts List 10.1 WorkCentre 3335/3345 Control Panel, PL
10.1.11)
2. Remove the Control Panel Cover (Parts List 10.1 WorkCentre 3335/3345 Control Panel, PL 10.1.10)
3. Carefully turn over the Control Panel Cover, and disconnect the ribbon cable.
4. Remove 5 screws and remove the Key PWB (Parts List 10.1 WorkCentre 3335/3345 Control Panel,
PL 10.1.21)
Remove screws

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
