Xerox WorkCentre 3345 Service Manual

General Information
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
1-28
Fuser
The Fuser consists of a halogen lamp, heat roller, pressure roller, thermistor and thermostat. It sticks
the toner on a paper by heat and pressure to complete the printing job.
•Thermostat
When the heat lamp overheats, the Thermostat cuts off the AC power to the Halogen Lamp to
prevent over- heating.
– Thermostat Type: Non- Contact type THERMOSTAT
–Control Temperature: 190
°C ± 5° C (374°F ±10° F)
•Thermistor
The Thermistor is a temperature detecting sensor.
– Temperature Resistance: 7k ohms 180
°C (356° F)
• Heat roller
The heat roller transfers the heat from the lamp to apply heat on the paper.
The surface of the heat roller is coated with Teflon, so toner does not stick to the surface.
• Pressure roller
A pressure roller mounted under a heat roller that is made of a silicon resin, and the surface also is
coated with Teflon. When a paper passes between a heat roller and a pressure roller, toner
adheres to the surface of a paper permanently.
•Halogen Lamp
– Voltage 120 V: 115 ± 5% Voltage 220 V: 230 ± 5%
– Capacity: 850 Watt ± 42.5 - W

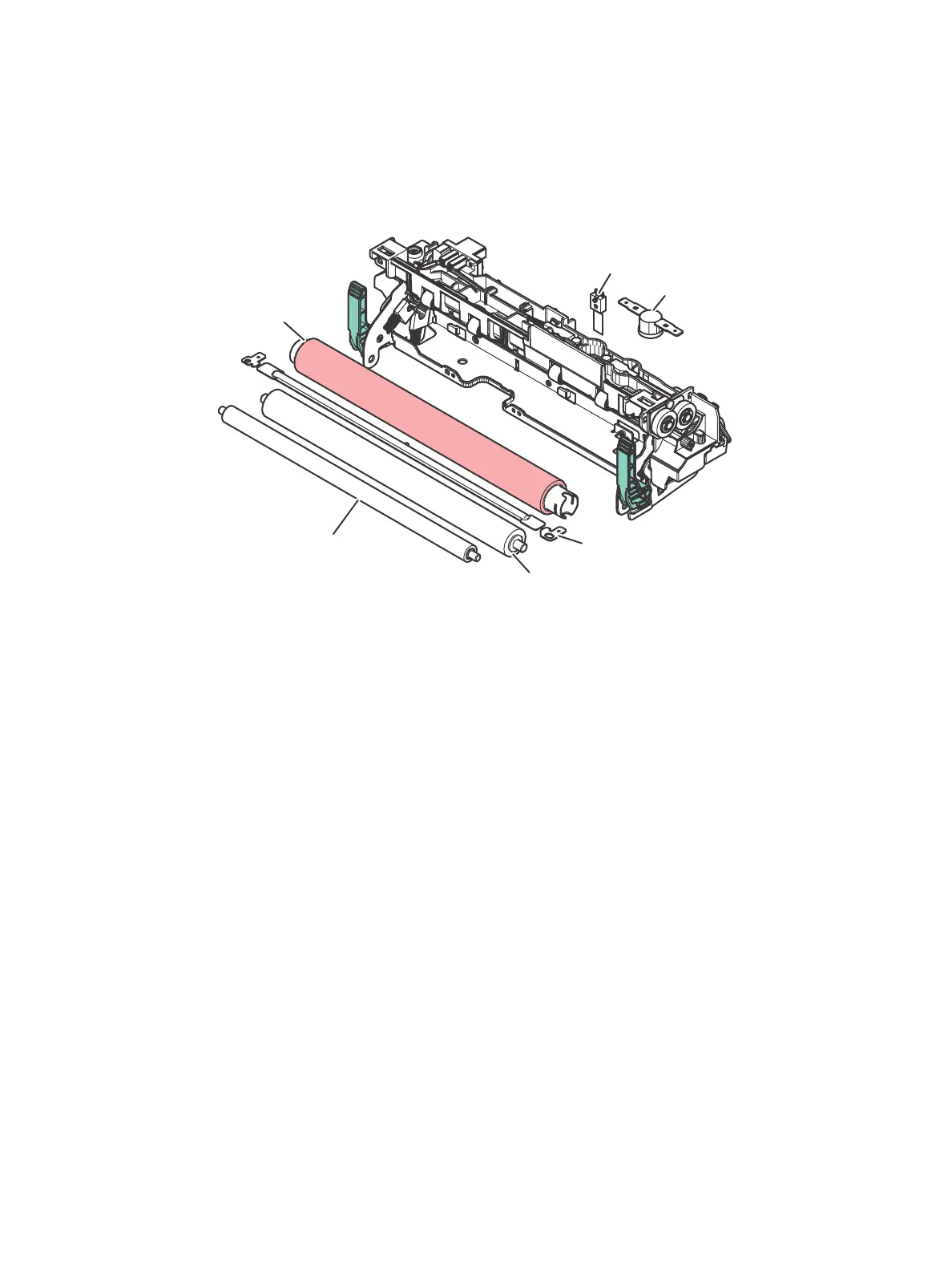

s3320-261
Pressure Roller
Pressure Roller2
Halogen Lamp
Heat Roller
Thermistor
Thermostat

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
