Xerox WorkCentre 3345

General Information
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
1-14

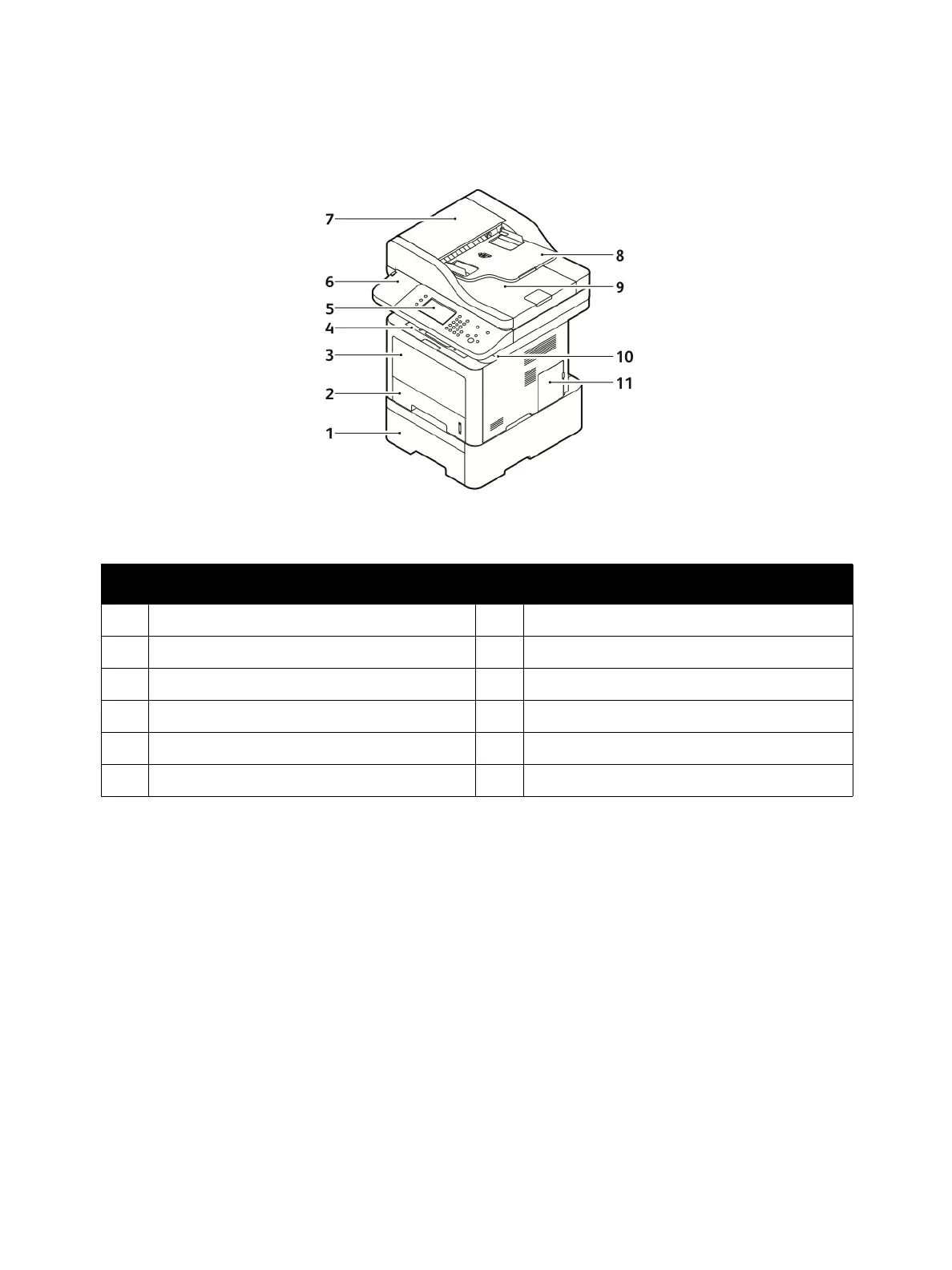

WorkCentre 3335/3345 Front Views
No. Description No. Description
1. Optional Feeder Tray 2 (550-Sheet Capacity) 7. Document Feeder Top Cover
2. Tray 1 (250-Sheet Capacity) 8. Document Feeder Input Tray
3. Bypass Tray 9. Document Feeder Output Tray
4. Output Tray 10. USB Cable Port
5. Control Panel 11. Control Board Cover
6. Optional NFC Enablement Kit
