Xerox WorkCentre 3345 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-62
RDCN 23/23 Gear and DR 19 Swing Gear
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Front Door (page 4-13)
4. Remove the Rear Door (page 4-13).
5. Remove the Right Side Cover (page 4-17).
6. Remove the HVPS (page 4-75).
7. Remove the SMPS (page 4-74).

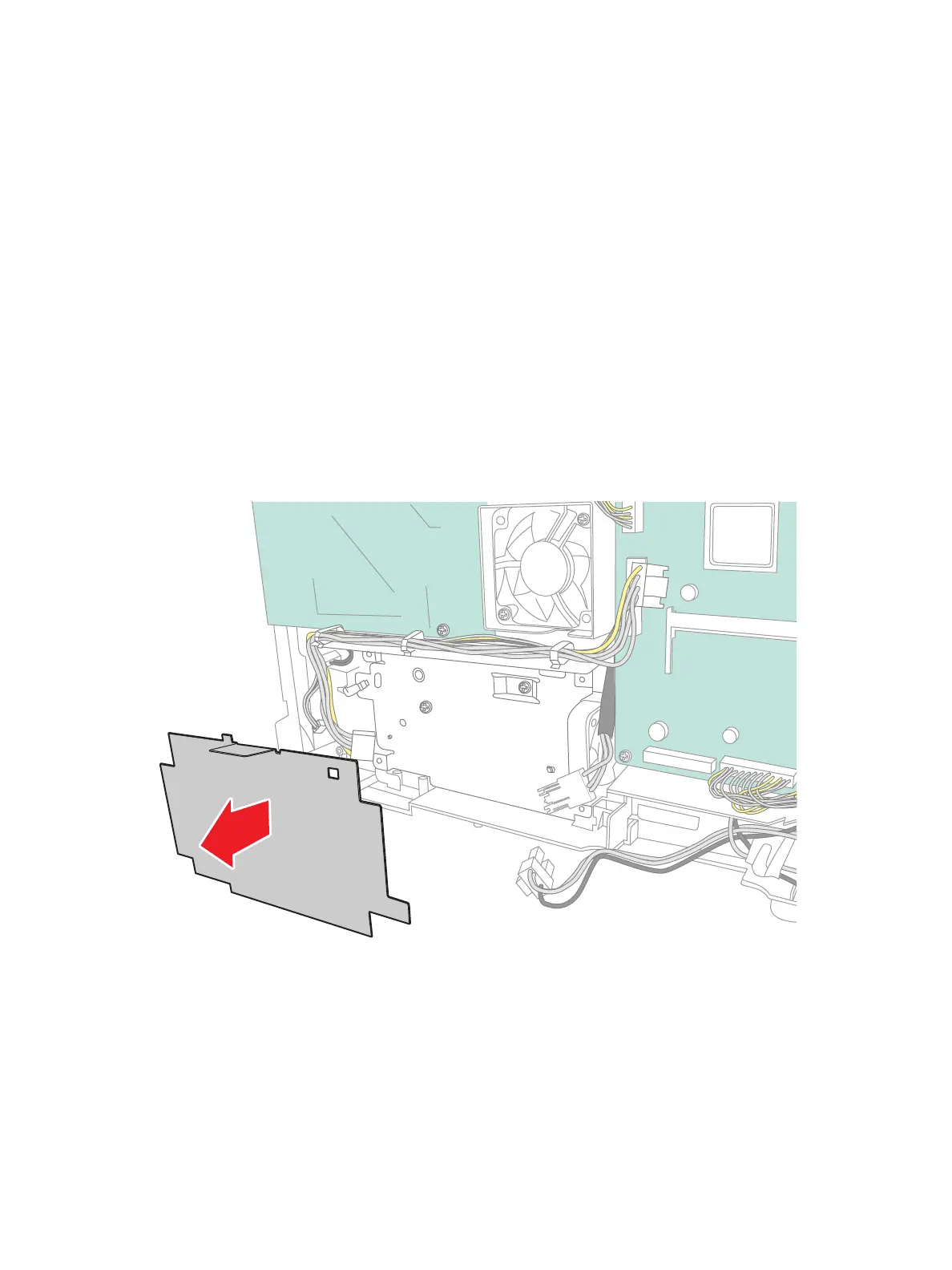

8. Remove the SMPS insulation.
s3320-160
s3320-159

Xerox WorkCentre 3345 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 600 x 600 dpi
Automatic Document Feeder	50 sheets
Duplex Printing	Yes
Monthly Duty Cycle	Up to 80, 000 pages
First Page Out Time (Black)	As fast as 6.5 seconds
Processor	600 MHz
Paper Input (Standard)	250 sheets
Paper Output	150 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Copy Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet, Wi-Fi
Functions	Copy, Print, Scan, Fax, Email
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plugin for Android, Mopria
Media Sizes Supported	Letter, Legal, A4, A5, B5, A6
Fax Transmission Speed	3 seconds per page
Maximum Paper Size	216 x 356 mm
Copy Speed (Black)	Up to 42 cpm
