Xerox WorkCentre 3345

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-129

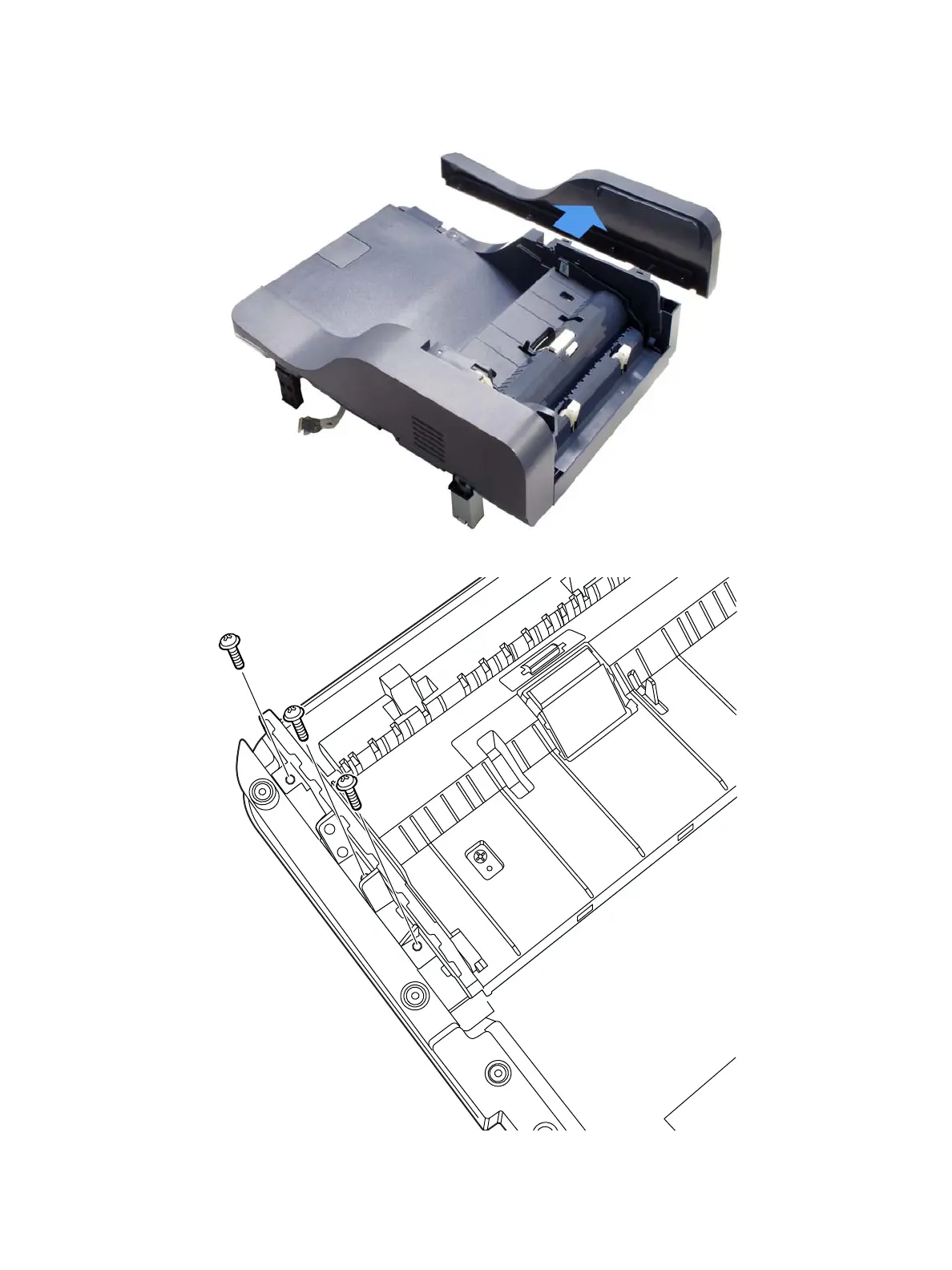

6. Remove the DADF Front Cover (4 screws removed earlier in this procedure).
7. Remove 3 screws (silver, flanged, tap, 10 mm) from the bottom of the DADF.
s3320-112
