Xerox WorkCentre 3345

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-131

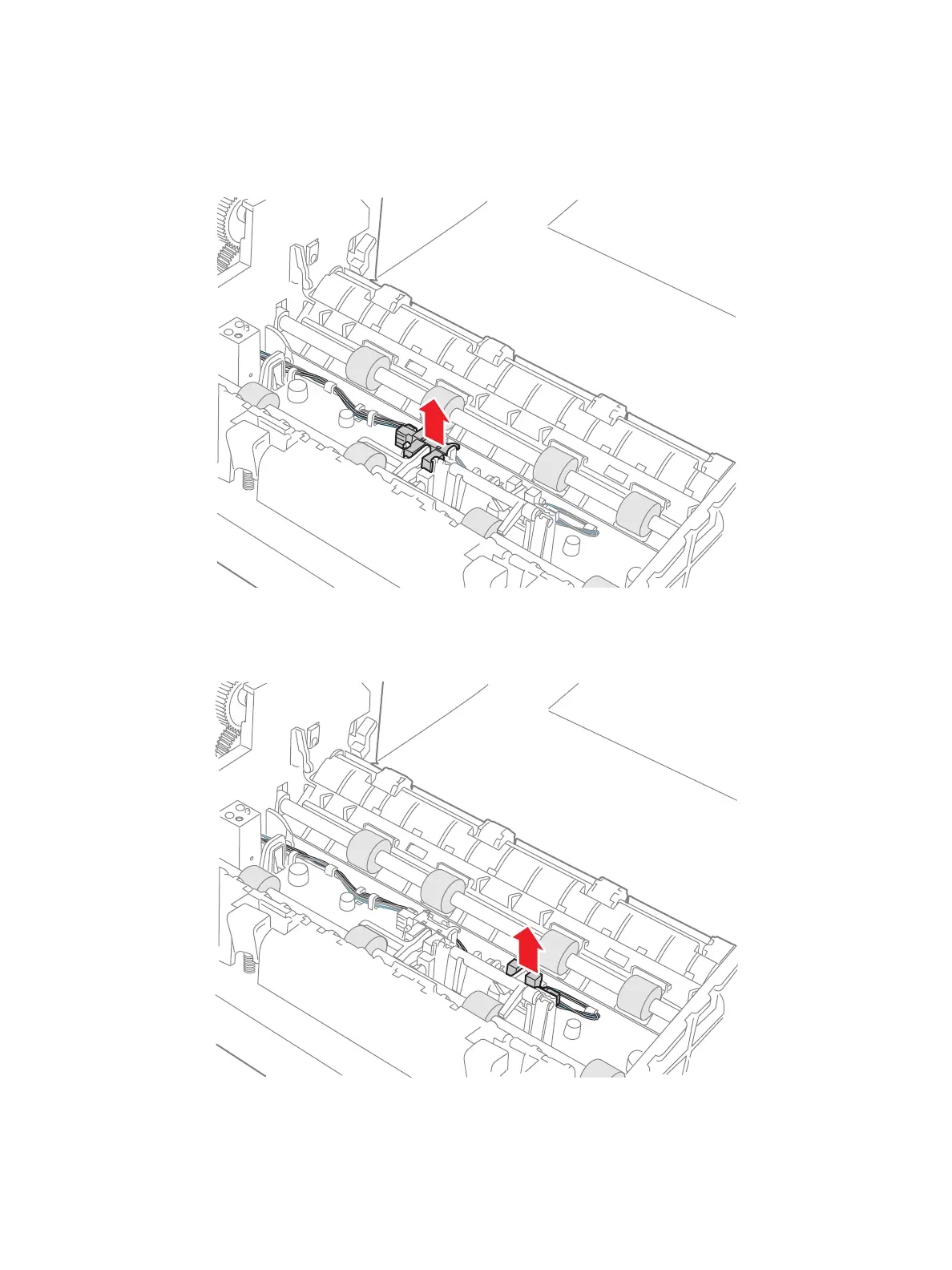

10. Unplug the wire connector of the sensor that is being replaced and remove the sensor. Feed
Sensor (P/J51):
Registration Sensor (P/J52):
s3320-134
s3320-135
