Features
Parts of the Printer
This section includes:
• Front View.................................................................................................................................................................................. 26
• Single-Pass Duplex Automatic Document Feeder ................................................................................................... 27
• Rear View ................................................................................................................................................................................... 27
• Internal Parts............................................................................................................................................................................ 28
• Control Panel ............................................................................................................................................................................ 29

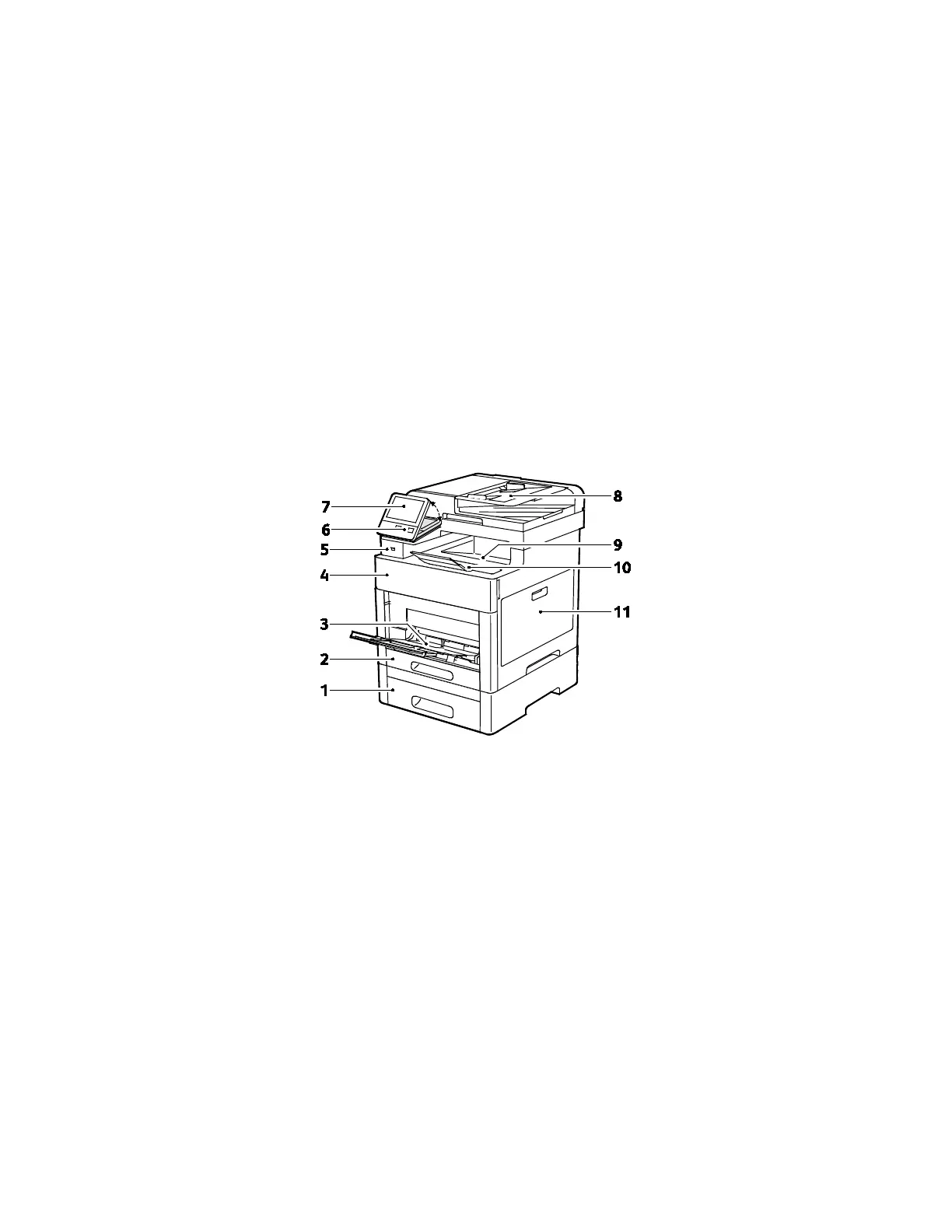

Front View
1. Tray 2, Optional 550-Sheet Feeder
2. Tray 1
3. Bypass Tray
4. Front Door
5. USB Memory Port
6. Power/Wake Button
7. Touch Screen Display
8. Single-Pass Duplex Automatic Document Feeder (DADF)
9. Output Tray
10. Output Tray Extension
11. Right-Side Door
