Xerox WorkCentre 6515 User Manual

Installation and Setup
Connecting to a Wireless Network
A wireless local area network (WLAN) provides the means to connect two or more devices in a LAN
without a physical connection. The printer can connect to a wireless LAN that includes a wireless router
or wireless access point. Before connecting the printer to a wireless network, the wireless router must be
configured with a service set identifier (SSID) and any necessary credentials.
Note: Wireless networking is available only on printers with the optional Wireless Network Adapter
installed.
Installing the Wireless Network Adapter
The optional wireless network adapter plugs in to the back of the control board. After the adapter is
installed, and wireless networking is enabled and configured, the adapter is able to connect to a wireless
network.
To install the Wireless Network Adapter:

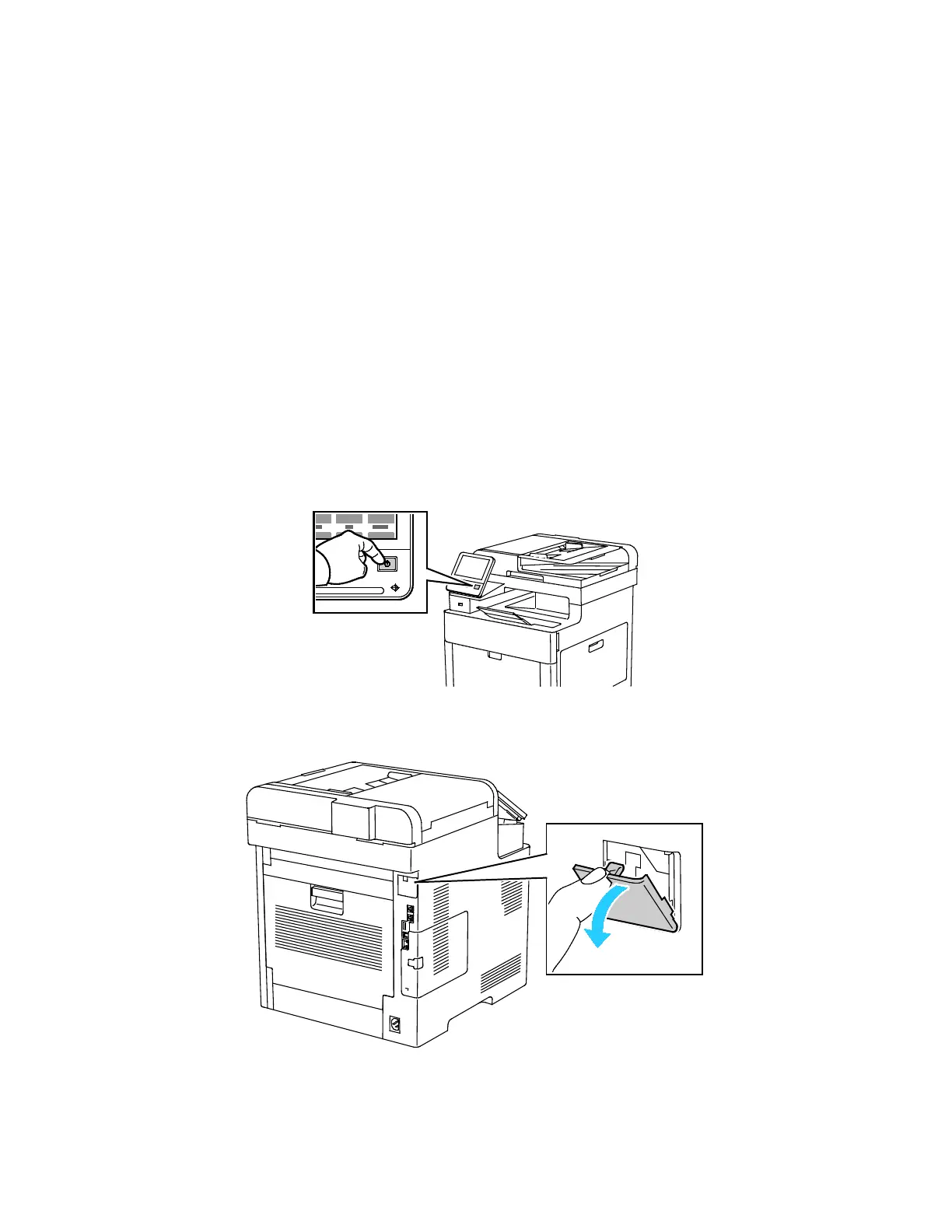

1. Power off the printer.
2. To remove the Wireless Network Adapter Port Cover, press down on the latch, then pull the cover
away from the printer.
42 Xerox
®
WorkCentre
®
6515 Color Multifunction Printer
User Guide

Xerox WorkCentre 6515 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 2400 dpi
Scan Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Fax Resolution	Up to 400 x 400 dpi
Monthly Duty Cycle	Up to 50, 000 pages
Automatic Duplexing	Yes
Functions	Print, Copy, Scan, Fax
Memory	2 GB
Fax Speed	33.6 Kbps
Paper Output	150 sheets
Fax Transmission Speed	3 seconds per page
Standard Paper Capacity	300 sheets
Connectivity	USB, Ethernet
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria, Xerox Print Service Plug-in for Android
Maximum Paper Size	8.5 x 14 inches
Dimensions	420 x 506 x 500 mm
Print Speed	Up to 30 ppm
Paper Input	Bypass Tray: 50 sheets; Tray 1: 250 sheets
