Paper and Media
Loading Labels in Tray 1

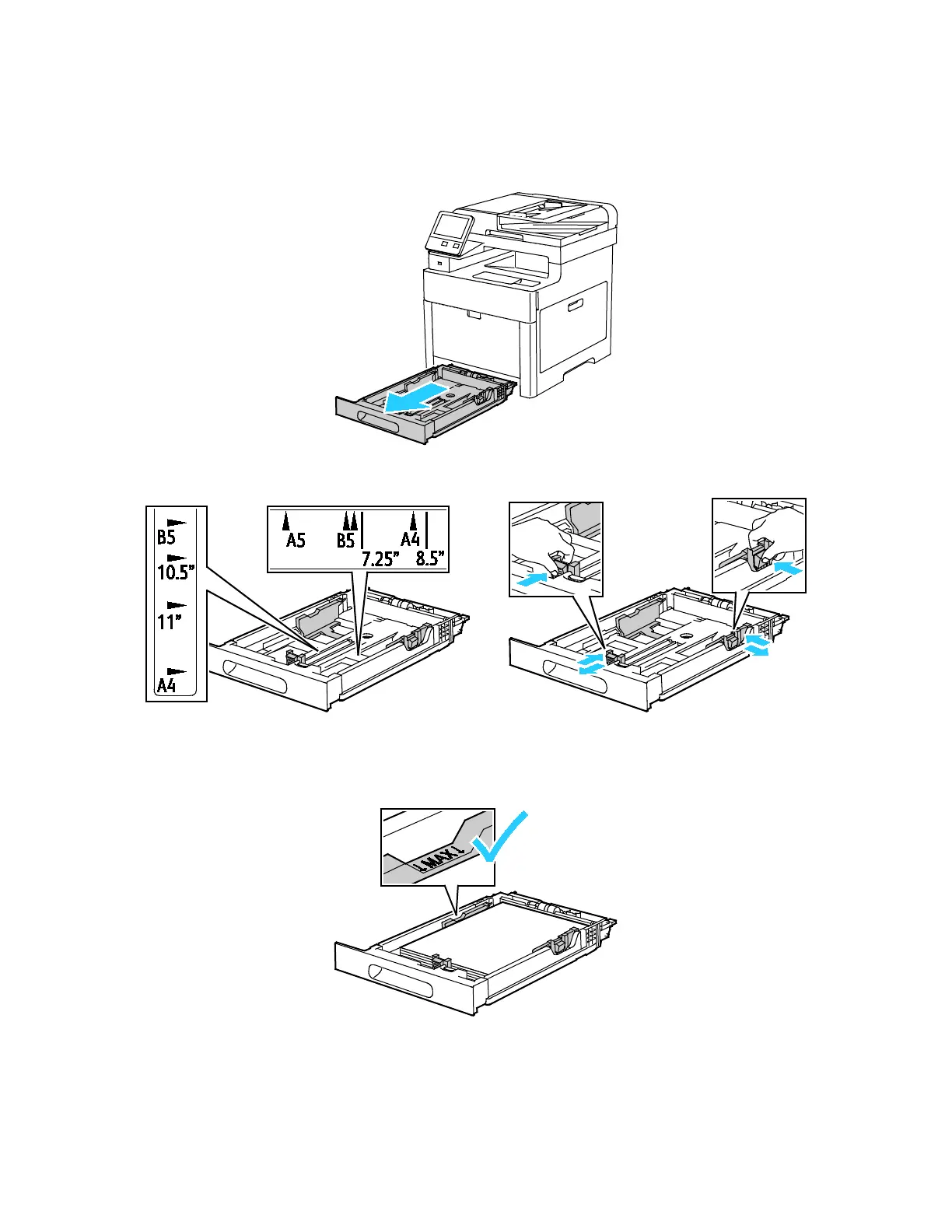

1. To remove the tray from the printer, pull out the tray until it stops, lift the front of the tray slightly,
then pull it out.
2. Adjust the paper length and width guides as illustrated.
3. Load labels in the tray, face up.
Note: Do not load paper above the maximum fill line. Overfilling can cause paper jams.
Xerox
®
WorkCentre
®
6515 Color Multifunction Printer 89
User Guide
