December 2006
4-47
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 8.6
Repairs and Adjustments
6. Remove the ELA HOU - pickup plus assembly, Figure 4.

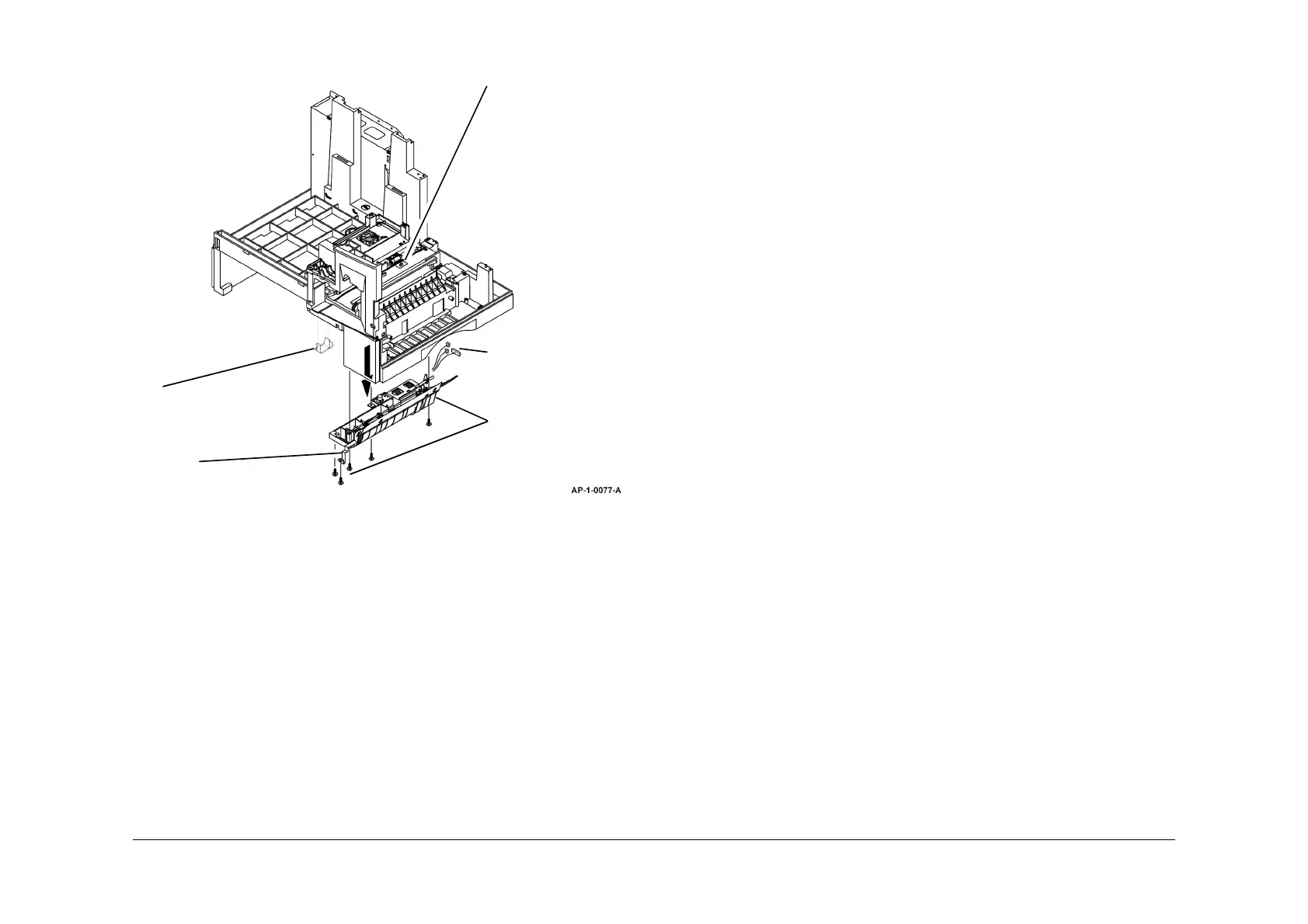

Figure 4 ELA HOU - pickup plus assembly removal
Replacement
Replacement is the reverse of the removal procedure. When reinstalling the MEA unit guide
CST PA assembly, ensure the PMO sheet guide paper, PL 4.25 Item 11 and the mylar strips,
PL 4.25 Item 12 are not damaged.
2
Remove the PMO - guide
paper out.
3
Remove 5 screws, then
the ELA HOU - pickup
plus assembly.
1
Unclip the sensor cover.
4
Release the harnesses.
IPR - GND
input.
To Next Page
