December 2006
4-58
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 14.1
Repairs and Adjustments

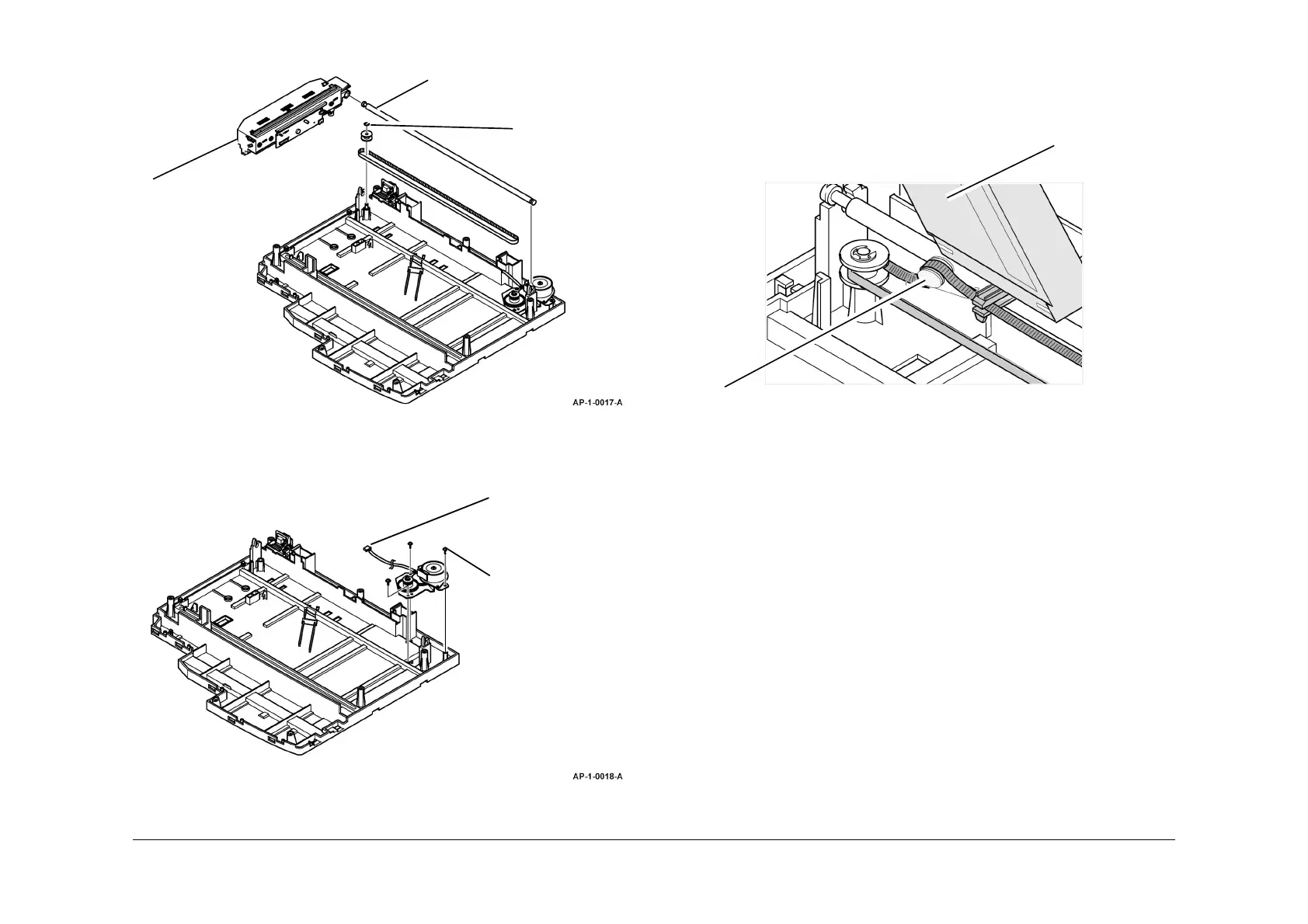

17. Remove the ELA HOU - CCD module, Figure 15.
Figure 15 ELA HOU - CCD module removal
18. Remove the ELA HOU - scan motor, Figure 16.
Figure 16 ELA HOU - scan motor removal
19. Remove the PBA SUB - D SUB, PL 14.11 Item 5.
Replacement
1. Replacement is the reverse of the removal procedure.
2. Ensure that the ELA HOU - CCD module is installed correctly, Figure 17.
Figure 17 ELA HOU - CCD module replacement
3. Ensure the CBF signal - CCD FFC is re-installed correctly onto the ELA HOU - CCD mod-
ule and the PBA main:
• The blue flash on the end of the CBF signal - CCD FFC should face toward the ELA
HOU - CCD module.
• When connected to the PBA main, the blue flash on the other end of the CBF signal
- CCD FFC should face downwards.
2
Remove 1 E-clip,
then the pulley.
3
Remove the shaft CCD.
4
Remove the ELA HOU -
CCD module from the
belt.
1
Unlock the ELA HOU -
CCD module.
1
Disconnect the inline
connector.
2
Remove 3 screws, then
the ELA HOU - scan
motor.
ELA HOU - CCD
module.
Spring ETC - belt.
