December 2006
4-57
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 14.1
Repairs and Adjustments

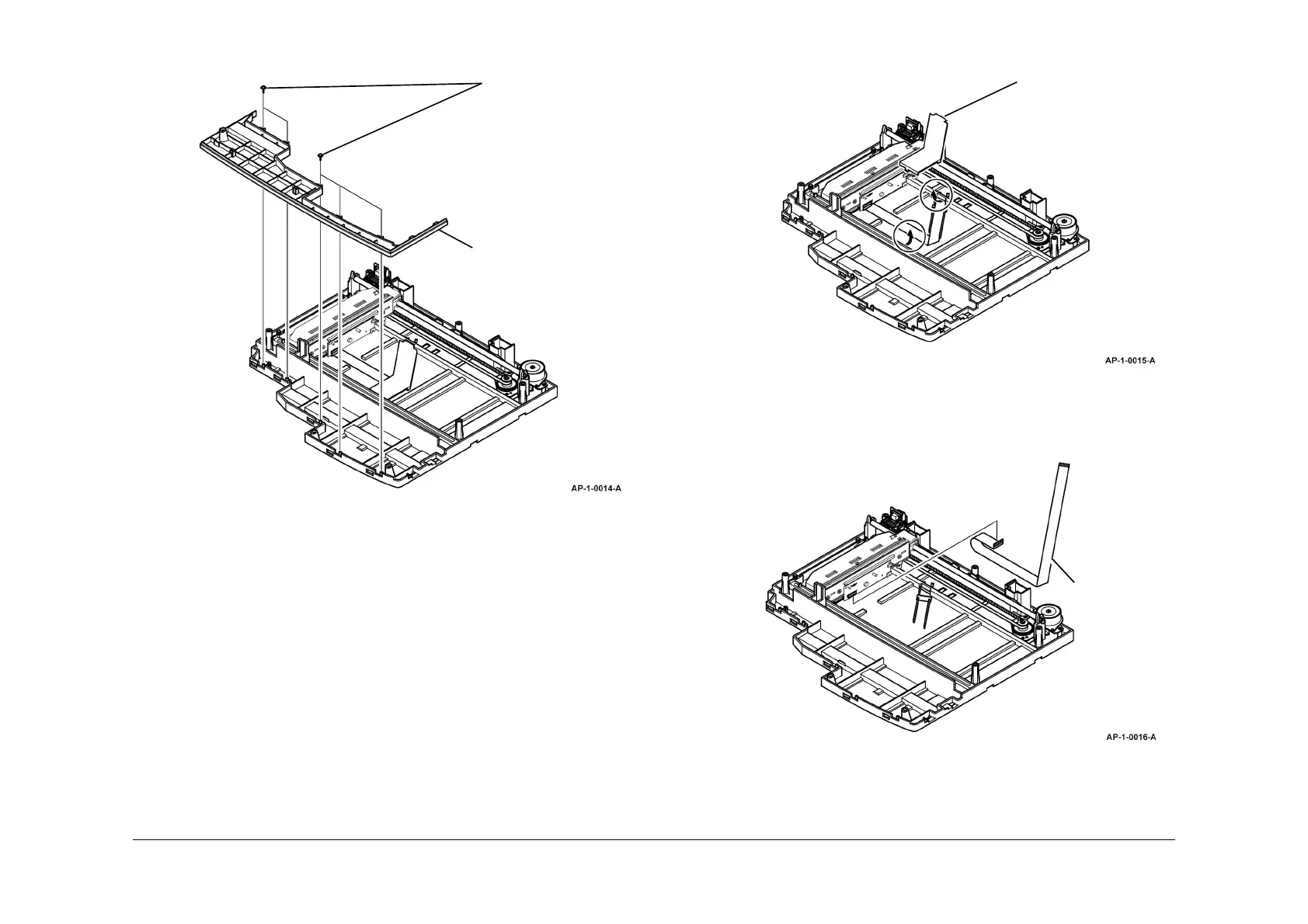

14. Remove the PMO - cover dummy lower, Figure 12.
Figure 12 PMO - cover dummy lower removal
15. Remove the cover M CCD cable, Figure 13.
Figure 13 Cover M CCD cable removal
16. Remove the CBF signal -CCD FFC, Figure 14.
Figure 14 CBF signal - CCD FFC removal
1
Remove 5 screws.
2
Lift the PMO - cover
dummy lower, then side it
forward to remove.
1
Remove the cover M
CCD cable.
1
Remove the
CBF signal -
CCD FFC.
