December 2006
4-56
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 14.1
Repairs and Adjustments

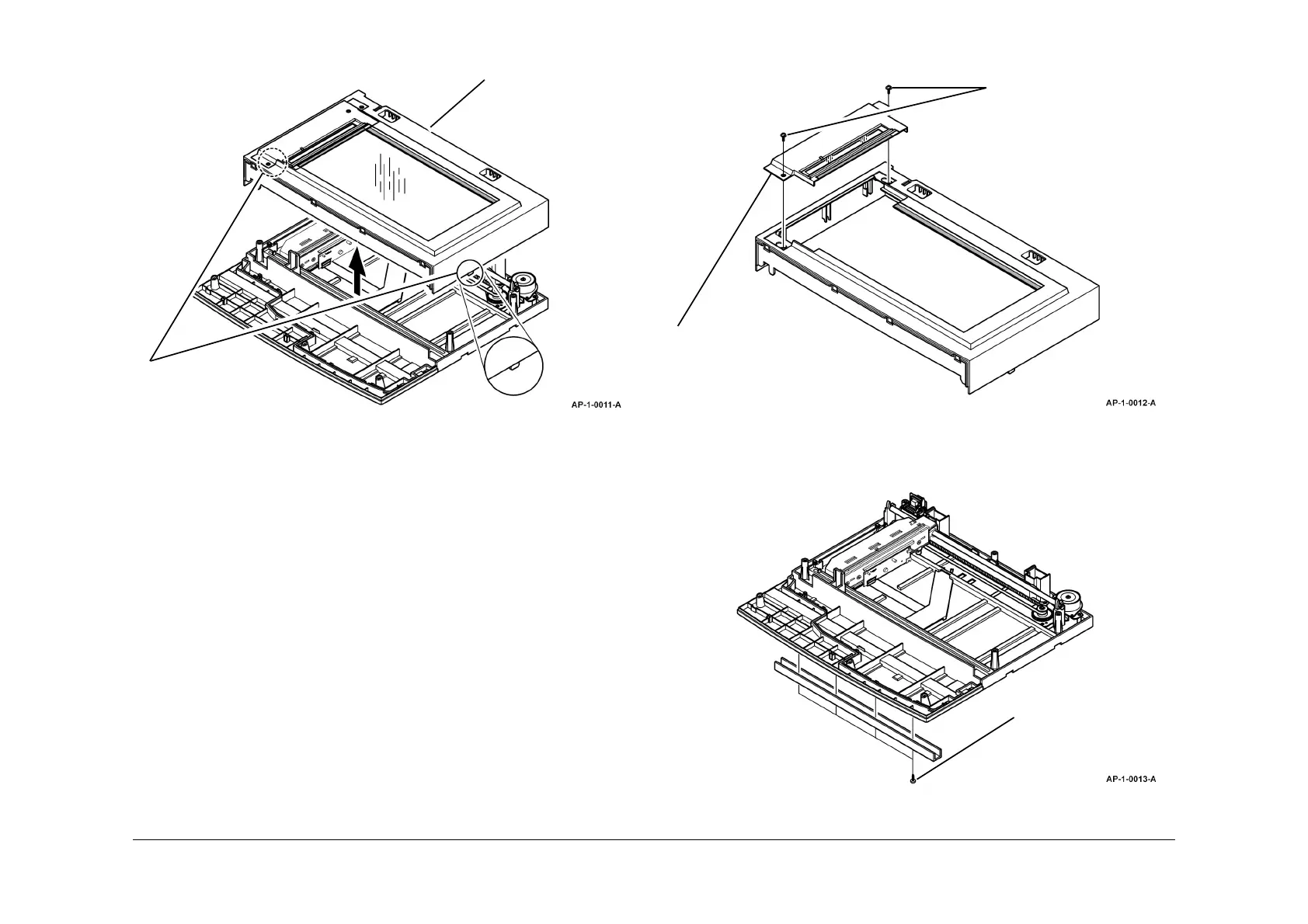

11. Remove the ELA HOU scan upper assembly, Figure 9.
Figure 9 ELA HOU scan upper assembly removal
12. Remove the A/S material dummy upper assembly, Figure 10.
Figure 10 A/S material dummy upper assembly removal
13. Remove the IPR - channel base frame, Figure 11.
Figure 11 IPR - channel base frame removal
1
Unhook both sides of the
ELA HOU scan upper
assembly.
2
Remove the ELA HOU
scan upper assembly.
1
Remove 2 screws.
2
Lift the left hand side of the A/S
material dummy upper assem-
bly, then slide it to the left to
remove.
1
Remove 4 screws, then
the IPR - channel base
frame.
