December 2006
4-55
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 14.1
Repairs and Adjustments

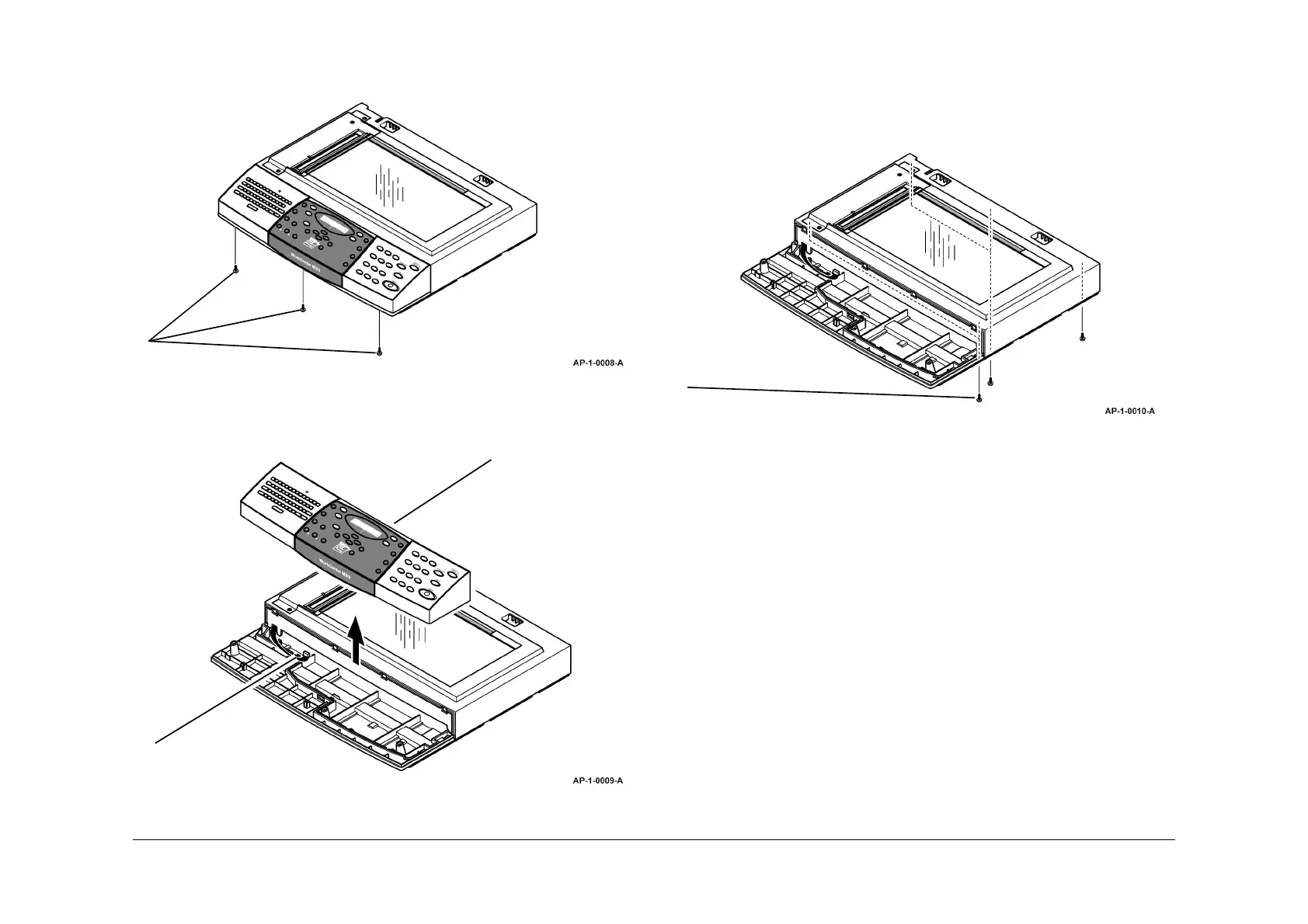

8. Remove the 3 screws securing the ELA HOU OPE assembly, Figure 6.
Figure 6 Screw removal
9. Remove the ELA HOU OPE assembly, Figure 7.
Figure 7 ELA HOU OPE assembly removal
CAUTION
Do not allow the optics cavity to become contaminated. Contamination of the optics cavity can
cause image quality defects.
10. Remove the five screws securing the ELA HOU scan upper assembly, Figure 8.
Figure 8 Screw removal
1
Remove 3 screws.
1
Disconnect CN2.
2
Remove the ELA HOU
OPE assembly.
1
Remove 5 screws.
