ENGINE REMOVAL
5-2

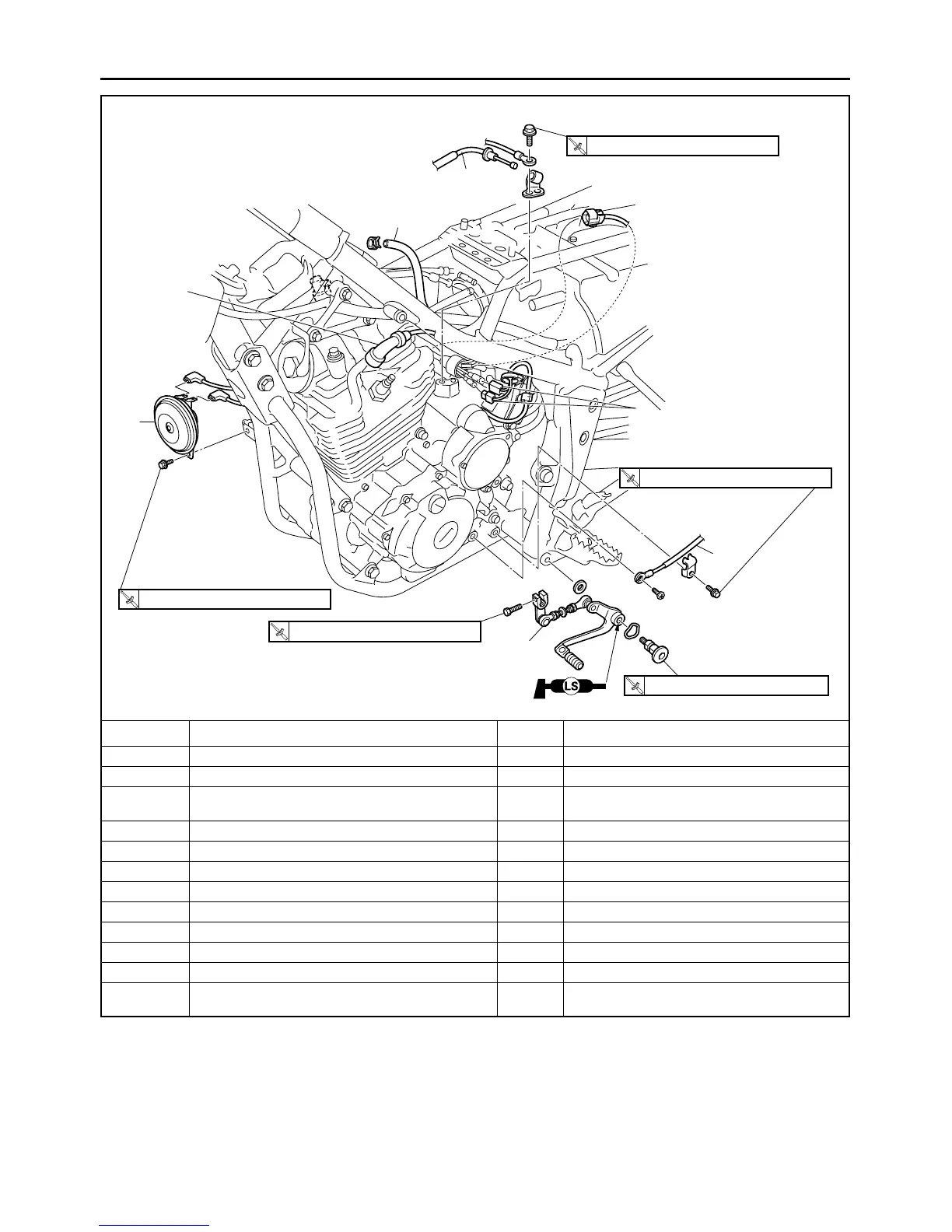

Removing the shift pedal assembly and leads and hoses
Order Job/Parts to remove Q’ty Remarks
Carburetor Refer to “CARBURETOR” on page 6-3.
Drive sprocket Refer to “CHAIN DRIVE” on page 4-57.
Starter motor
Refer to “ELECTRIC STARTER” on page
5-50.
1 Cylinder head breather hose 1 Disconnect.
2 Spark plug cap 1 Disconnect.
3 Clutch cable 1 Disconnect.
4 Pickup coil coupler/stator assembly coupler 1/1 Disconnect.
5 Speed sensor coupler 1 Disconnect.
6 Horn 1
7 Shift pedal assembly 1
8 Neutral switch lead 1 Disconnect.
For installation, reverse the removal proce-
dure.
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
4
8
7
2
1
3
5
6
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
T
R
.
.
30 Nm (3.0 m • kg, 22 ft • Ib)
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
