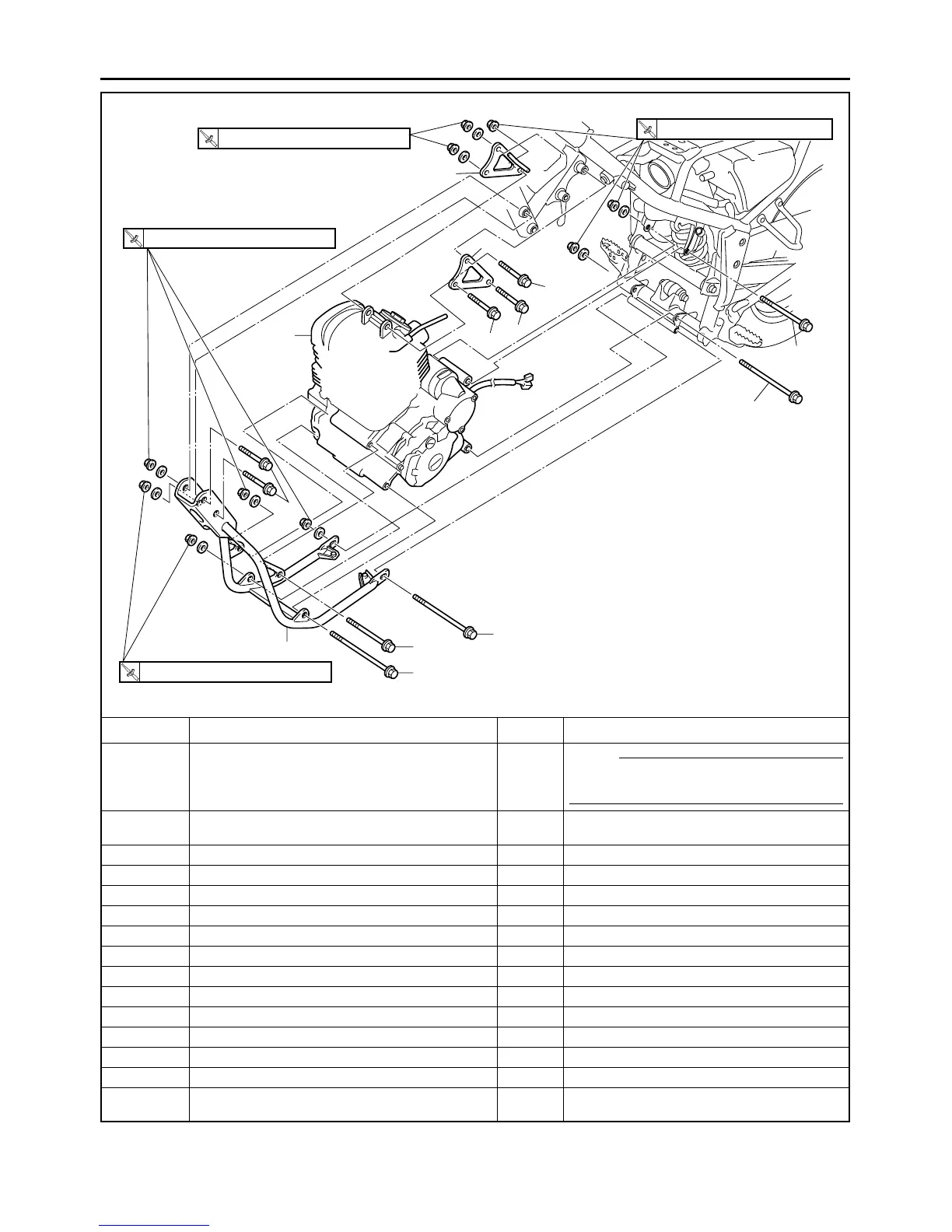

ENGINE REMOVAL
5-3
Removing the engine
Order Job/Parts to remove Q’ty Remarks
NOTE:
Use an appropriate vehicle stand and support
the engine securely.
Drain the engine oil
Refer to “CHANGING THE ENGINE OIL” on
page 3-11.
1 Engine mounting bolt (upper side) 1
2 Engine bracket bolt 2
3 Right engine bracket 1
4 Left engine bracket 1
5 Engine mounting bolts (front upper side) 1
6 Engine mounting bolt (front lower side) 1
7 Down tube bolts (front side) 2
8 Down tube bolts (rear side) 1
9 Down tube 1
10 Engine mounting bolt (rear lower side) 1
11 Engine mounting bolt (rear upper side) 1
12 Engine assembly 1
For assembly, reverse the removal proce-
dure.
