FRONT BRAKE
4-15

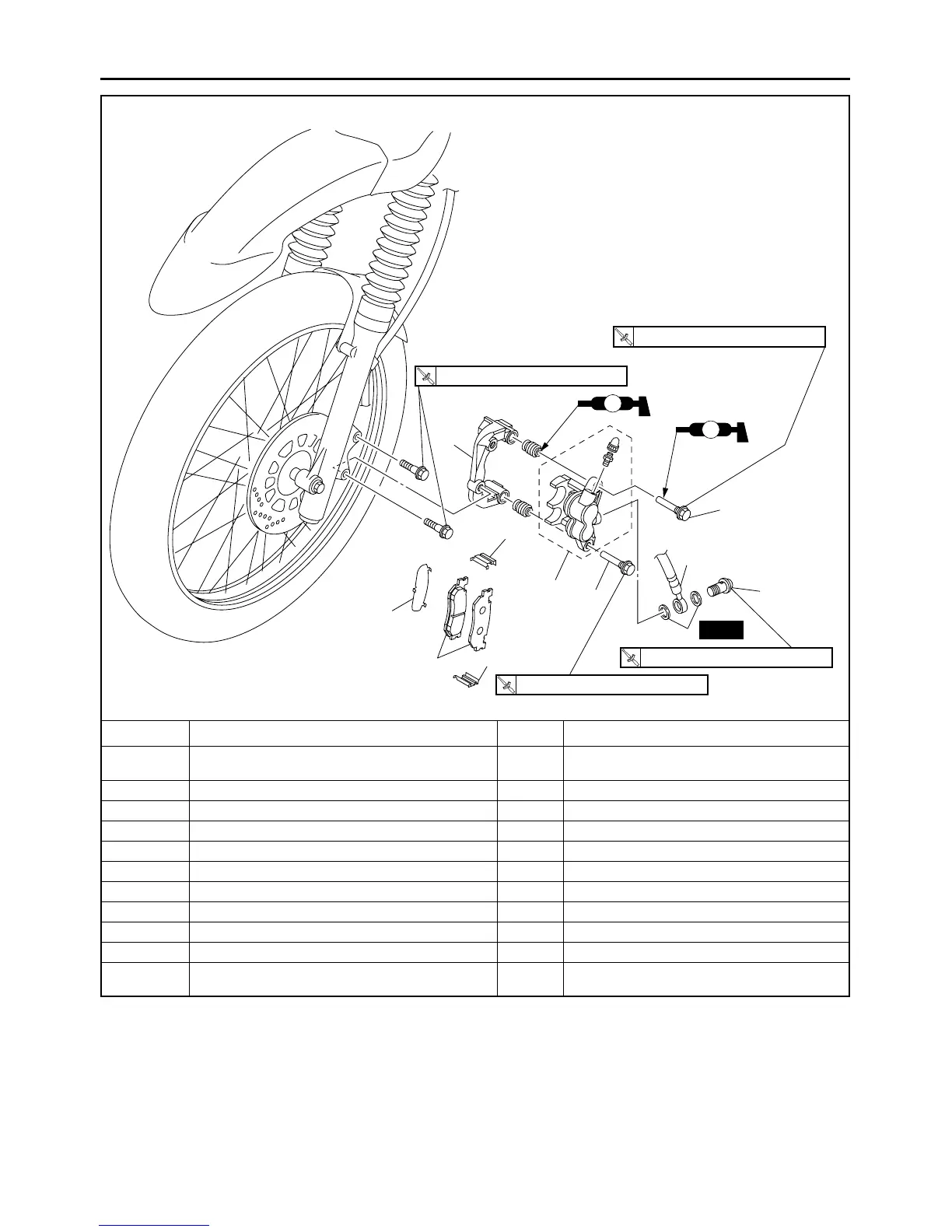

Removing the front brake calipers
Order Job/Parts to remove Q’ty Remarks
Drain the brake fluid
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-19.
1 Union bolt 1
2 Copper washer 2
3 Front brake hose 1
4 Front brake caliper support bolt 2
5 Front brake caliper assembly 1
6 Front brake pad 2
7 Brake pad shim 1
8 Brake pad spring 2
9 Front brake caliper bracket 1
For installation, reverse the removal proce-
dure.
New
S
S
T
R
.
.
40 Nm (4.0 m • kg, 29 ft • Ib)
T
R
.
.
30 Nm (3.0 m • kg, 22 ft • Ib)
8
8
9
5
4
2
1
3
4
6
7
T
R
.
.
32 Nm (3.2 m • kg, 23 ft • Ib)
T
R
.
.
32 Nm (3.2 m • kg, 23 ft • Ib)
