B95W
Safety
20 / 306
3
03_Sicherheit_en.fm - V 0.1 - 1.8.17
46

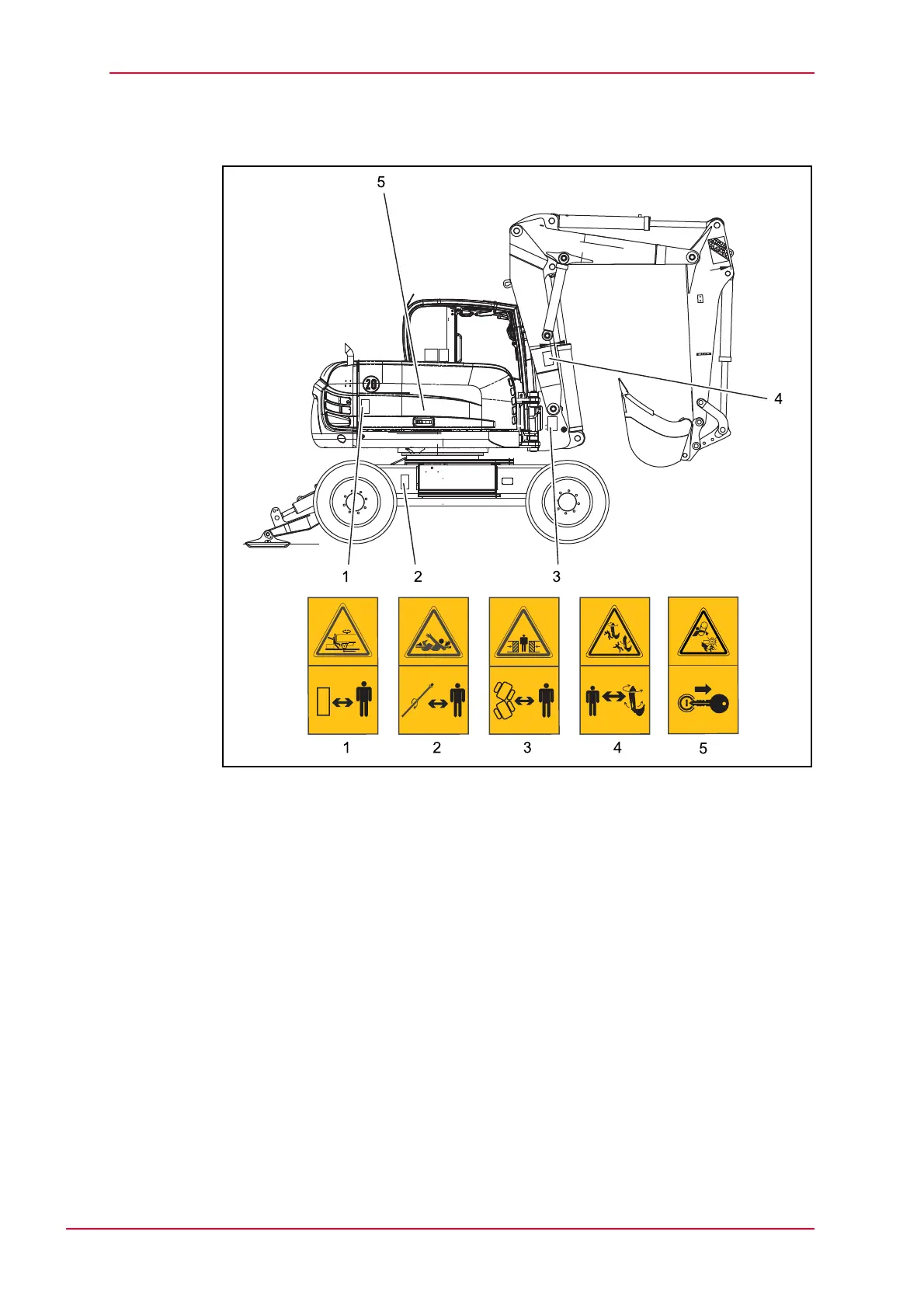

Fig. 3-2 Locations of safety signs – side view from right
1 Risk of fatal injury from the rotating uppercarriage
2 Risk of arms and hands becoming entangled in rotating parts
3 Risk of injury from the articulated area
4 Risk of injury from the excavator arm or the dipper
5 Risk of arms and hands becoming entangled in rotating parts
