Apportionable driving with rocker acceleration pedal (excavating mode)
The “additional accelerator pedal for apportionable driving” is used for applications
in which the maximum hydraulic power of the work attachment is demanded by
the excavator and the excavator must simultaneously be shifted with great
regulation.
The travel direction and travel speed are controlled by a foot rocker in this case.

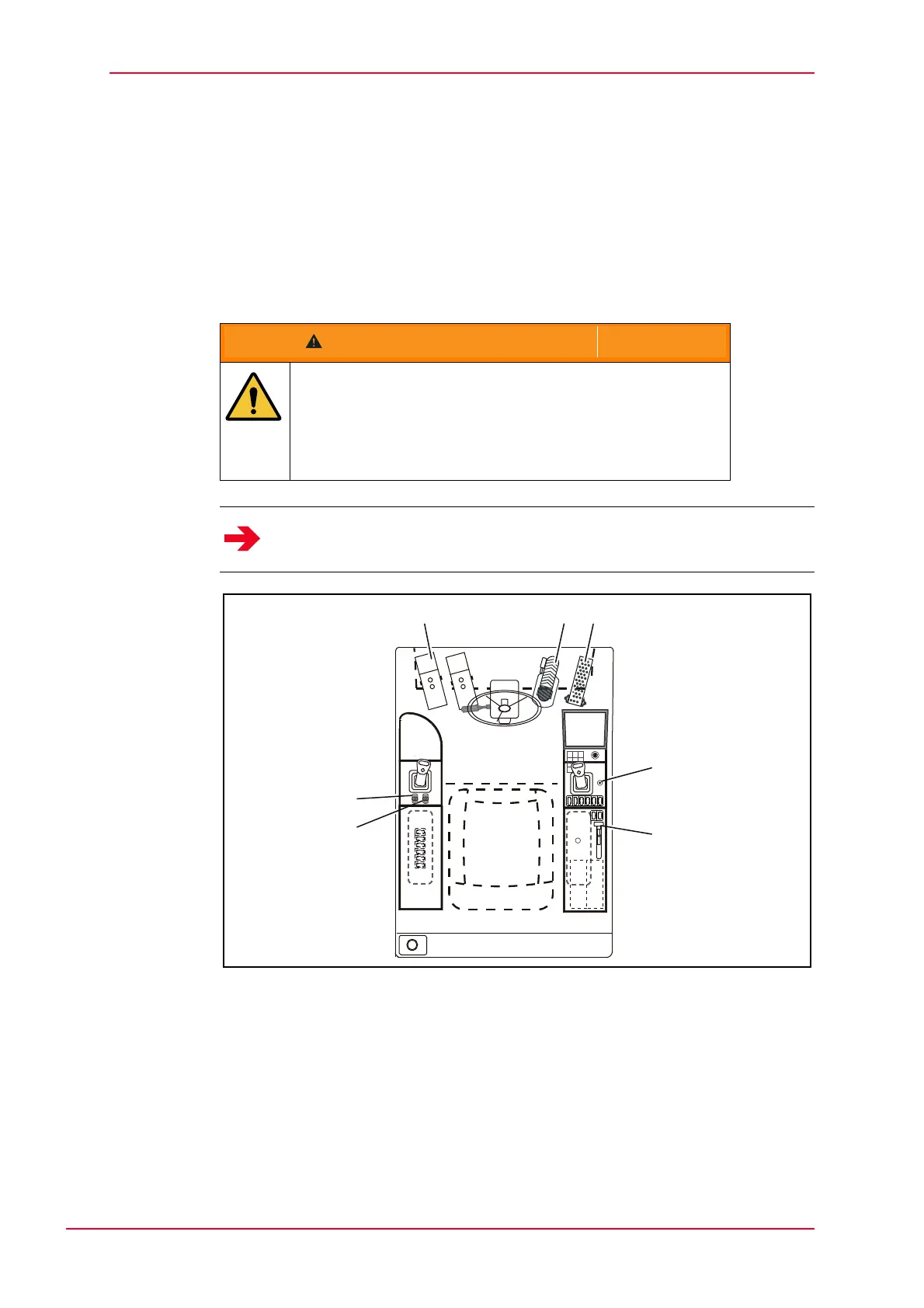

Fig. 7-8 Travel
1 Apportionable driving
2 Service brake/excavator brake
3 Accelerator pedal
4 Move forwards/backwards
5 Engine speed setting (manual throttle)
6 Right-hand support
7 Left-hand support
Danger due to incorrect operation
Switching to normal mode while actuating the manual
throttle can lead to serious injury with fatal consequences.
Z First put the manual throttle into the idle position, then switch
back to normal mode with the direction of travel switch.
Notice
When working hydraulics are deactivated, the “additional acceleration
pedal” is without functionality.
13
4
5
6
7
2
