Actuation – auxiliary control circuit 2 (optional)
Operating lever
for auxiliary
control circuit 2
(3)
Depending on the attached additional tool the pedal functions for the auxiliary
control circuit (3) will vary:
• Operating the grab
• Open and close grab
• Rotate grab
Possible additional tools are:
• Sorting grab
• Mowing bucket
•Hammer
I

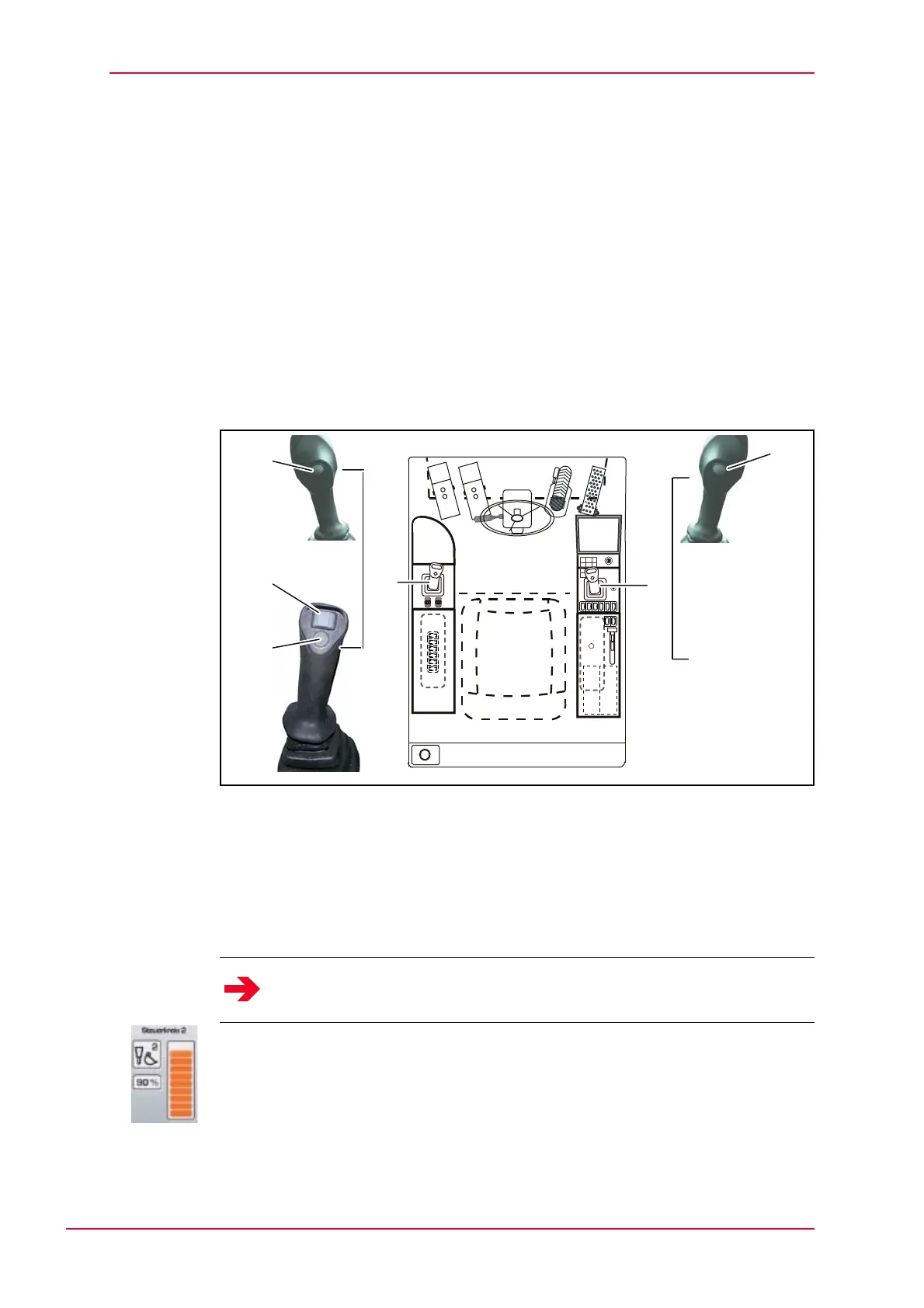

Fig. 7-21 Operating auxiliary control circuit 2
1 Joystick - excavator equipment right
2 Continuous operation for additional control circuit (save key)
3 Joystick - excavator equipment, left
4 Signal horn
5 Actuate dial for auxiliary control circuit 2
6 Slewing pressure switch
Operating the
hammer
Set max. available oil volume for auxiliary control circuit 2 on the display.
J See chapter 5.3.4 “Display”.
Use the dial (5) on the left-hand joystick to control the hammer precisely.
Notice
The mounting and operating instructions of the hydraulic rock breaker
manufacturer must be observed.
